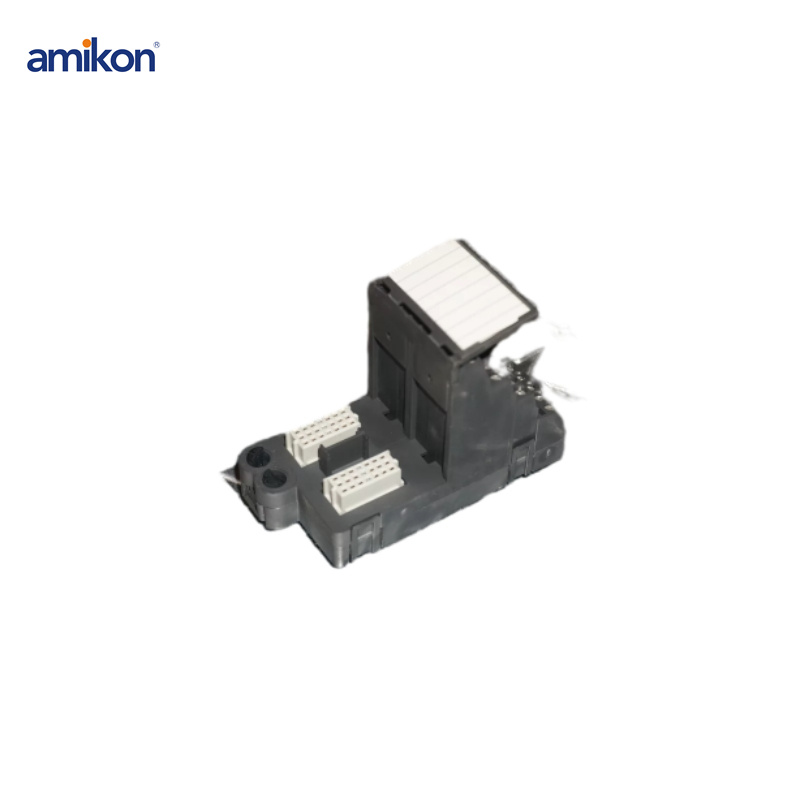

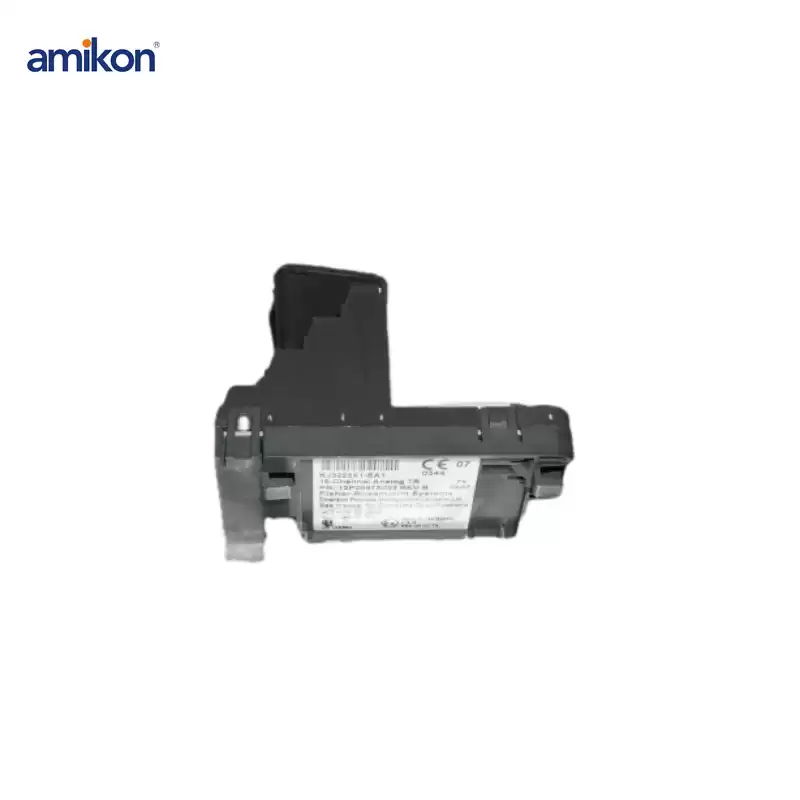

Emerson DeltaV KJ3223X1-EA1 KJ4001X1EA1 ANALOG TERMINAL BLOCK
|
Technical Specifications
|
Details
|
|
Model Number
|
KJ3223X1-EA1
|
|
Part Number
|
KJ4001X1EA1
|
|
Product Type
|
Analog Terminal Block
|
|
Brand
|
Emerson DeltaV
|
|
System Compatibility
|
DeltaV Distributed Control System (DCS)
|
|
Input/Output Type
|
Analog Input/Output (I/O)
|
|
Number of Channels
|
8 or 16 Analog Channels
|
|
Signal Type
|
4-20 mA, 0-10V DC
|
|
Connection Type
|
Screw Terminal
|
|
Power Supply Voltage
|
24V DC
|
|
Current Rating
|
≤ 1 A per channel
|
|
Mounting Type
|
DIN Rail or Panel Mount
|
|
Operating Temperature Range
|
-40°C to 70°C
|
|
Storage Temperature Range
|
-40°C to 85°C
|
|
Humidity Range
|
5% to 95% non-condensing
|
|
Dimensions
|
140 mm x 100 mm x 50 mm (H x W x D)
|
|
Weight
|
0.5 kg
|
|
Warranty
|
12 Months
|
If you have any questions , please contact me!
Email Skype WhatsApp Wechat
sales17@amikon.cn +86 189 6519 6563 +86-189 6519 6563 Amikonplc
The Emerson DeltaV KJ3223X1-EA1 KJ4001X1EA1 ANALOG TERMINAL BLOCK is a critical component designed for seamless integration into DeltaV systems.
It enables reliable communication between DeltaV controllers and other serial-based devices.
This module supports various serial communication protocols, allowing for enhanced data transfer and real-time system monitoring.
Product Advantages
Baud Rate:
The baud rate is user-configurable, supporting speeds from 9600 bps to 115.2 kbps, ensuring compatibility with a wide range of serial devices.
Port Configuration:
The module has two configurable serial ports, allowing the user to set communication parameters, including baud rate, parity, stop bits, and data bits, to match the requirements of the connected devices.
Galvanic Isolation:
The module features 1500V galvanic isolation between the system and the serial ports, providing protection against electrical surges and noise, ensuring system reliability in harsh industrial environments.
System Integration:
Fully integrated with the DeltaV DCS, the module allows for easy configuration and monitoring through the DeltaV Explorer and DeltaV Control Studio software. It supports real-time data exchange between DeltaV controllers and external devices such as PLCs, RTUs, and sensors.
