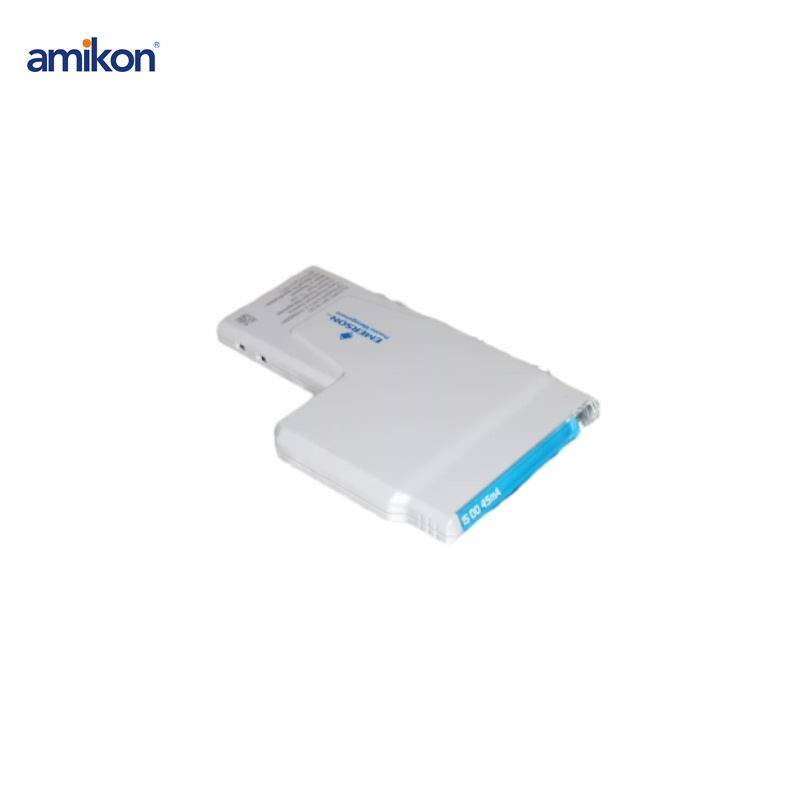

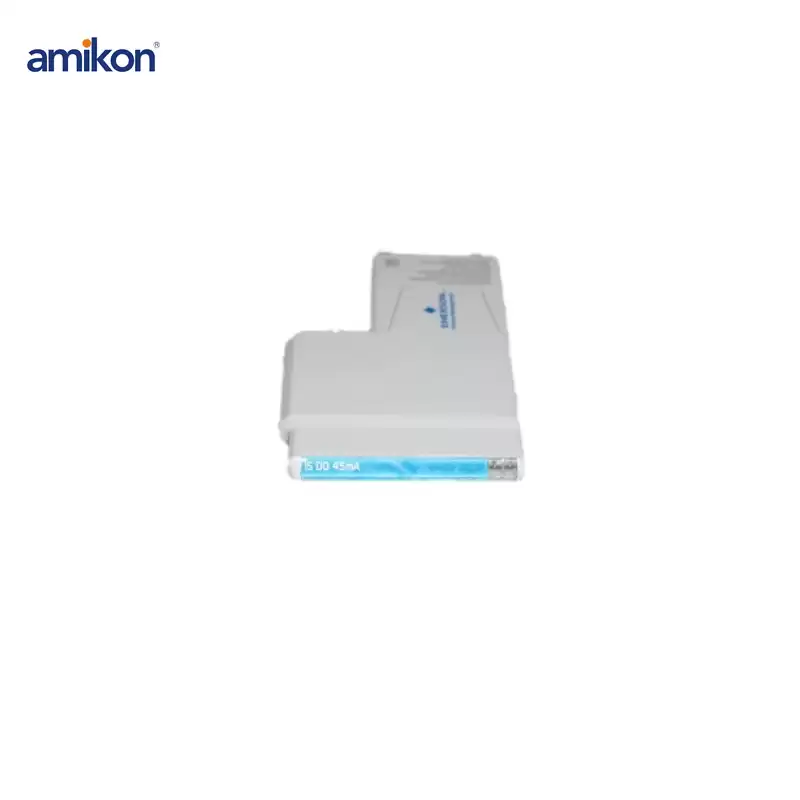

The Emerson DeltaV KL3104X1BA1 12P5545 Digital Output CHARM (Characterization Module) is a versatile, high-performance module designed to interface with field devices in a DeltaV distributed control system (DCS).
The Digital Output (DO) CHARM provides reliable digital signal output for controlling actuators, solenoids, and other equipment in process automation environments.
The CHARM technology offers simplified installation, flexible I/O, and high scalability for modern control systems.
Product Specifications
Input Channels: 16 analog inputs
Input Type: Differential or single-ended
Input Range: ±10V, ±5V, 0–5V, 0–10V
Resolution: 16-bit
Input Impedance: >1 MΩ (voltage inputs)
Accuracy: ±0.1% of full scale
Isolation: 1500V AC channel-to-bus and channel-to-channel
Power Supply: 24V DC (nominal)
Power Consumption: 3.5 W maximum
HART Compatibility: Supports HART protocol for enhanced device communication
Baud Rate: 1200 bps
Device Communication: Point-to-point and multidrop configurations
Single-Channel Digital Output:
Controls one digital output per CHARM, allowing precise control over individual devices.
Simplified Wiring:
CHARM technology reduces wiring complexity by combining signal processing, termination, and diagnostics into a single module.
Plug-and-Play Design:
Hot-swappable and easily integrated into existing DeltaV systems for flexible installation and configuration.
Integrated Diagnostics:
Built-in diagnostics provide real-time monitoring and alarm management for better system reliability and troubleshooting.
Compact and Modular:
Compact form factor allows for efficient use of panel space, with scalable modular design to adapt to system growth.
DeltaV Integration:
Seamlessly integrates with the DeltaV system for configuration and control through DeltaV Explorer and DeltaV Control Studio.
