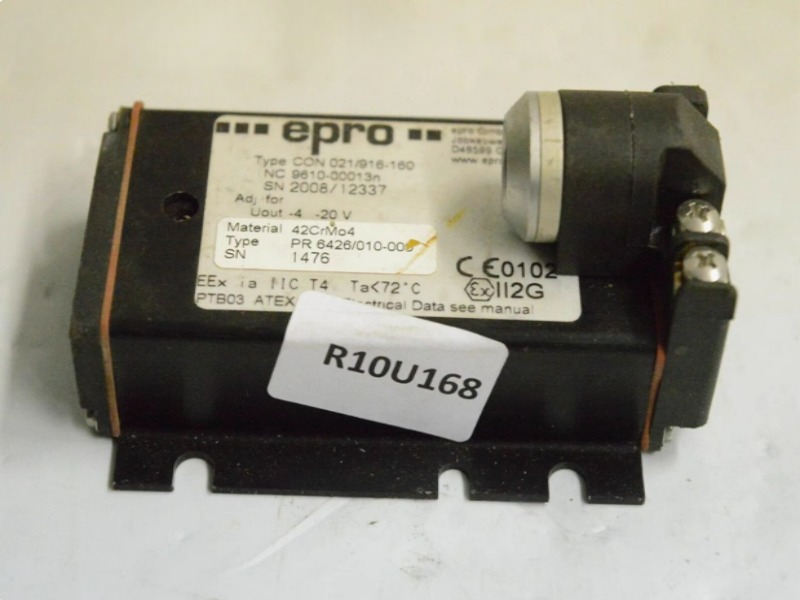

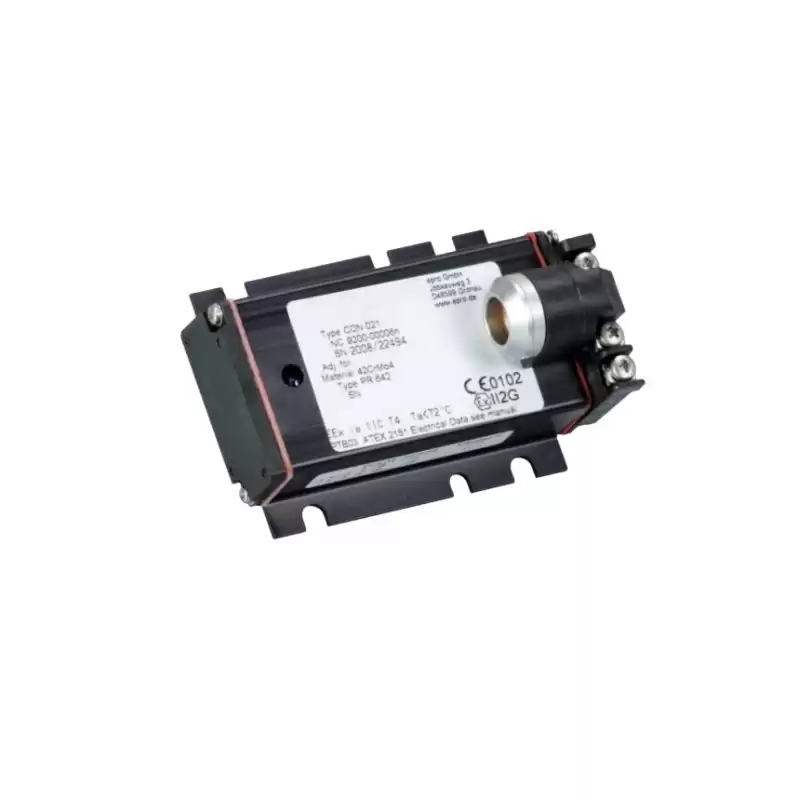

EPRO CON021/916-160 Eddy Current Signal Converter
The CON021/916-160 Eddy Current Signal Converter is designed for critical turbo machinery applications such as steam, gas and hydro turbines, compressors, pumps and fans to measure radial and axial shaft displacement, position, eccentricity and speed/key.
The signal converters CON021/916-160 in connection with eddy current sensors of type PR 6422/.. to PR 6426/ serve the measurement of static and dynamic displacements.
Applications with such systems can be found in different industrial areas and laboratories.
Due to the contactless measuring principle, the rugged construction and the resistance against aggressive media, the sensors can be operated with these converters which are optimally suitable for the use at all kinds of turbo machinery.
Epro offers a wide range of products for measuring and monitoring.
Measuring quantities are e.g.:
• Air-gaps between rotating and static parts
• Vibrations of machine shafts and housing parts
• Shaft-dynamic and eccentricity
• Deformation and deflection of machine parts
• Axial and radial shaft displacement
• Abrasion wear and position measurements at thrust bearings
• Thickness of oil films in bearings
• Differential expansion
• Housing expansion, valve position
Construction and dimensions of measuring amplifier and relevant sensors apply to international standards, e.g. API 670, DIN 45670, ISO 10817 part 1.
At connection via safety barriers, sensors and converters may also be operated in hazardous areas.
The certificate of conformity according to the European standard EN 50014/50020 has been submitted.
| Dynamic Performance |
| Frequency Range (-3 dB) |
0 to 20000 Hz |
| Rise Time |
<15 µs |
NOTE: Designed for PR6422, PR6423, PR6424, PR6425, PR6426, PR 6453
For extended range use: CON021/91x-xxx
PR6425 always requires extended range converter |
|
| Environmental |
| Operating Temperature Range |
-30 to 100°C (-22 to 212°F) |
| Shock and Vibration |
5g @ 60 Hz @ 25°C (77°F) |
| Protection Class |
IP20 |
| Power & Electrical |
| Supply Voltage Range |
-23V to -32V (Output Range -4V to -20V) |
| |
-21V to -32V (Output Range -2V to -18V) |
| Physical |
| Housing Material |
LMgSi 0.5 F22 |
| Weight |
~120 grams (4.24 oz) |
| Mounting |
4 Screws M5x20 (Included in Delivery) |
| Connections: Transduer |
Self-Locking Lemo-Plug |
| Supply/Output |
Screw Terminal Type (max.1.5mm2,wire) |
