Emerson EPRO CON021/916-200 Eddy Current Signal Converter

The signal converters CON021/916-200 in connection with eddy current sensors of type PR 6422/.. to PR 6426/ serve the measurement of static and dynamic displacements.

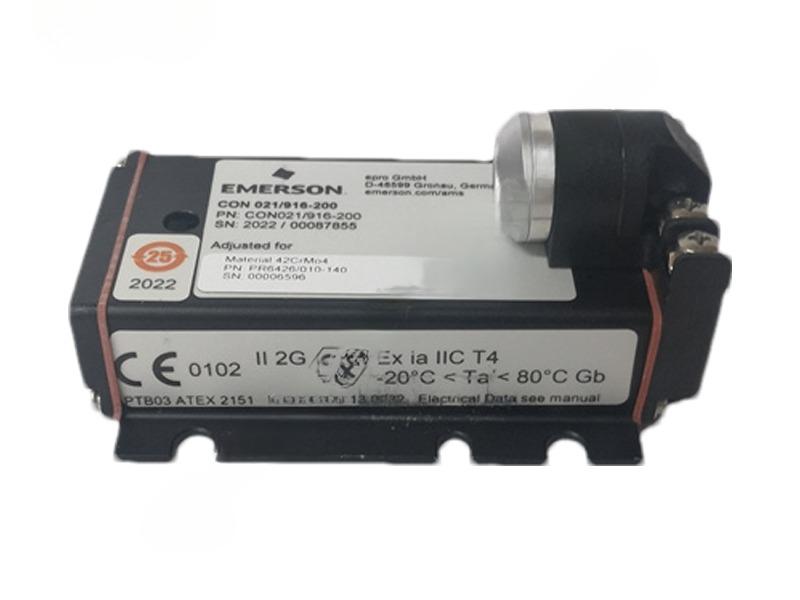

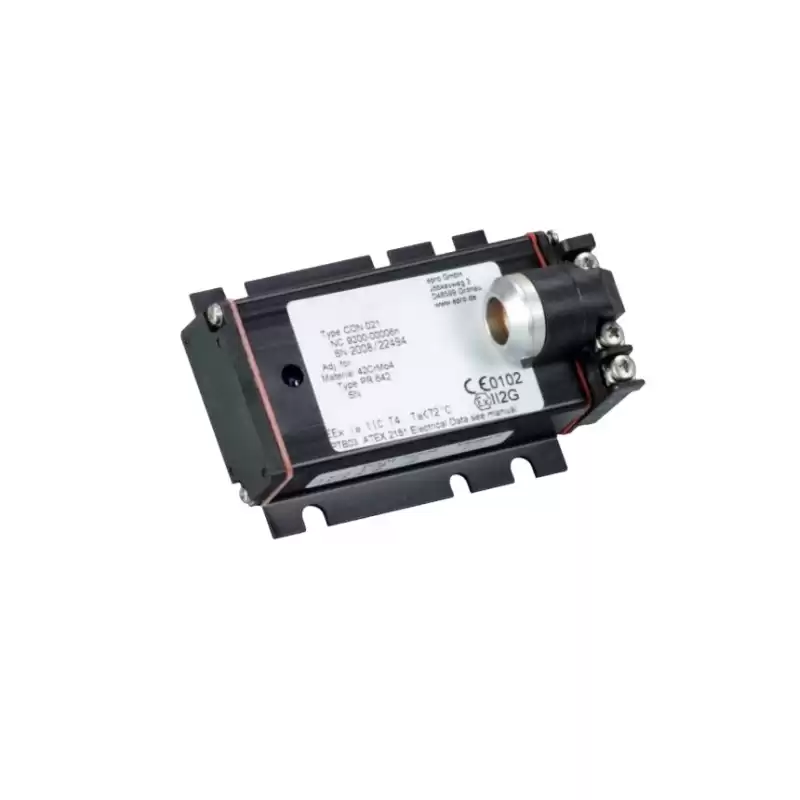

EPRO CON021/916-200 Eddy Current Signal Converter





The EPRO CON021/916-200 converters are available in different constructions to meet various requirements.These type of sensors measure both vibration and the distance between sensor tip and monitored rotating machine part. The measuring chain consists of a sensor, a cable and a converter and this chain is calibrated together.



Since all converters contain the same electronic circuits, each converter may be operated with each transducer. For the use with standard measuring ranges converters and / or transducers may be interchanged without new adjustment. Connection of supply voltage and signal output is made via cage

clam respectively screw terminals. The transducer connection is made either by means of a self locking Lemo plug or via cage clam- respectively screw terminals for transducers with open cable ends.



All transducers are provided for combination with the converters for use in explosive ranges (with the former barriers specified for this).



The certificate of conformity according to the European standards EN 50014 and EN 50020 is available at epro.



Dynamic Performance
Frequency Range (-3 dB) 0 to 20000 Hz
Rise Time <15 µs
NOTE: Designed for PR6422, PR6423, PR6424, PR6425, PR6426, PR 6453

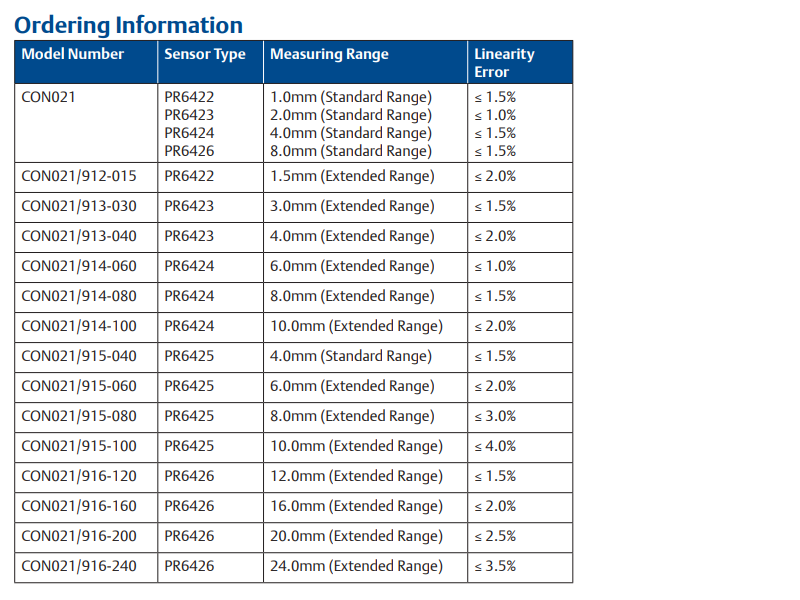

For extended range use: CON021/91x-xxx
PR6425 always requires extended range converter
Environmental
Operating Temperature Range -30 to 100°C (-22 to 212°F)
Shock and Vibration 5g @ 60 Hz @ 25°C (77°F)
Protection Class IP20
Power & Electrical
Supply Voltage Range -23V to -32V (Output Range -4V to -20V)
  -21V to -32V (Output Range -2V to -18V)
Physical
Housing Material LMgSi 0.5 F22
Weight ~120 grams (4.24 oz)
Mounting 4 Screws M5x20 (Included in Delivery)
Connections:                     Transduer Self-Locking Lemo-Plug
Supply/Output Screw Terminal Type (max.1.5mm2, wire)



EPRO CON021/916-200

CON021/916-200
