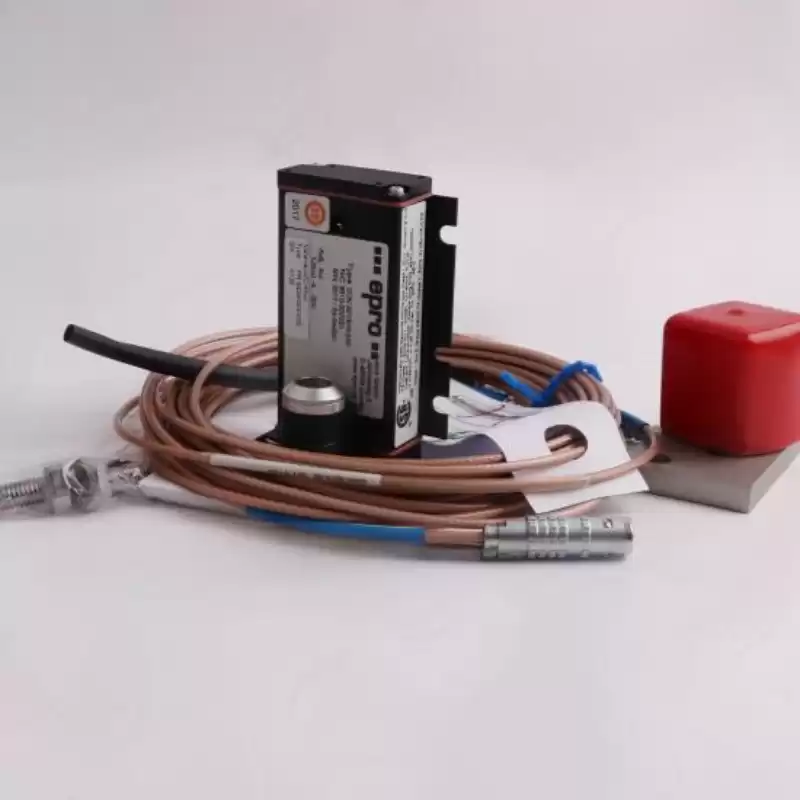

Emerson EPRO PR6426/010-110 32mm Eddy Current Sensor

The Epro PR6426/010-110 is commonly used to measure vibration of machine shafts, eccentricity, thrust (axial displacement), differential expansion, valve position, and air gaps.





EPRO PR6426/010-110 32mm Eddy Current Sensor





The Epro PR6426/010-110 is a Non-contact sensor designed for critical turbo machinery applications such as steam, gas and hydro turbines, compressors, pumps and fans to measure radial and axial shaft displacement: position, eccentricity and motion.



Technical Parameters



· Measuring range: 8 mm, max. 24 mm

· Sensor head diameter: 32 mm

· Frequency range: 0 ... 20 kHz (-3dB)

· Operational temperature: –35...+180 °C

· Extended range up to 24 mm available by converter configuration

· Mounting base: 40x80 mm

· Cable length selectable 4...10 m

· ATEX certified

· It is designed for connection to EZ1000, CON011, CON031, CON041 converters or directly to AMS3000 series modules





Dynamic Performance
Sensitivity 2 V/mm (50.8 mV/mil) ≤ ±1.5% max
Air Gap (Center) Approx. 5.5 mm (0.22”) Nominal
Long Term Drift < 0.3%
Range Static ±4.0 mm (0.157”)
Target
Target/Surface Material Ferromagnetic Steel
(42 Cr Mo4 Standard)
Maximum Surface Speed 2,500 m/s (98,425 ips)
Shaft Diameter ≥200 mm (7.87”)
Environmental
Operating Temperature Range -35 to 175°C (-31 to 347°F)
Temperature Excursions <4 Hours 200°C (392°F)
Maximum Cable Temperature 200°C (392°F)
Temperature Error (at +23 to 100°C) -0.3%/100°K Zero Point
<0.15%/10°K Sensitivity
Pressure Resistance To Sensor Head 6,500 hpa (94 psi)
Shock and Vibration 5g (49.05 m/s2) @ 60Hz @ 25°C (77°F)
Physical
Material Sleeve – Stainless Steel, Cable – PTFE
Weight (Sensor & 1M Cable, no Armor) ~800 grams (28.22 oz)

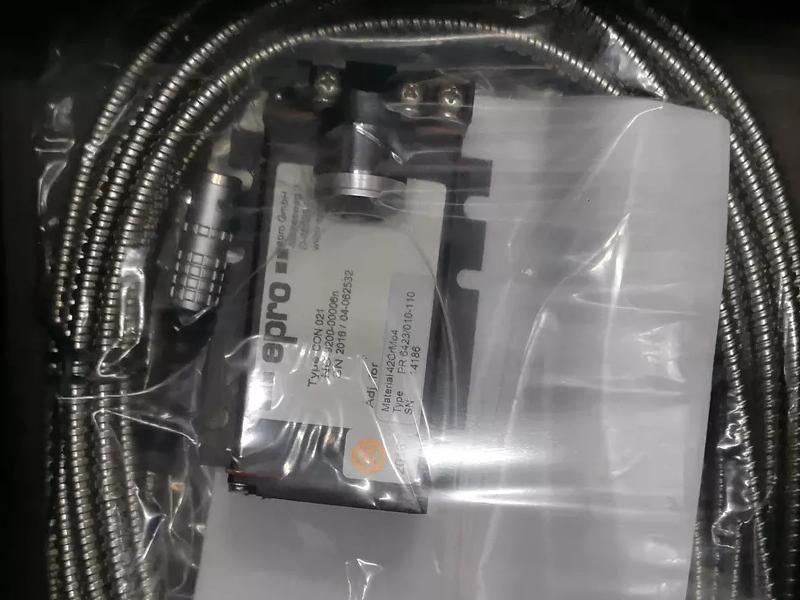

Epro PR6426/010-110



PR6426/010-110



100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.
