General Information：
-------------------------------------------------------------
|
Part number
|
KJ3222X1-BA1 12P2532X112
|
|
Origin
|
USA
|
|
Status
|
Brand New In Stock
|
|
Shipment
|
From Xiamen, China to Worldwide
|
|
Year of Production
|
2020-2022 available
|
-------------------------------------------------------------
About KJ3222X1-BA1 12P2532X112 :

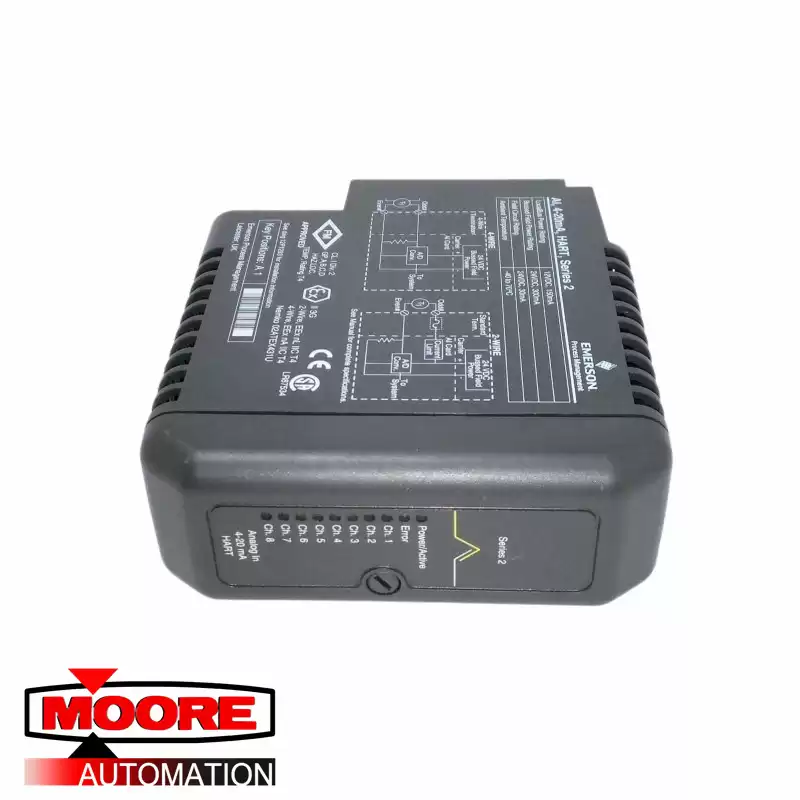

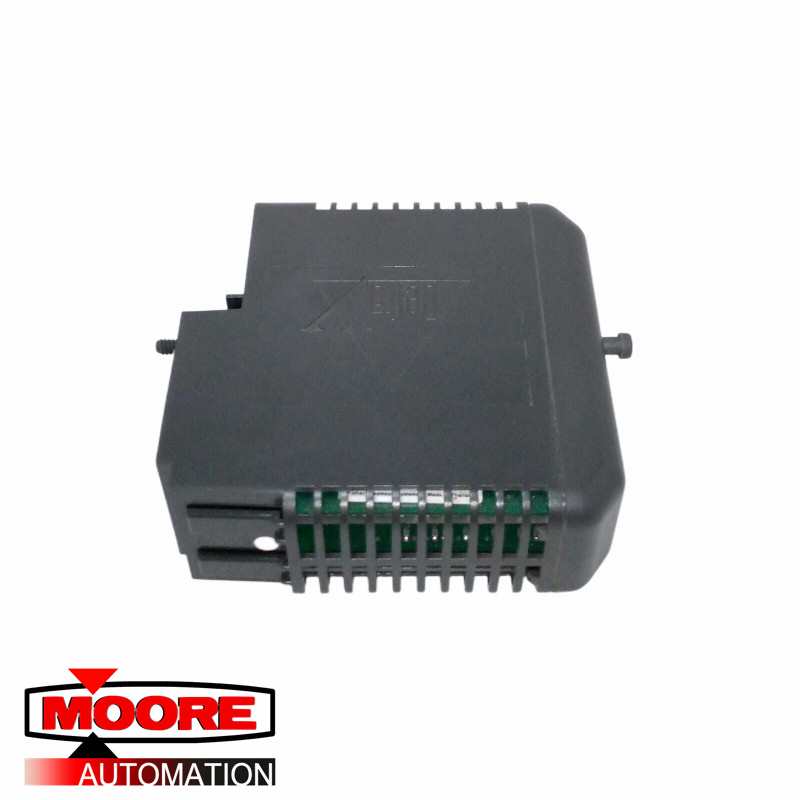

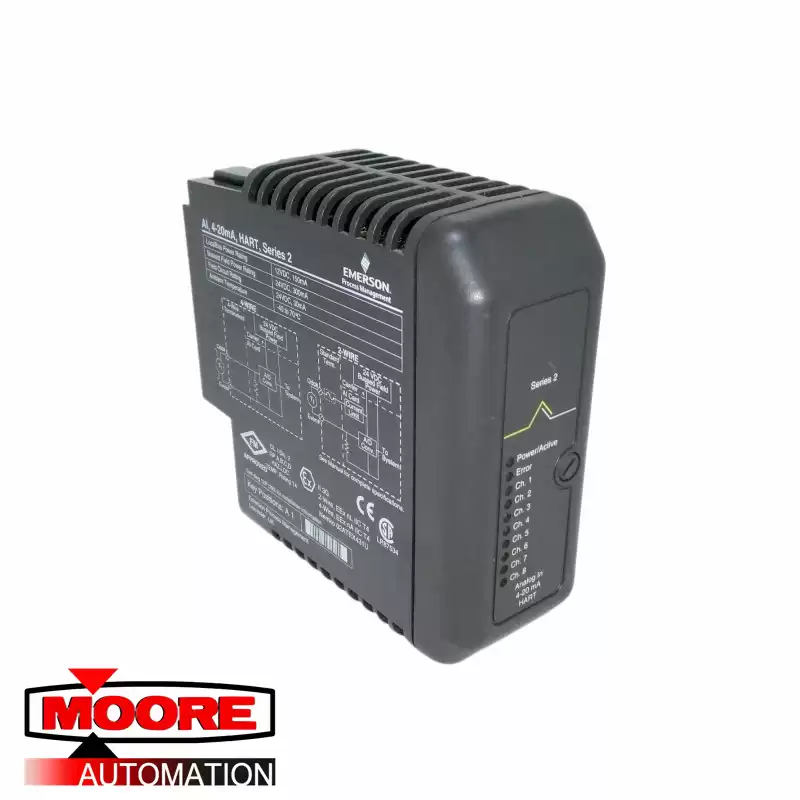

EMERSON KJ3222X1-BA1 12P2532X112 Analog Input HART Module
KJ3222X1-BK1 AI 8-Channel 4-20 mA HART
Card
When system power is energized, an I/O card can
be removed or inserted only when used with the
KJ1501X1-BK1 System DC/DC Power Supply
operating on 24 VDC input power with primary circuit
wiring inductance of less than 23 uH, or with a
certified bulk power supply with an open circuit
voltage Uo of 12.6 VDC and an Lo of less than 23
uH (including wire inductance).
Note: Only one unit at a time may be removed with
system power energized.
In 4-wire mode, the following additional conditions
must be met to insert or remove this I/O card with
system power energized:
• When field power supplied to this device,
either at the field terminal or as bussed field
power through the carrier is de-energized.
• When non-sparking field circuits are deenergized.
An I/O loop assessment must be completed on all
energy-limited nodes.
A terminal block fuse may NOT be removed with
field power energized for non-sparking circuits.
A rotary keying system ensures compatibility
between I/O cards and terminal blocks after
installation is complete. The terminal block must
have th
