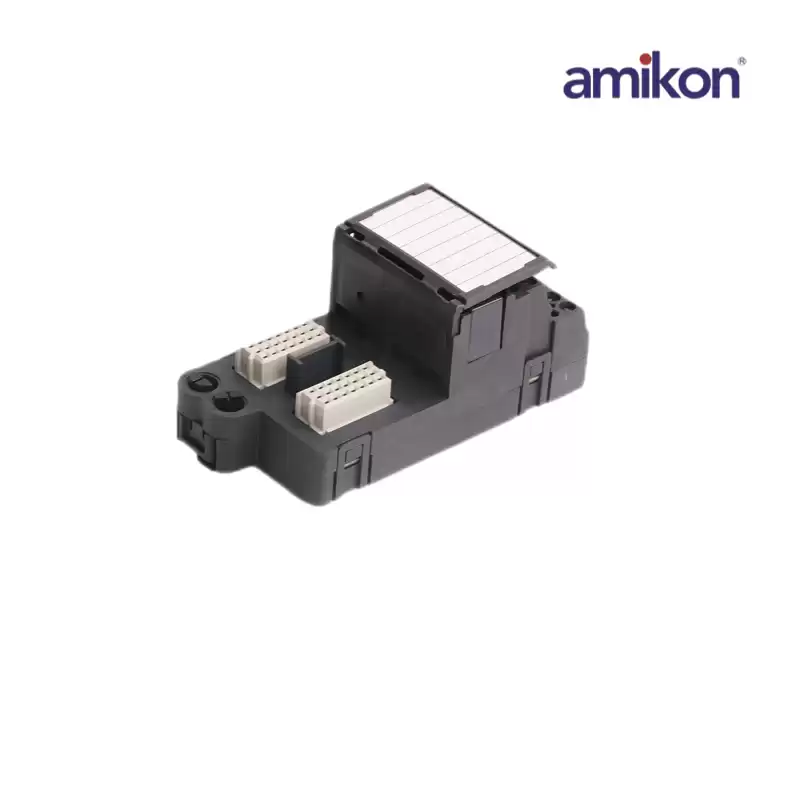

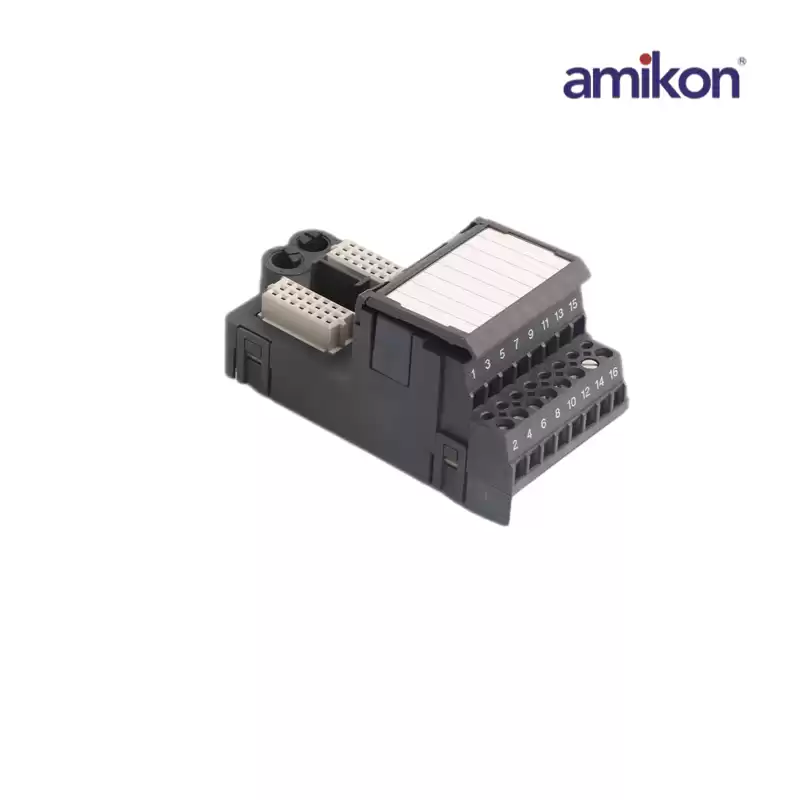

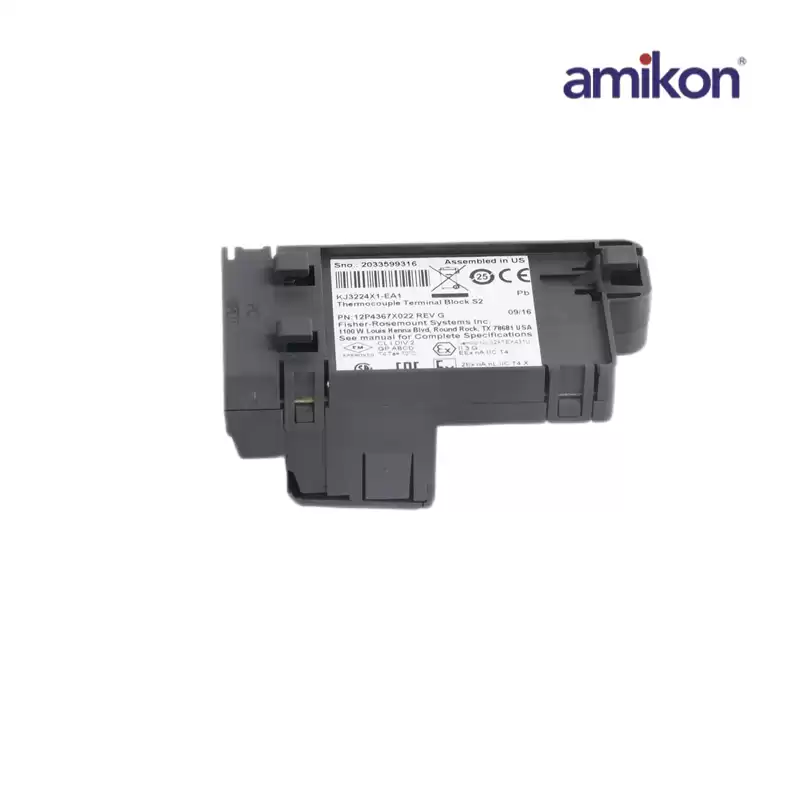

EMERSON KJ3224X1-EA1 12P4367X022 DeltaV Thermocouple Terminal Block

The KJ3224X1-EA1 is a Series-2 Thermocouple Terminal Block. The Communication Network connected to the DeltaV Controller must not be connected to a source, which generates or contains, under normal condition a potential in excess of 60 VAC or 75 VDC. Bussed field power must not be connected to a supply, which generates or contains, under normal condition, a source of potential in excess of 30VDC.

12V-system power must be de-energized before disconnecting any carriers or local bus extender cables or terminators where applicable. Field Power supplied to the I/O modules either at the field terminal or as bussed field power via the I/O carrier or direct connection must be removed before removing or connecting I/O modules from the carrier.Modules H, F, J, K, and L may NOT be replaced while the 12V-system power is energized. I/O modules G may be replaced while the 12V system power is energized.
