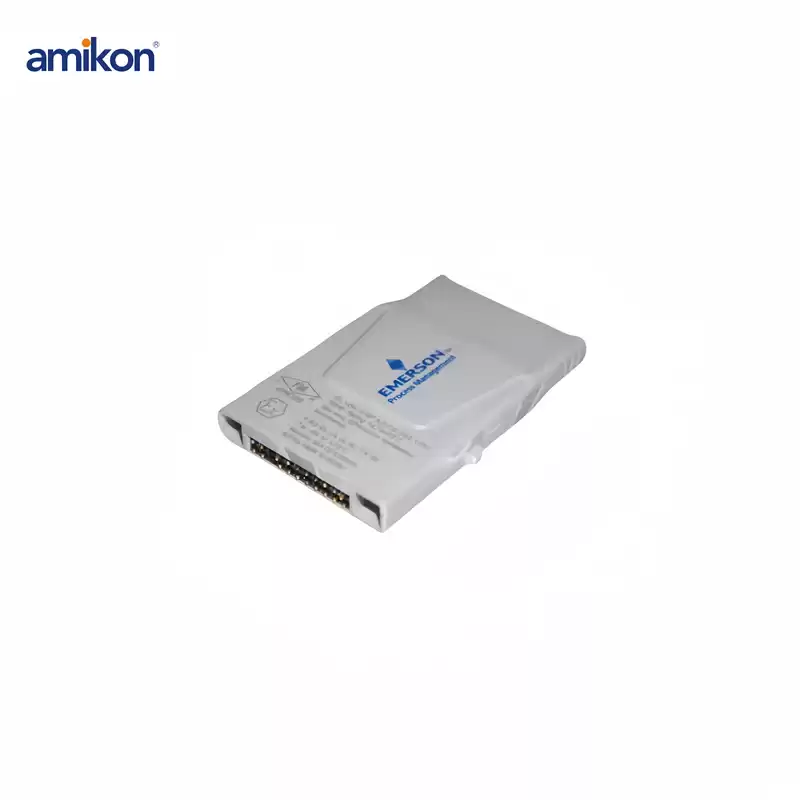

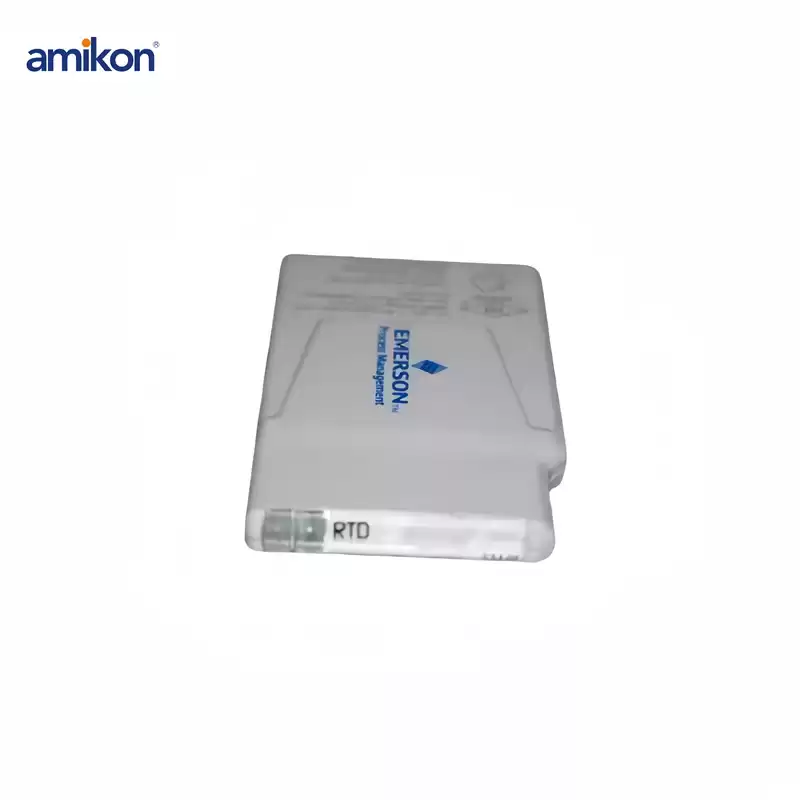

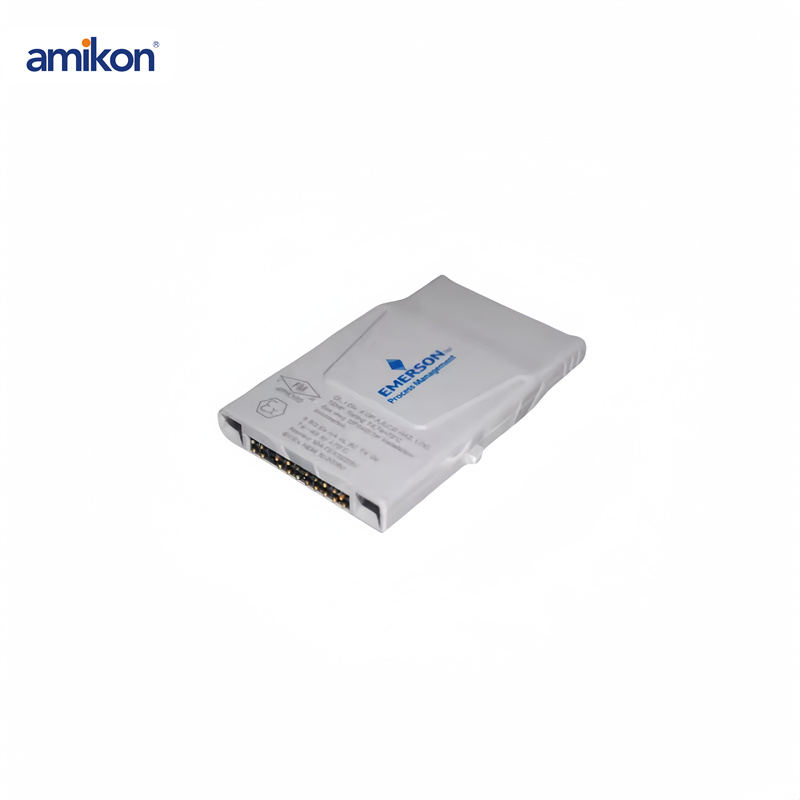

EMERSON KL3031X1-BA1 12P4630X112 RTD Input Module
|
Model Number
|
KL3031X1-BA1 12P4630X112
（ pdf.）
|
Weight:
|
0.28 kg
|
|
Brand Name
|
EMERSON
|
Lead Time
|
IN STOCK
|
|
Warranty
|
1 year
|
Payment
|
T/T Bank Transfer
|
|
Quality
|
Brand New & Original
|
Service
|
One-stop Service
|
|
Shipping By
|
DHL UPS TNT FEDEX ARAMEX
|
Dimensions
|
9x10.3x8cm
|
Power Specifications
CHARM Bus power +6.3 VDC at 32 mA
Field circuit +24 VDC at 10 mA
Environmental Specifications
Ambient Temperature -40 °C to +70 °C
Shock 10 g half-sine wave for 11 ms
Vibration 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz
Airborne ISA-S71.04 –1985 Airborne
Contaminants Contaminants Class G3
Relative Humidity 5 to 95% Non-Condensing
Terminal block key
position 3A
Removal and Insertion
This unit cannot be removed or inserted with system power energized unless the area is known to be non-hazardous.
An I/O loop assessment must be completed on all energy-limited nodes.
A keying system ensures compatibility between a CHARM and the CHARM terminal block when the CHARM is installed on the terminal block. The terminal block keys are automatically set the first time the CHARM is installed on the terminal block. To install another CHARM type on a terminal block, reset the keys by removing the terminal block and releasing the keys from the locked position.
