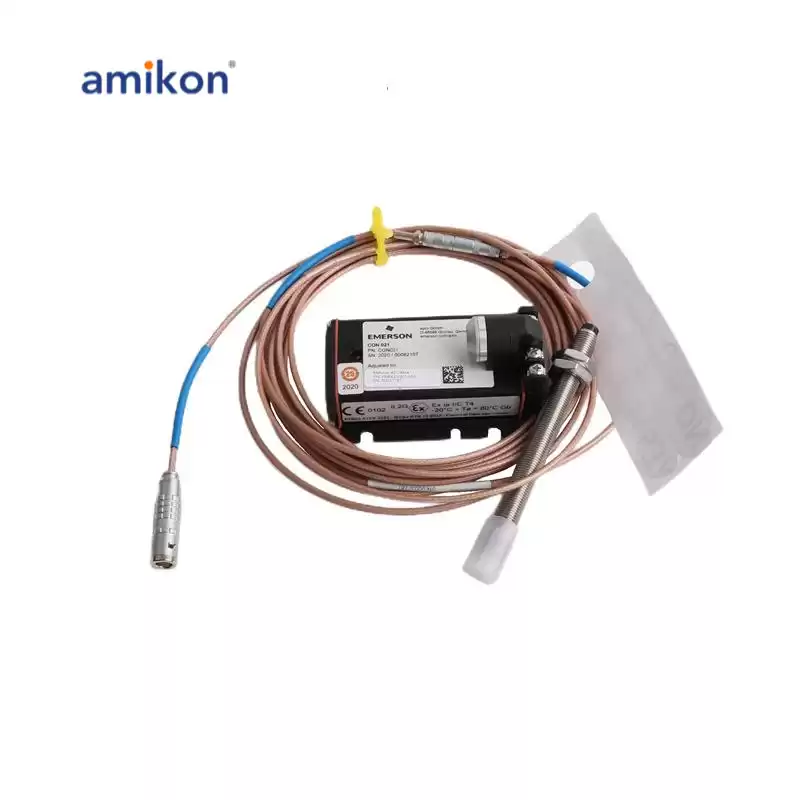

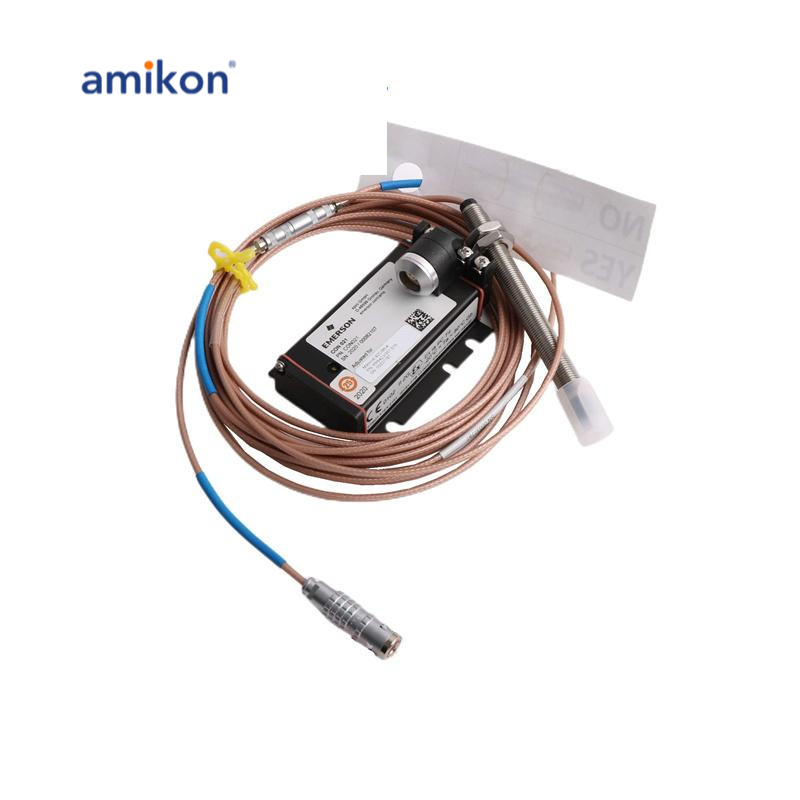

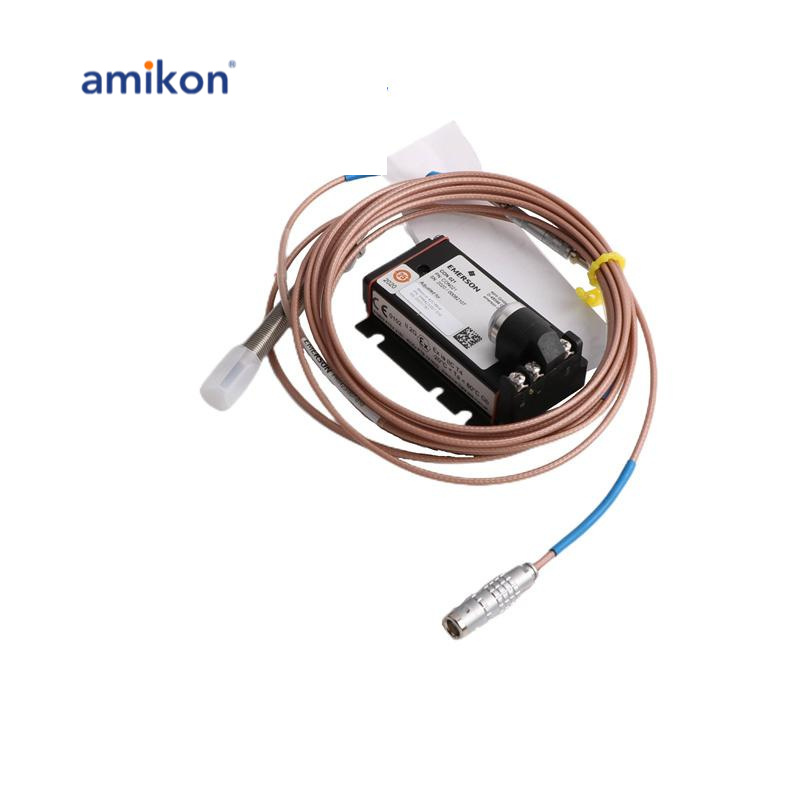

EMERSON PR6423/008-130 CON021 Eddy Current Sensor

Brand new and original sealed//Same Day Shipment

The PR6423/008-130 CON021 is a Eddy Current Sensor. Non-contact sensor designed for critical turbomachinery applications such as steam.
gas and hydro turbines, compressors, gearboxes, pumps and fans to measure radial and axial shaft dynamic displacement; position, eccentricity and speed.
PR6423/008-130 CON021 Data sheet	Linear Measurement Range 2 mm (80 mils) Initial Air Gap 0.5 mm (20 mils) Incremental Scale Factor (ISF) ISO: 8 V/mm (203.2 mV/mil) ± 5%
	@ temperature range 0 to 45°C (+32 to +113°F) Deviation from best fit straight line (DSL) ± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C (+32 to +113°F)
	Measuring Target Minimum Shaft Diameter 25 mm (0.79”) Target Material (Ferromagnetic Steel) 42CrMo4 (AISI/SAE 4140) Standard Other (On Request)
Award-winning service	More than 25 in stock	Full 12-month warranty	We deliver worldwide
