EMI Passed 60w dual output switching power supply 5v 12v for Audio amplifier

KAIHUI enclosed 60w dual output smps switching power supply 5v 12v for LED lighting products and Audio equipment etc.



             60w dual output switching power supply 5v 12v


Description:

This K07-U60D5+12 model 60w switching power supplies are 60W AC/DC enclosed type power supplies with

universal AC input voltage and 100% full load burn-in test.


Features:

1, 60w 5v 12v dual power supply with Universal AC input;

2, 5v 12v dual switching power supply built in EMI,low ripple noise;

3, 100% full load burn-in test;

4, This model have Short circuit / Overload / Over voltage /Over temperature.



     Item No.



K07-U60D5+12

CH1

CH2





OUTPUT















DC Output Voltage

+5V

+12V

Output Rated Current

5A



3A

Output Current Range

0.2-2A



0.1-2A

Rated power

61W

Ripple noise

50mVp-p



100mVp-p

Output adjustable range

CH1:±10%

Output Accuuracy

±1%; ±10%;

Line Regulation

±0.5%; ±5%;

Load Regulation

±0.5%; ±5%;

Set up,Rise,Hold up time

200ms,100ms,30ms



INPUT















Input Voltage range

85V-264V AC,120V-360VDC

AC current

AC230V@2A

Input frequency

50-60Hz

Efficiency

80%

Inrush current

30A@230V AC

Over Temp.protection

Over load protection

105~150%,Hiccup,automatic recovery

Output overload protection

output current 130%-160%, type:hiccup  reset:automatic recovery

Over Temp.protection

------

ENVIRONMENT





Working Temp.,Humidity

-10~+60℃@100% LOAD,10~90% RH,No condensation

Storage Temp.,Humidity

-20~85℃,10~95% RH

Temp.,Drift

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES



SAFETY&EMC





Safety standards

GB4943,EN60950,EN55022 CLASS B

Pressure

I/P-O/P,I/P-FG:1500V;O/P-FG:0.5KV DC 1min.

Insulation resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

EMC standards

------



OTHER





Demension

159*97*38mm



Weight

0.5Kg

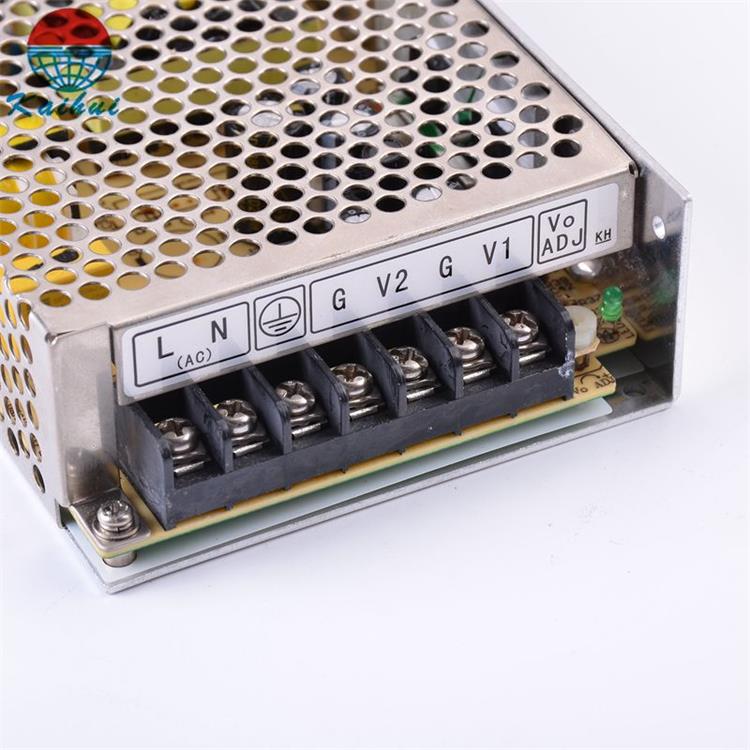

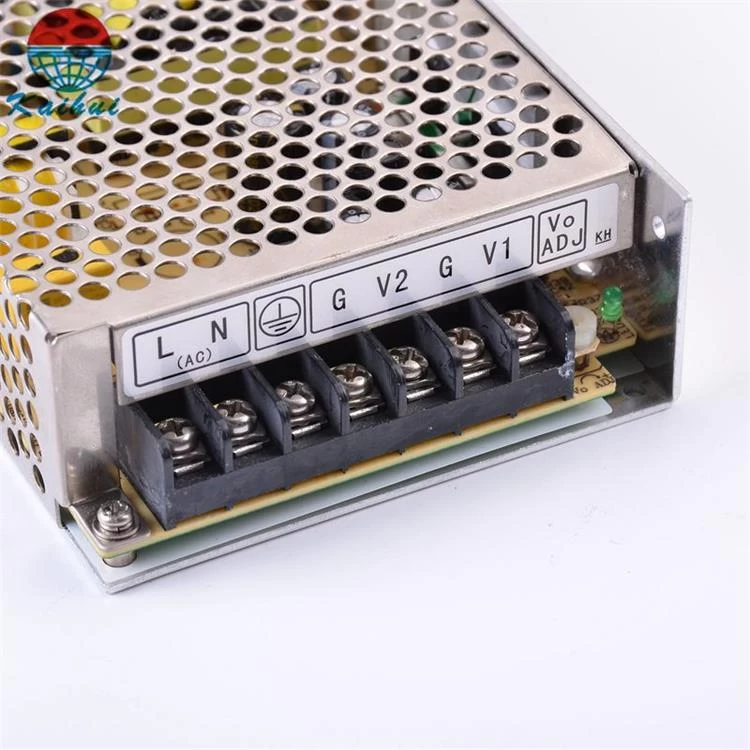

Connection

9.5  terminal 7P

Notes

1,All the parameters in the 230VAC input, rated load, temperature 25 ℃, humidity 70% under the conditions of determination;
2, Accuracy: including setting error, line adjustment rate, load regulation rate;
3,Ripple test: connect the power supply and load with 30cm long wire and 0.1u and 47u capacitance at the load end, measured on the load side with 20MHz oscilloscope;
4, line regulation: in the rated load conditions, the input voltage changes from low to high measured;
5,Load regulation: the measured output from 0 load to 100% load changes measured .

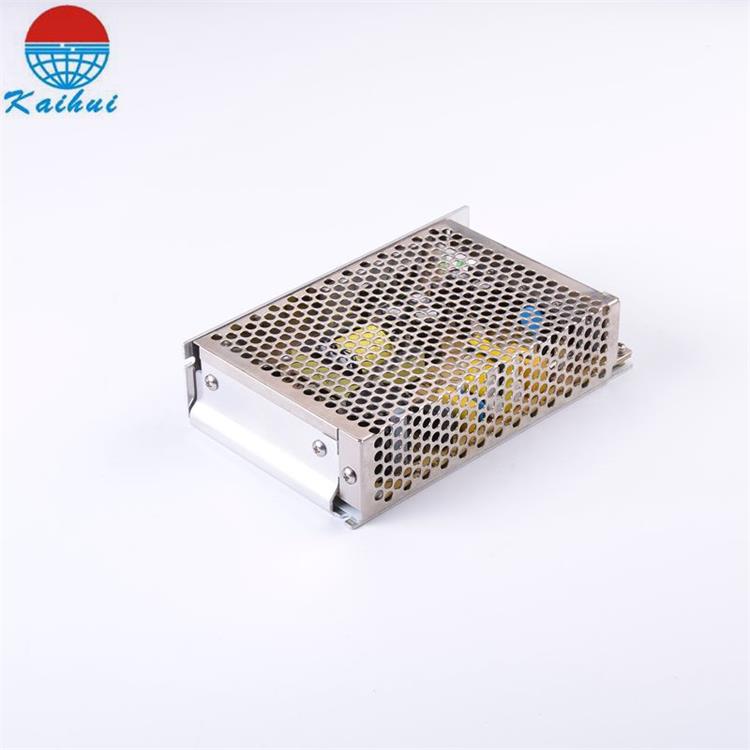

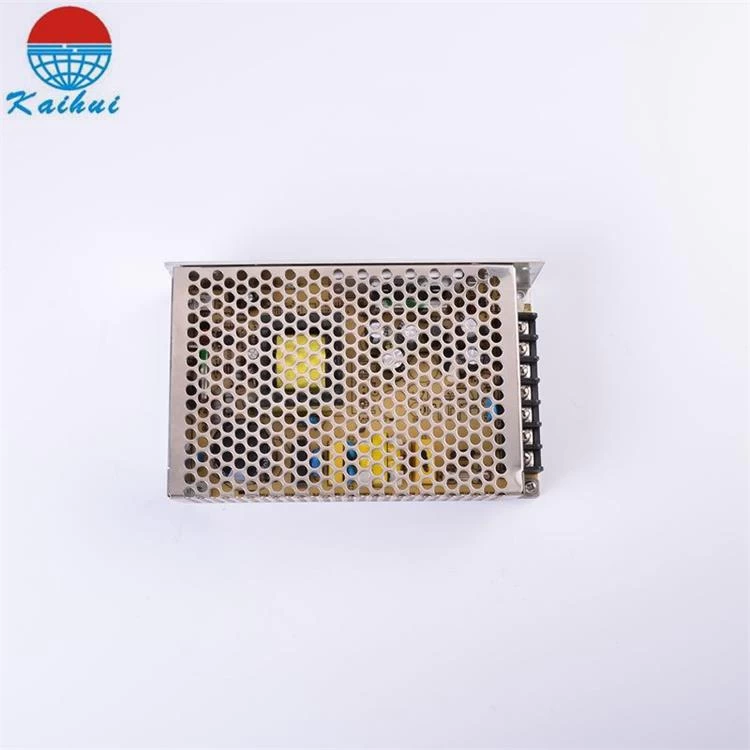

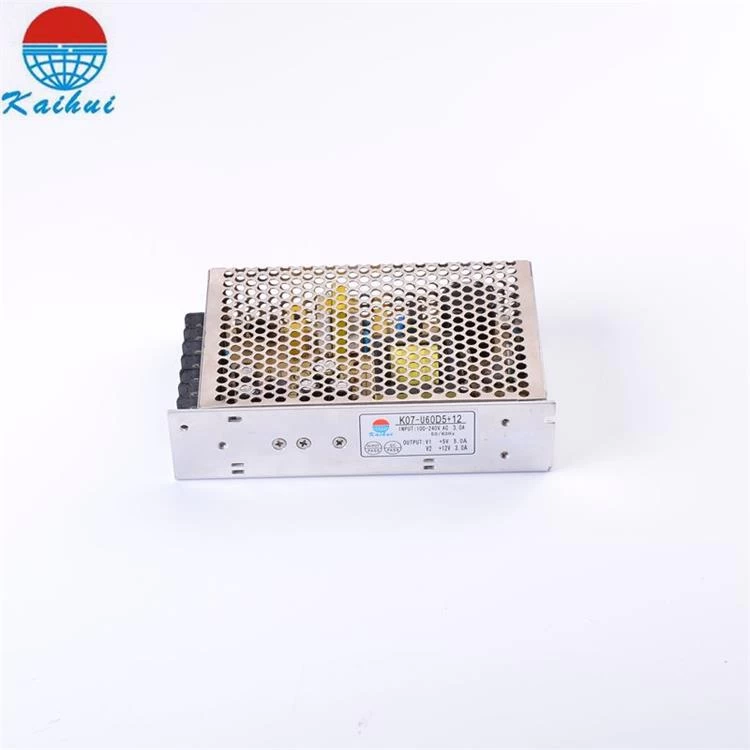

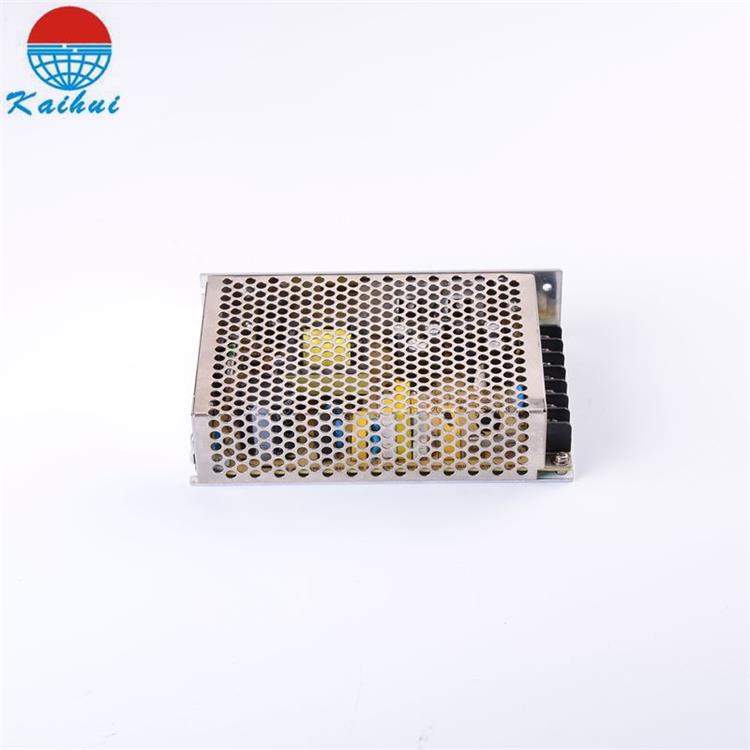

Product picture:

dual output switching power supply 5v 12v 60w

FAQ



Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.



Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%



Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)

Real Power= Input Voltage x Input Current x Power Factor (W)
