UU series common mode chokes mainly used for AC power suppliers, DC-DC converters and telecommunication equipment. It has small size, so its convenient to package. It also has high reliability and high saturation DC current. UU series different frequency require will be meet by different material and the materials we used are all lead-free products,RoHS compliant. When you choose high saturated material,the product will have wide inductance range.
Quick Details
|
Part No: MCTL9U Series Standard Winding
|
|
Brand name: MCT
|
|
Rated voltage:85~265VAC,50/60Hz
|
|
Custom made: Available
|
|
Insulation resistance:100MΩ @500VDC
|
|
Logo: Can be customized
|
|

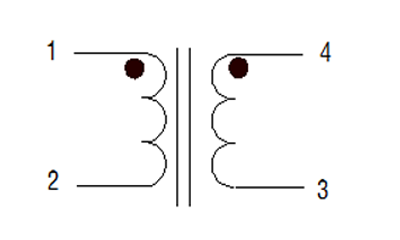

Turns ratio:1:1±2%
|
|
Packing: Carton,can custom
|
|
Hi-pot: 2500VAC/1mA/60Sec
|
|
Certification: ISO9001,ROHS,CE
|
|
Testing frequency:1KHz/0.25V
|
|
OEM: Available
|
|
Operating temperature:-40°C~+105°C
|
|
Shipping: Air, Ship, etc
|
|
Operating frequency: 20 kHz-500 kHz
|
|
MOQ: Any quantity
|
|
Storage temperature: -25°C +85°C
|
|
Lead time: 25 days after payment
|
Part Information

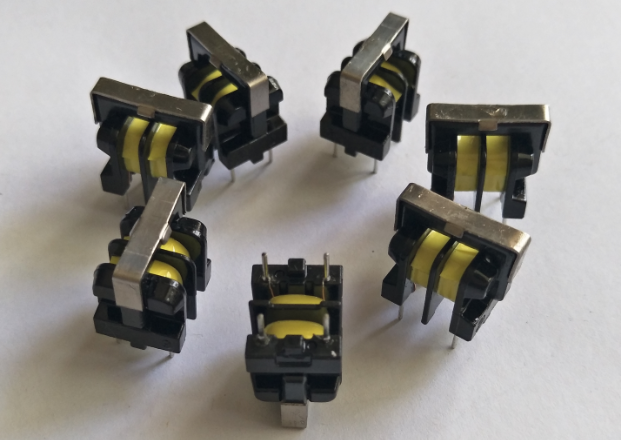

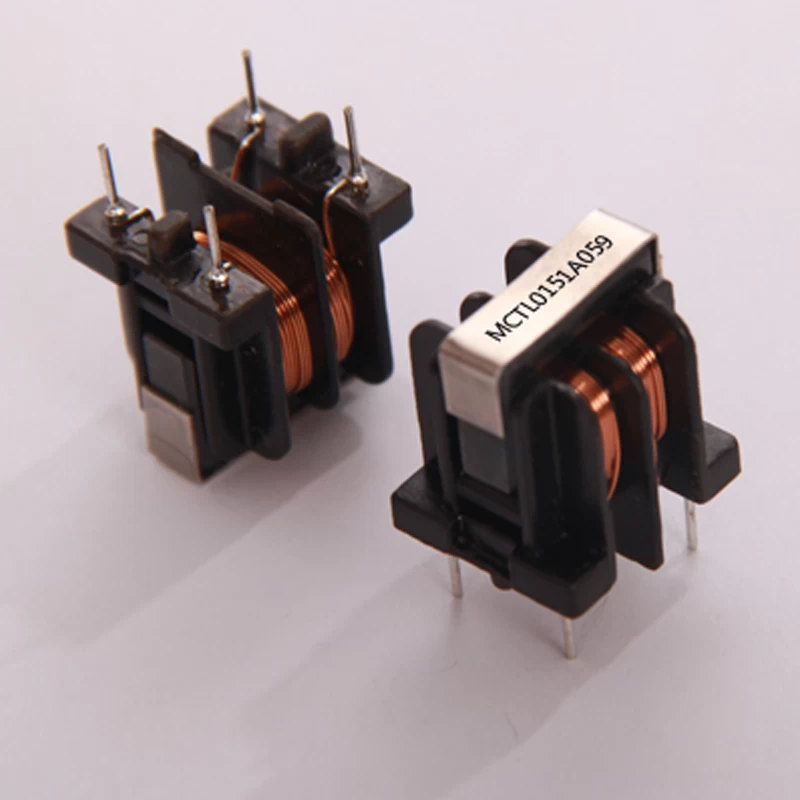

Product Name: EMI Suppression Filter Common Mode Choke Coil UU9 For AC Power Lines
Applications: Switching power supply, Lighting equipment, Data transmission, Medical application equipment, Home appliance.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Advantages:Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected and UL certified. We accept custom made and design service.
Product Specification
|
MCT Part No.
|
MCT Part No.
|
Inductance(mH) min
|
DC Resistance(Ω)max
|
Rated Current(A)
|
|
MCTL9U333A01V
|
MCTL9U333A01H
|
33.0
|
13.5
|
0.1
|
|
MCTL9U103A02V
|
MCTL9U103A02H
|
10.0
|
4.2
|
0.2
|
|
MCTL9U602A03V
|
MCTL9U602A03H
|
6.0
|
2.2
|
0.3
|
|
MCTL9U352A04V
|
MCTL9U352A04H
|
3.5
|
1.3
|
0.4
|
|
MCTL9U252A05V
|
MCTL9U252A05H
|
2.5
|
1.0
|
0.5
|
|
MCTL9U152A06V
|
MCTL9U152A06H
|
1.5
|
0.6
|
0.6
|
|
MCTL9U102A07V
|
MCTL9U102A07H
|
1.0
|
0.4
|
0.7
|
|
MCTL9U801A08V
|
MCTL9U801A08H
|
0.8
|
0.32
|
0.8
|
|
MCTL9U701A09V
|
MCTL9U701A09H
|
0.7
|
0.28
|
0.9
|
|
MCTL9U501A10V
|
MCTL9U501A10H
|
0.5
|
0.22
|
1.
|

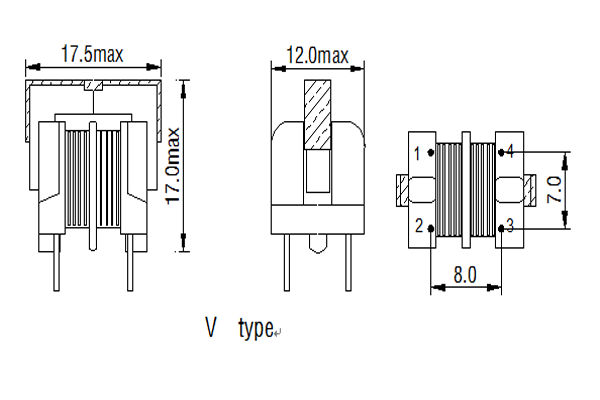

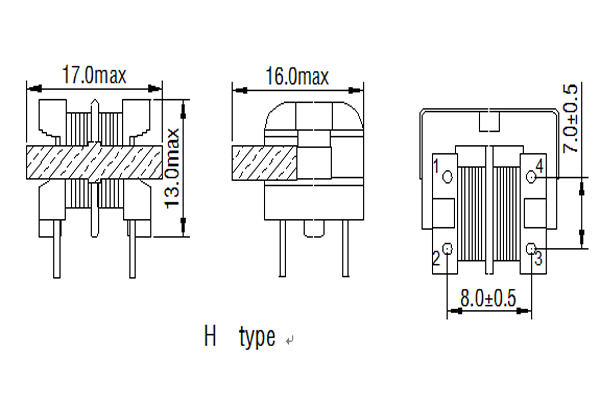

Different appreance is also customied designed by our engineers!
