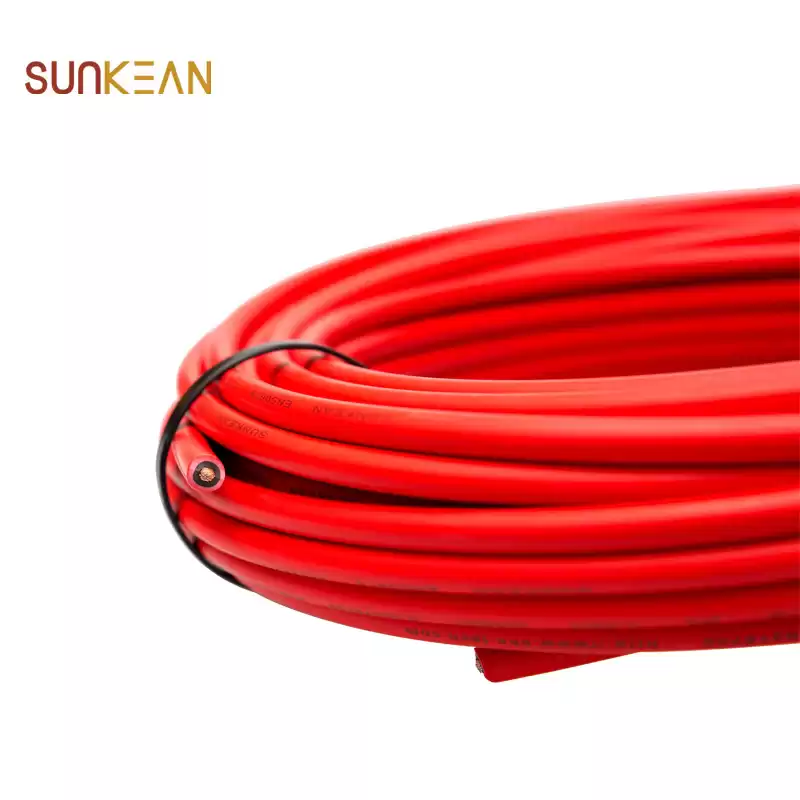

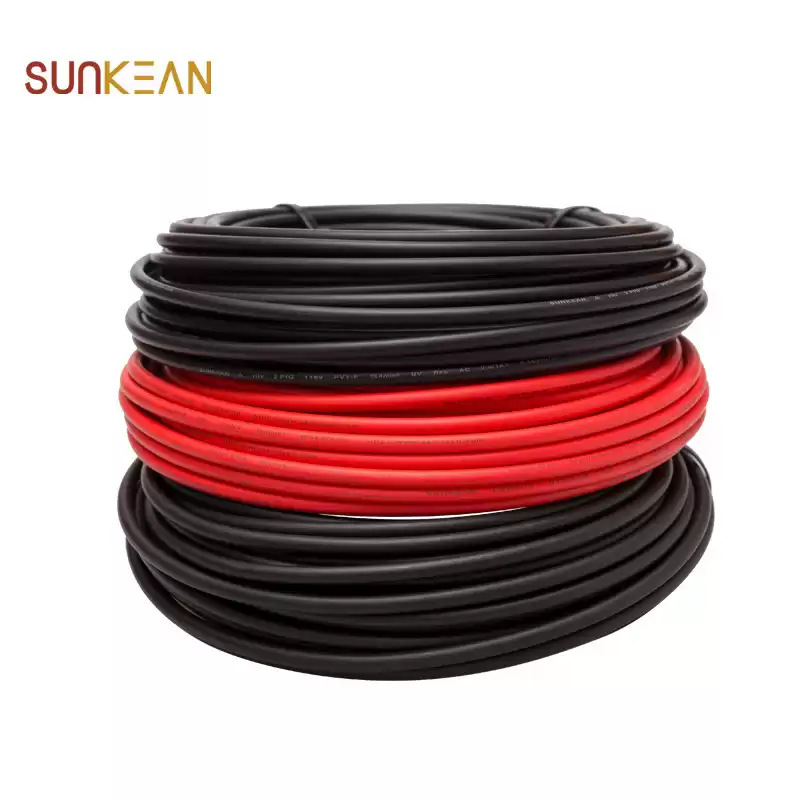

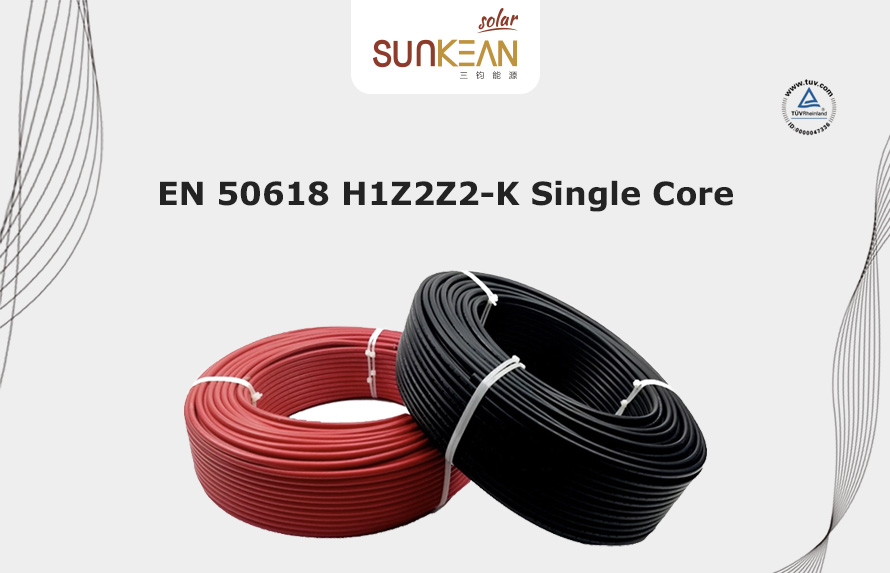

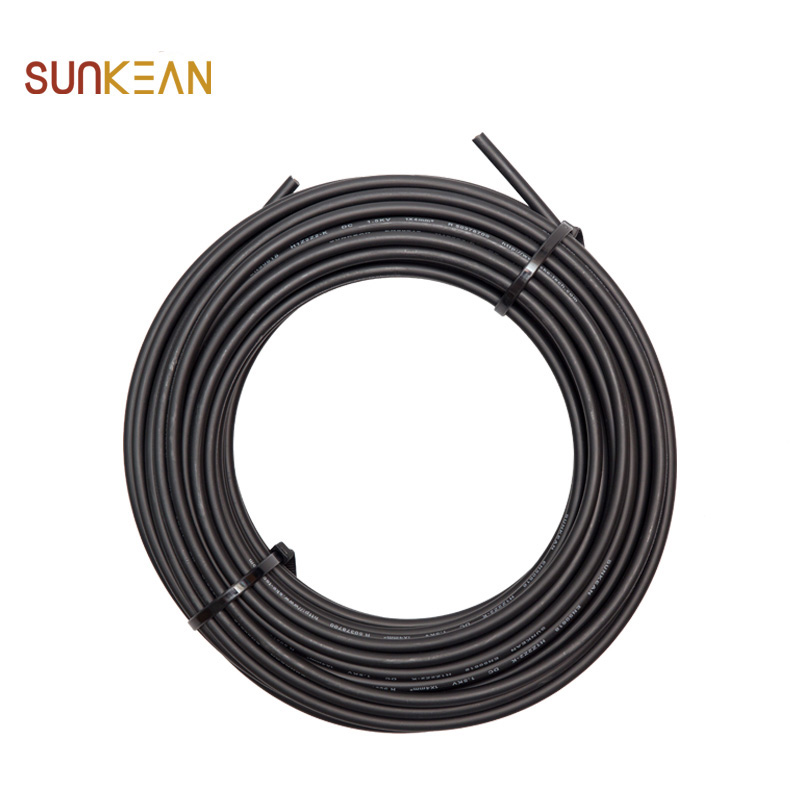

EN 50618 H1Z2Z2-K Single Core Solar Cable
*EN50618 Approval
*Electron-beam cross-linked compounds
*UV,ozone and hydrolysis resistant
*High temperature resistance, the materials do not melt or flow
*Good cold flexibility
*Very long service life ＞25 years at 90℃
*Compatible to all popular connectors
Product description:
Voltage Rating(Uo/U)
|
DC: 1500V
|
Test Voltage
|
6500V AC
|
Temperature Rating
|
Rated: -40°C to +90°C
Max.conductor temp: +120°C
Short Circuit: +250°C
|
Minimum Bending Radius
|
Ø≤12mm 4 x overall diameter
Ø>12mm 10 x overall diameter
|
Testing Standard
|
Smoke Density Test : transmittance≥60% EN50618
Cold Bending Test : -40°C±2°C no crack EN60811-504
|
|
|
Cable Name
|
Cross Section
(mm²）
|

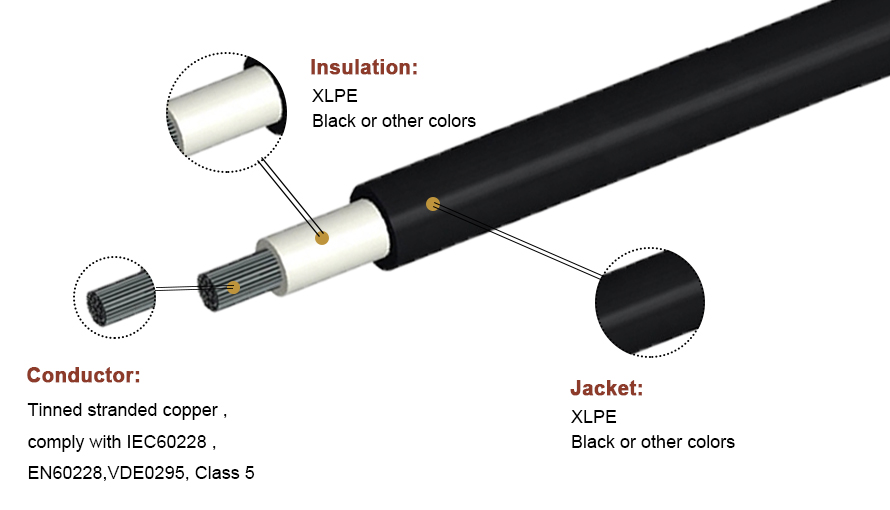

Construction
(No./mm)
|
Insulation O.D.
(mm)
|
Cable O.D.
(mm)
|
Conductor resistance
Max (Ώ/km)
|
|
H1Z2Z2-K Single Core
EN50618
|
1.5
|
30/0.25
|
3.05
|
4.7
|
13.7
|
|
2.5
|
49/0.25
|
3.5
|
5.2
|
8.21
|
|
4.0
|
56/0.285
|
3.85
|
5.5
|
5.09
|
|
6.0
|
84/0.285
|
4.45
|
6.1
|
3.39
|
|
10
|
77/0.4
|
5.5
|
7.2
|
1.85
|
|
16
|
126/0.4
|
6.9
|
8.8
|
1.24
|
|
25
|
196/0.4
|
8.7
|
10.8
|
0.795
|
|
35
|
276/0.4
|
10
|
12.4
|
0.565
|

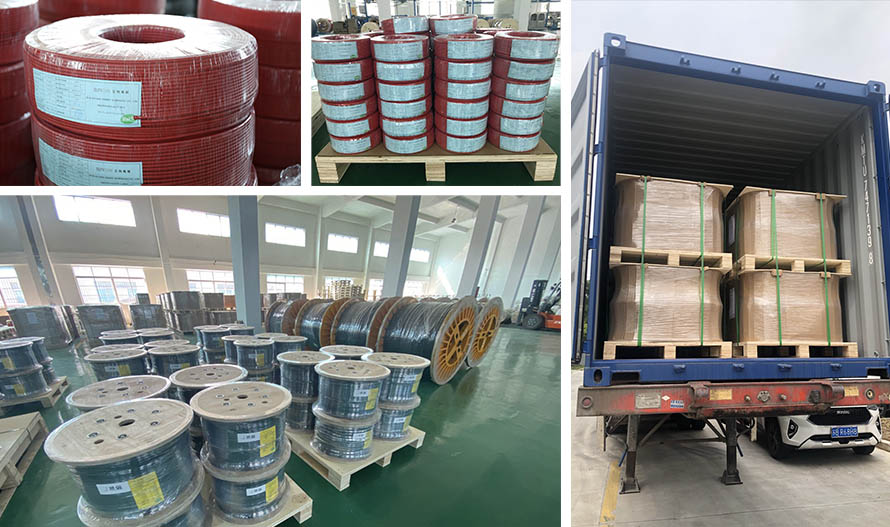

Packing & Delivery:

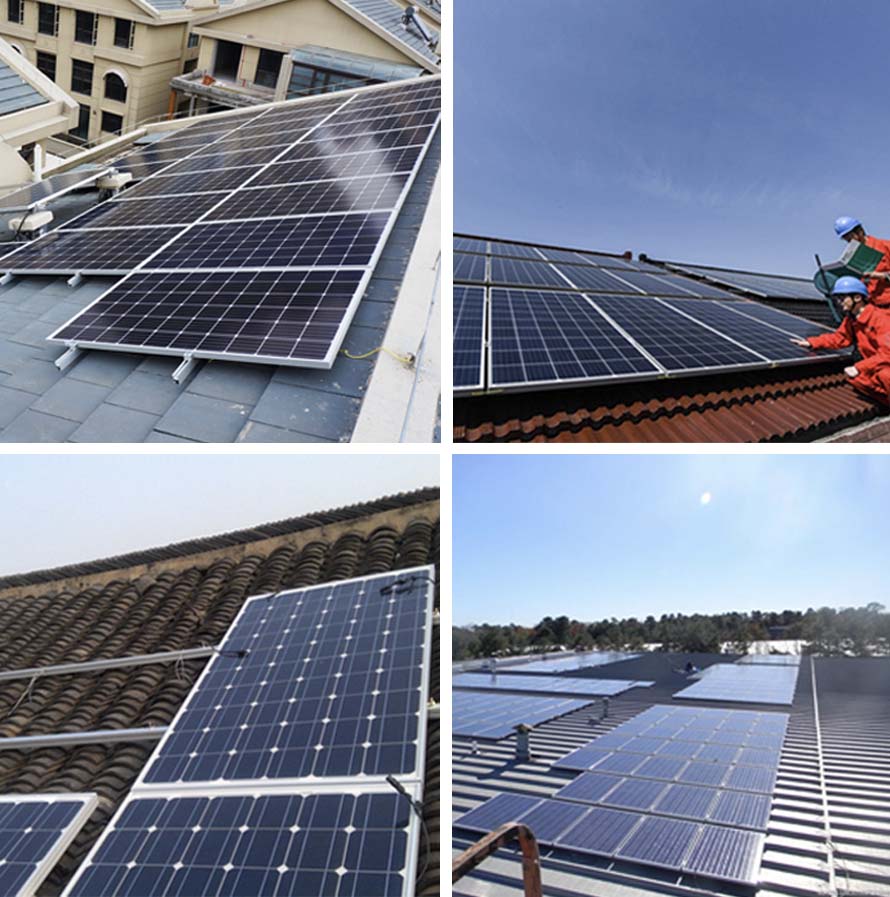

Application Scenario:
Global Exhibitions:
Company Profile:
SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover panel solar system, solar cables, solar extension cables , home energy solar systems, Solar power fence, three phase inverters etc solar products .
SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.
FAQ
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
