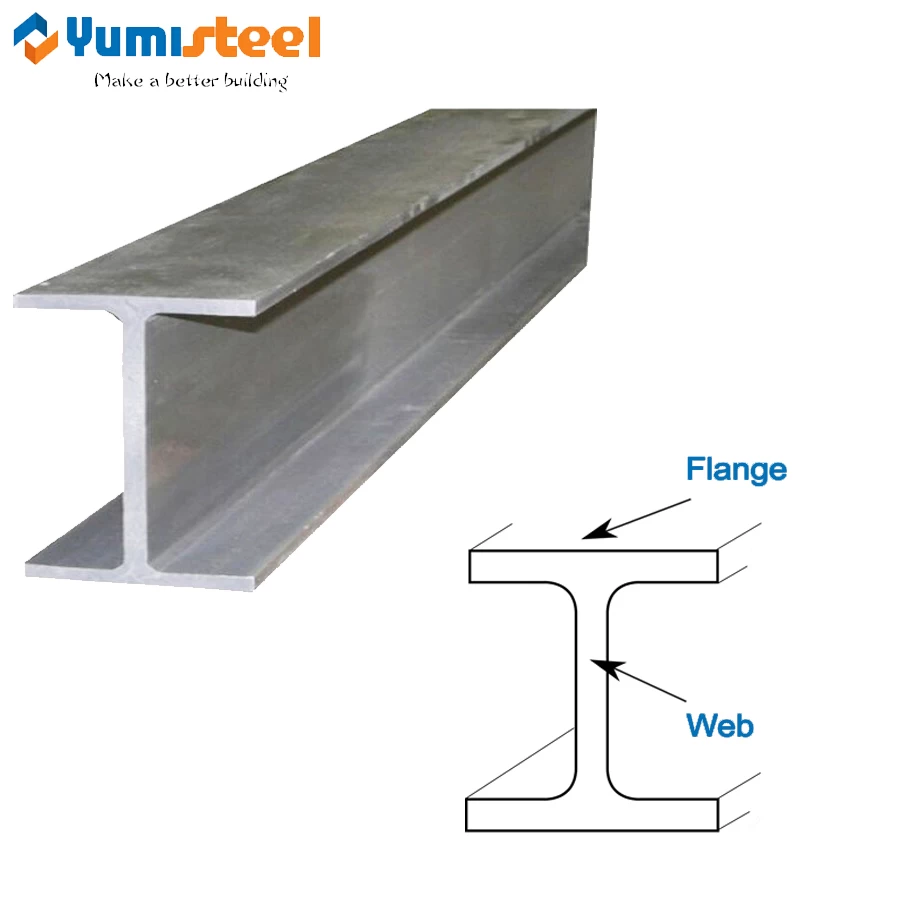

EN standards mild steel universal beam for steel structure

H steel beam is commonly used in on the horizontal in building structures to support floors and roofs.MOQ:15 tons/size



Steel column advantages

☆ Steel column is lighter than wood than wooden column:

A steel I-beam weighs less than glulams,parallam beams,the lighter-weight advantage reduces materials shipping costs, and can also simplify the design of a building's foundation and other structural support systems, which can further reduce project budgets.


 Faster and easier installation & construction:

Steel components are already pre-engineered to a specific design inside the manufacturing plant and then delivered, ready to be erected. In this way,it speeds up construction time significantly, making it possible to complete large-scale projects in couple weeks.


☆ Lower cost:

Steel beam is recyclable,durable,which makes lifetime more longer than other material.Also fast installation and construction can save 30%-40% labor cost.


Universal beam specifications

Size mm

KG/Metre

Web Thickness

Flange Thickness

Meters/Ton

127 x 76 x 13

13

4

7.6

77

152 x 89 x 16

16

4.5

7.7

63

178 x 102 x 19

19

4.8

7.9

53

203 x 102 x 23

23.1

5.4

9.3

43

203 x 133 x 25

25.1

5.7

7.8

40

203 x 133 x 30

30

6.4

9.6

33

254 x 102 x 22

22

5.7

6.8

45

254 x 102 x 25

25.2

6

8.4

40

254 x 102 x 28

28.3

6.3

10

36

254 x 146 x 31

31.1

6

8.6

32

254 x 146 x 37

37

6.3

10.9

27

254 x 146 x 43

43

7.2

12.7

23

305 x 102 x 25

24.8

5.8

7

40

305 x 102 x 28

28.2

6

8.8

36

305 x 102 x 33

32.8

6.6

10.8

30

305 x 127 x 37

37

7.1

10.7

27

305 x 127 x 42

41.9

8

12.1

24

305 x 127 x 48

48.1

9

14

21

305 x 165 x 40

40.3

6

10.2

25

305 x 165 x 46

46.1

6.7

11.8

22

305 x 165 x 54

54

7.9

13.7

19

356 x 127 x 33

33.1

6

8.5

30

356 x 127 x 39

39.1

6.6

10.7

26

356 x 171 x 45

45

7

9.7

22

356 x 171 x 51

51

7.4

11.5

20

356 x 171 x 57

57

8.1

13

18

356 x 171 x 67

67.1

9.1

15.7

15

406 x 140 x 39

39

6.4

8.6

26

406 x 140 x 46

46

6.8

11.2

22

406 x 178 x 54

54.1

7.7

10.9

19

406 x 178 x 60

60.1

7.9

12.8

17

406 x 178 x 67

67.1

8.8

14.3

15

406 x 178 x 74

74.2

9.5

16

14

457 x 152 x 52

52.3

7.6

10.9

19

457 x 152 x 60

59.8

8.1

13.3

17

457 x 152 x 67

67.2

9

15

15

457 x 152 x 74

74.2

9.6

17

14

457 x 152 x 82

82.1

10.5

18.9

12

457 x 191 x 67

67.1

8.5

12.7

15

457 x 191 x 74

74.3

9

14.5

14

457 x 191 x 82

82

9.9

16

12

457 x 191 x 89

89.3

10.5

17.7

11

457 x 191 x 98

98.3

11.4

19.6

10

533 x 210 x 101

101

10.8

17.4

10

533 x 210 x 109

109

11.6

18.8

9

533 x 210 x 122

122

12.7

21.3

8

533 x 210 x 82

82.2

9.6

13.2

12

533 x 210 x 92

92.1

10.1

15.6

11

610 x 229 x 101

101.2

10.5

14.8

10

610 x 229 x 113

113

11.1

17.3

9

610 x 229 x 125

125.1

11.9

19.6

8

610 x 229 x 140

139.9

13.1

22.1

7

610 x 305 x 149

149.1

11.8

19.7

7

610 x 305 x 179

179

14.1

23.6

6

610 x 305 x 238

238.1

18.4

31.4

4

686 x 254 x 125

125.2

11.7

16.2

8

686 x 254 x 140

140.1

12.4

19

7

686 x 254 x 152

152.4

13.2

21

7

686 x 254 x 170

170.2

14.5

23.7

6

762 x 267 x 147

146.9

12.8

17.5

7

762 x 267 x 173

173

14.3

21.6

6

762 x 267 x 197

196.8

15.6

25.4

5

838 x 292 x 176

175.9

14

18.8

6

838 x 292 x 194

193.8

14.7

21.7

5

838 x 292 x 226

226.5

16.1

26.8

4

914 x 305 x 201

200.9

15.1

20.2

5

914 x 305 x 224

224.2

15.9

23.9

4

914 x 305 x 253

253.4

17.3

27.9

4

914 x 305 x 28

289.1

19.5

32

3

914 x 305 x 343

343.3

19.4

32

3

914 x 305 x 388

388

21.4

36.6

3

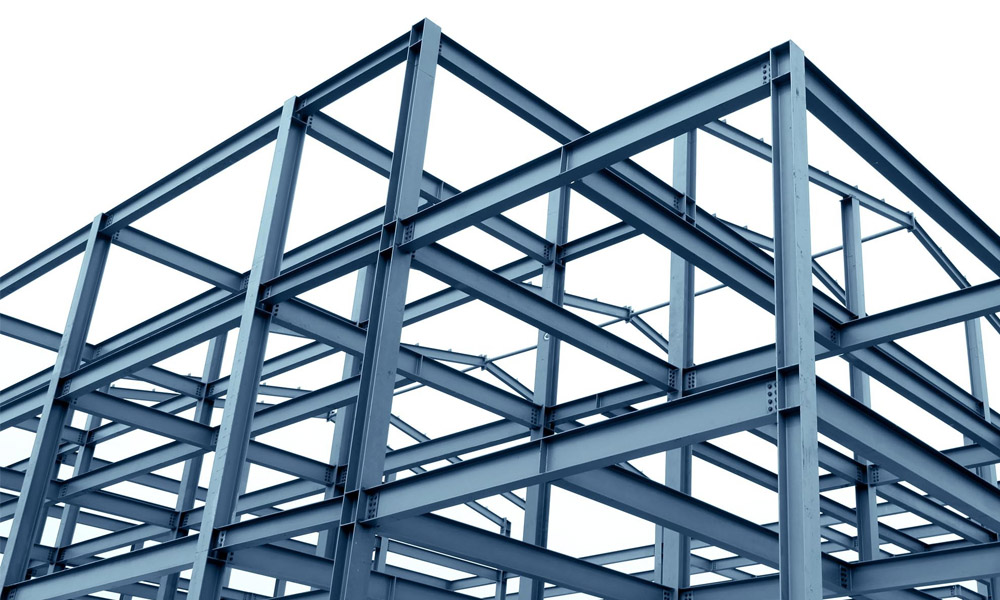

H beam section application

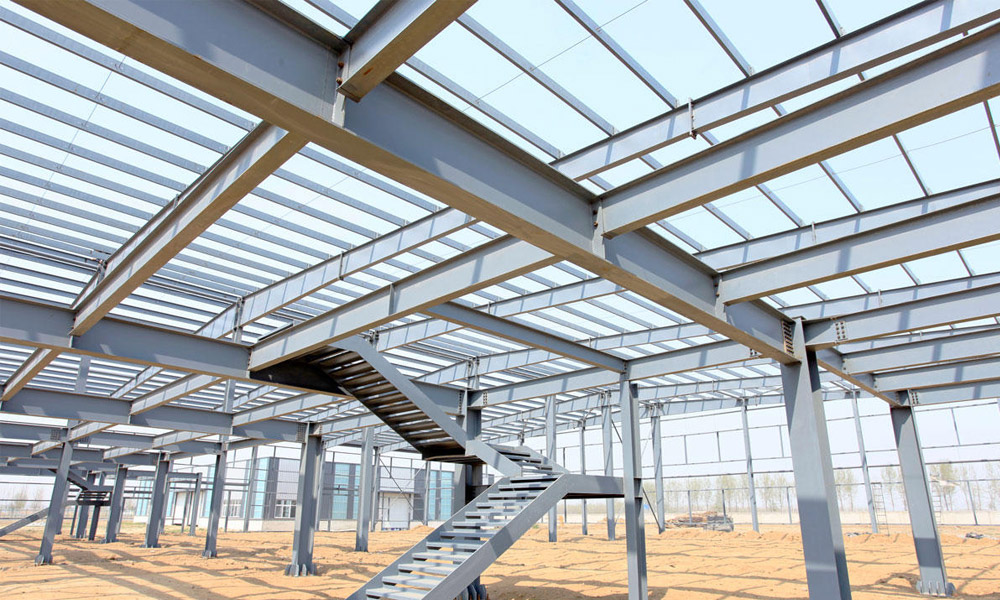

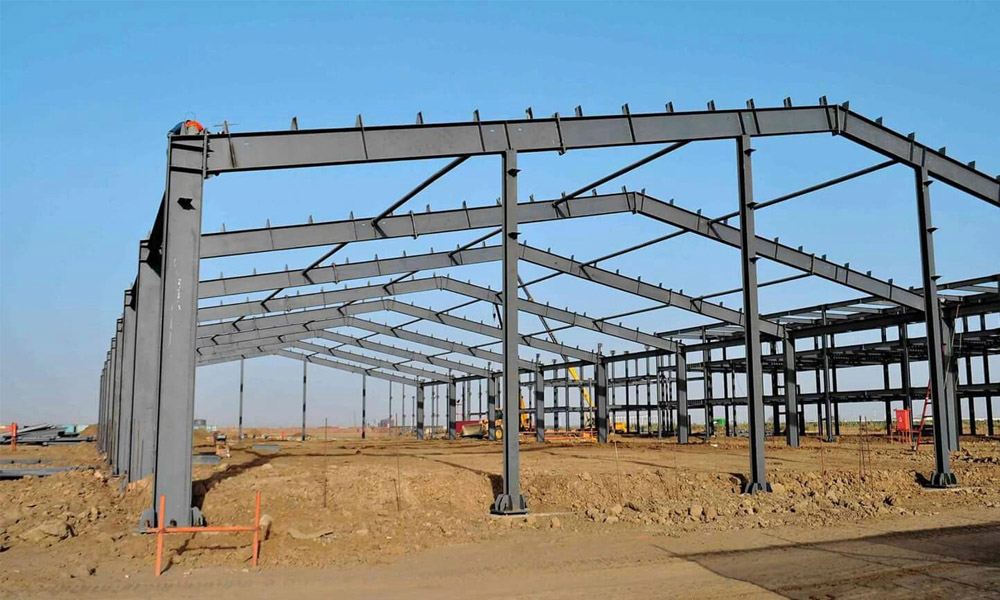

Structural steel beam isn't just for skyscrapers, it's widely used large agriculture buildings and garages,steel sheds,etc.

painted steel beams price

mild steel beam for sales

china steel beam manufacturers


Packing & Delivery:

☆ Packing:

Seaworthy packing standards:

Packed in stack with steel strips,and then loaded in containers or go by bulk carrier.If you have special packing requirement,please feel free to discuss with us,thank you.


☆ Delivery:

Delivery time for stock size: 7-10 days ;

Delivery time for special requirement and thickness: 25-30 day;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customers or accept appointed forwarder from customers.
