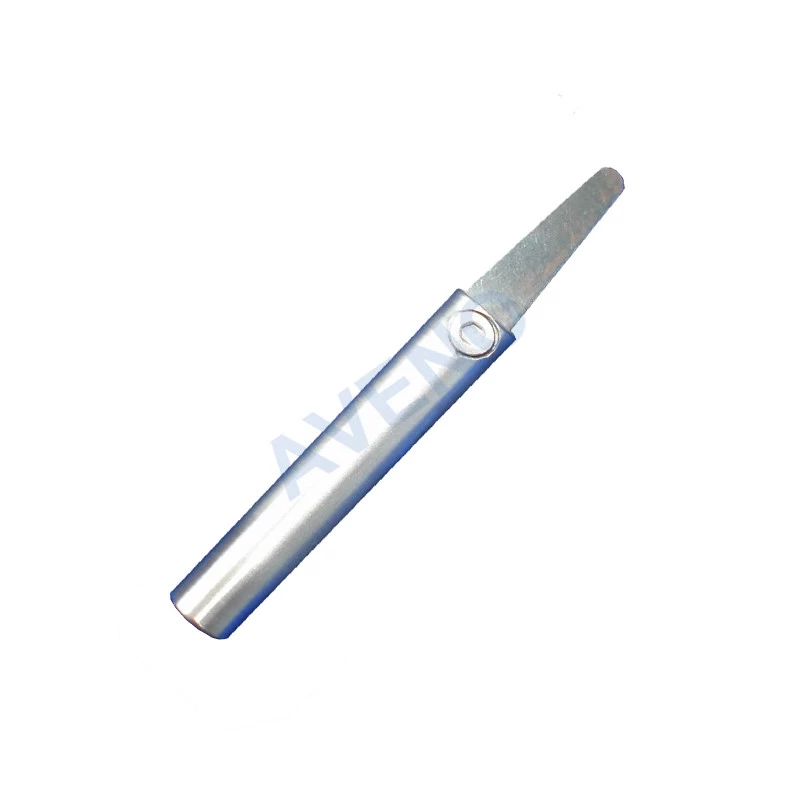

ATB40- Feeler Gauge
Application Of Feeler Gauge
Feeler gauge with a thickness of (0,4 ± 0,02) mm and an insertion edge radius of approximately 3 mm.
Test method Of Feeler Gauge
If the component to be tested cannot be gripped between thumb and forefinger, establish whether it is grippable by inserting the feeler gauge between the component and the underlying layer or body of the toy at an angle between 0° and 10° from the toy surface using a force of (10 ± 1) N. If the gauge can be inserted more than 2 mm, the component shall be considered as grippable.
Standards Of Feeler Gauge
EN-71-1 section 8.4.1.3
Key Specification Of Feeler Gauge
|
Model
|
ATB40 Feeler Gauge
|
|
Material
|
Stainless
steel
|
|
Feeler
gauge thickness
|
0.4mm
|
|
Insertion
edge radius
|
3mm
|
|
Dimension
|
1.5*1.5*4.0cm
|
|
Weight
|
0.1kg
|
