EN71 Part 1 12mm Feeler Gap Gauge GT-M69

EN71 Part 1 12mm gap gauge use to determine the whether the cloth and sewing materials of soft stuffed toys after the tensile test is able to meet the safety requirements of standard .



EN71 Part 1 12mm Feeler Gap Gauge GT-M69


Product Introduction


Application:

Gap gauge is use to determine the whether the cloth and sewing materials of soft stuffed toys after the tensile test is able to meet the safety requirements of standard , it is judged based on:

Soft-filled toys and soft-filled parts of a toy, containing fibrous filling material shall have at least one covering such that, after tension test, it shall not be possible to insert the front part of a 12 mm diameter rod with a fully radiused end through any one opening in the seam or cover material by more than 6 mm, using a maximum force of 10 N.



Standards:

EN-71-1

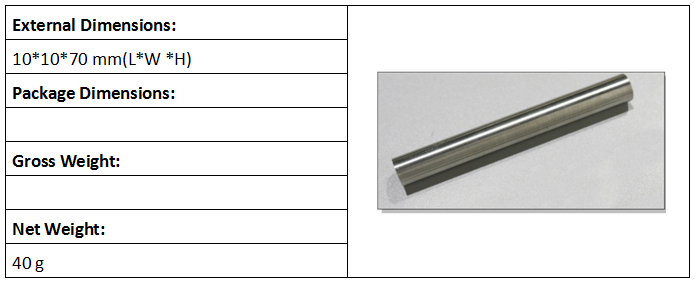

Dimensions

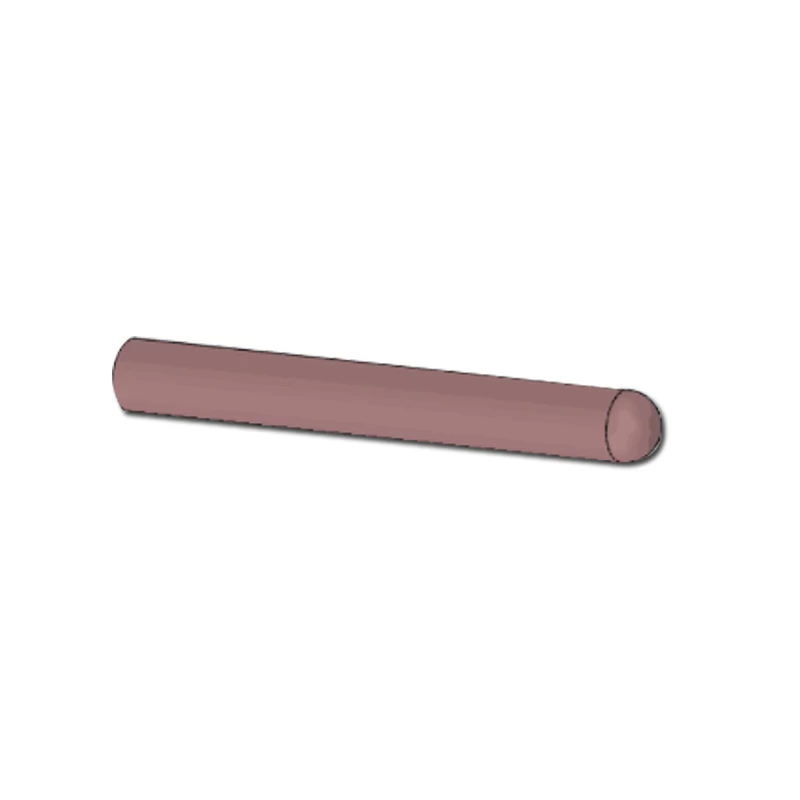

Feeler Rod

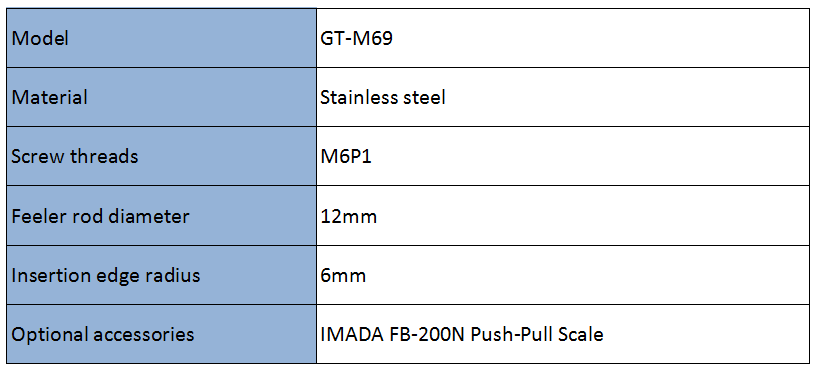

Key Specifications



Feeler Rod
