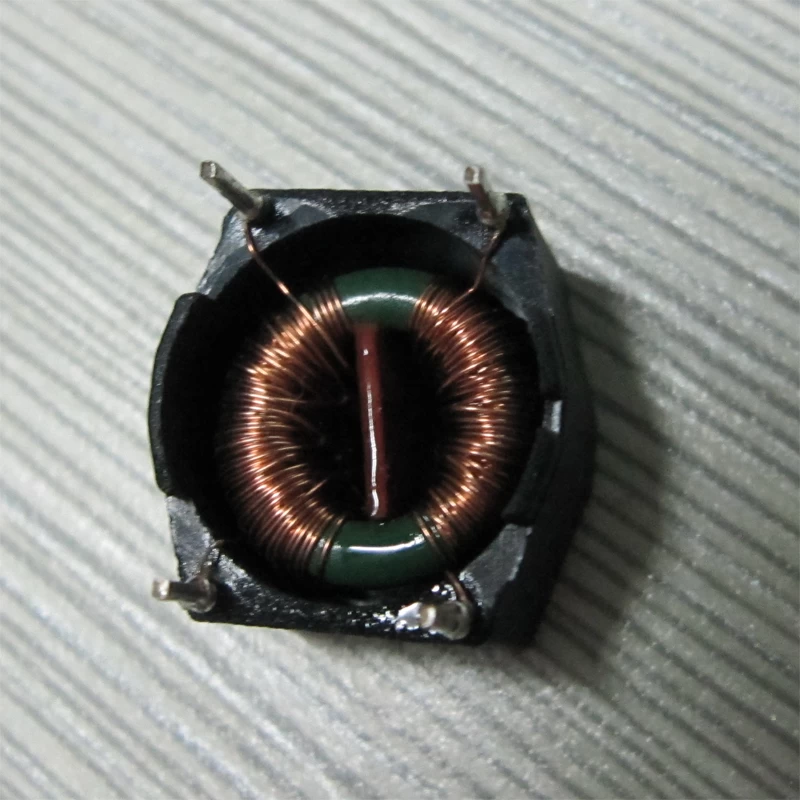

Encapsulated Common Mode Chokes High Frequency Toroidal Inductor

Encapsulated common mode inductor mainly used in electronic devices EMI radiated noise suppression, PC USB interface cable for PC and peripheral, 1394 lines, DVC, set-top boxes, LCD panels, low-voltage differential signaling (LVDS).



High quality and factory price common mode choke, drum core inductor, rod core inductor, large current inductor, air coil inductor, three/four phase common mode choke, dimmer choke for EMI suppression, etc.


Quick Details

Part Number: MCT Case Potting H22C Series Common Mode Choke



Brand name: MCT

Type: Choke Inductor



Custom made: Available

Testing frequency: 1KHz/0.25V



Logo: Can be customized

Operating temperature:-40°C~+105°C.



Shipping: Air, Ship, etc

Certification: ISO9001,ROHS,CE



MOQ: Any quantity

Lead time: 25 days after payment



OEM: Available



Part Information

Product Name: Encapsulated Common Mode Chokes High Frequency Toroidal Inductor

Applications: Low Frequency AC Reactor. PC USB interface cable. Solar Power System. LCD panels. Power Conditioning System. Wind Power System. Automatic Drive Machine. RFI Suppression Choke

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

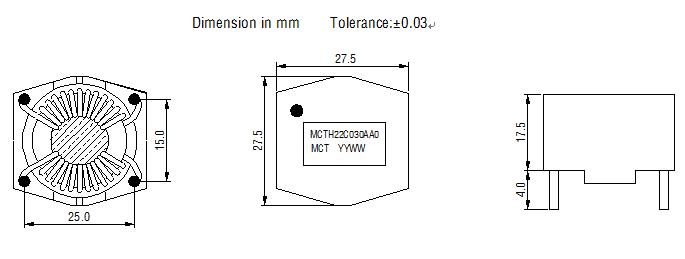

Product Specification

electronic transformer common mode choke inductor manufacturer

Typical electrical parameter

MCT Part No.

Inductance(mH) min

DC Resistance(Ω)max

Rated Current(A)

MCTH22C331A10

33.0

0.50

1.0

MCTH22C251A12

25.0

0.35

1.2

MCTH22C151A15

15.0

0.20

1.5

MCTH22C101A18

10.0

0.15

1.8

MCTH22C680A23

6.80

0.12

2.3

MCTH22C390A30

3.90

0.06

3.0

MCTH22C220A40

2.20

0.03

4.0

MCTH22C100A60

1.00

0.015

6.0

MCTH22C050A80

0.56

0.01

8.0

MCTH22C030AA0

0.33

0.007

10.0


We can decign it. If you have any requests, please contact us, we will give you fast reply
