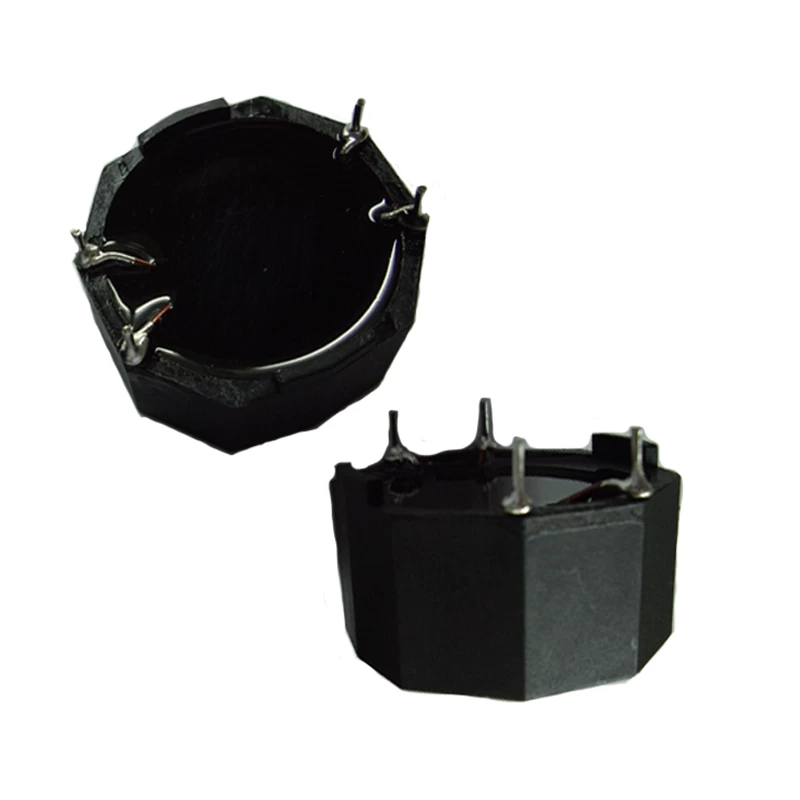

Encapsulated Toroidal Common Mode Choke Coils for RFI Suppression Choke

Horizontal encapsulated common mode choke has excellent frequency characteristics and attenuation characteristics. The selection meets safety specifications. Low leakage flux (magnetic loss). The series inductance range: 10uH-1mH above (differential mode)



Our encapsulated mode choke coils mainly used in electronic devices EMI radiated noise suppression, PC USB interface cable for PC and peripheral, 1394 lines, DVC, set-top boxes, LCD panels, low-voltage differential signaling (LVDS). All common mode chokes accept custom design. The materials we used are ROHS and REACH compliant.



Quick Details

Part Number: MCT Case Potting H10CSeries Common Mode Choke



Brand name: MCT

Type: Choke Inductor



Custom made: Available

Testing frequency: 1KHz/0.25V



Logo: Can be customized

Operating temperature:-40°C~+105°C.



Shipping: Air, Ship, etc

Certification: ISO9001,ROHS,CE



MOQ: Any quantity

Lead time: 25 days after payment



OEM: Available



Part Information

Product Name: Encapsulated Toroidal Common Mode Choke Coils for RFI Suppression Choke

Applications: Low Frequency AC Reactor. PC USB interface cable. Solar Power System. LCD panels. Power Conditioning System. Wind Power System. Automatic Drive Machine. RFI Suppression Choke

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

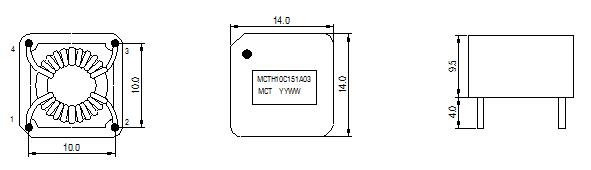

Product Specification

Common Mode Choke Coil High-energy Storage and Best Price good quality


Typical electrical parameter

MCT Part No.

Inductance(mH) min

DC Resistance(Ω)max

Rated Current(A)

MCTH10C151A03

15.0

1.00

0.3

MCTH10C101A05

10.0

0.50

0.5

MCTH10C680A06

6.80

0.35

0.6

MCTH10C390A08

3.90

0.20

0.8

MCTH10C270A10

2.70

0.12

1.0

MCTH10C100A15

1.00

0.06

1.5

MCTH10C060A20

0.68

0.04

2.0

Welcome customized, we can design for you.


If you have any requests, please contact us, we will give you fast reply

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu
