350W 24V 12V enclosed DUAL Switching Power Supply
Description:
K40-H350D24+12 dual 24V 12V medical power supply model can fulfill the requirements of general medical or industrial applications.
Features:
1,350W dual output Switching power supply 24V 12V with High efficiency and high reliability;
2, 350W dual enclosed power supply built-in filter, low output noise;
3, 350W SMPS Built-in DC fan forced air cooling;
4, 100% full load aging test;
5, Overcurrent, overvoltage, overtemperature, short circuit.
|
Parameter
|
|
Item NO.
|
K40-H350D24+12
|
|
Output
|
Output voltage
|
+24VDC
|
+12VDC
|
|
Rated current
|
12A
|
5A
|
|
Current range
|
0-12A
|
0-5A
|
|
Rated power
|
288W
|
60W
|
|
Ripple noise
|
240mVp-p
|
120mVp-p
|
|
Output accuracy
|
±2%
|
±2%
|
|
Line Regulation
|
±1%
|
±1%
|
|
Load Regulation
|
±1%
|
±1%
|
|
Set up,Rise,Keep up time
|
1000ms,50ms,12ms
|
|
Input
|
Input rated voltage
|
200V~240V AC
|
|
Input voltage range
|
176V~264V AC
|
|
Input Current
|
3A Max
|
|
Frequency
|
47-63Hz`
|
|
Full load efficiency
|
90% @230Vac
|
|
Inrush current
|
Cold start 50A/230Vac
|
|
Leakage Current
|
<0.3mA@240V
|
|
Protection
|
Overload protection
|
105~180% Automatic protection
|
|
Output overvoltage protection
|
>150%Automatic protection
|
|
Over temperature protection
|
RT1 position >105°C automatic protection, automatic recovery after abnormal conditions are removed
|
|
Short circuit protection
|
Hiccup mode, automatic recovery after abnormal conditions are removed
|
|
Environment
|
Working temperature, humidity
|
-20~50℃，10~90% RH，No condensation
|
|
Storage temperature, humidity
|
-20~85℃，10~95% RH
|
|
Temperature drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety &EMC standards
|
Safety&EMC standards
|
Meet GB4706.1，EN60950-1 ;GB9254 B, EN55032(CISPR22)CLASS B
|
|
Withstand voltage
|
I/P-O/P:4KV; I/P-FG：1.5KV；O/P-FG:0.5KV AC 1min.
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
Others
|
Dimension
|
185*115*50mm（L*W*H）
|
|
Weight
|
0.9Kg/pcs
|
|
Note
|
1. All parameters 220VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load, the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: test load output from 0% to 100% load change measured.
|

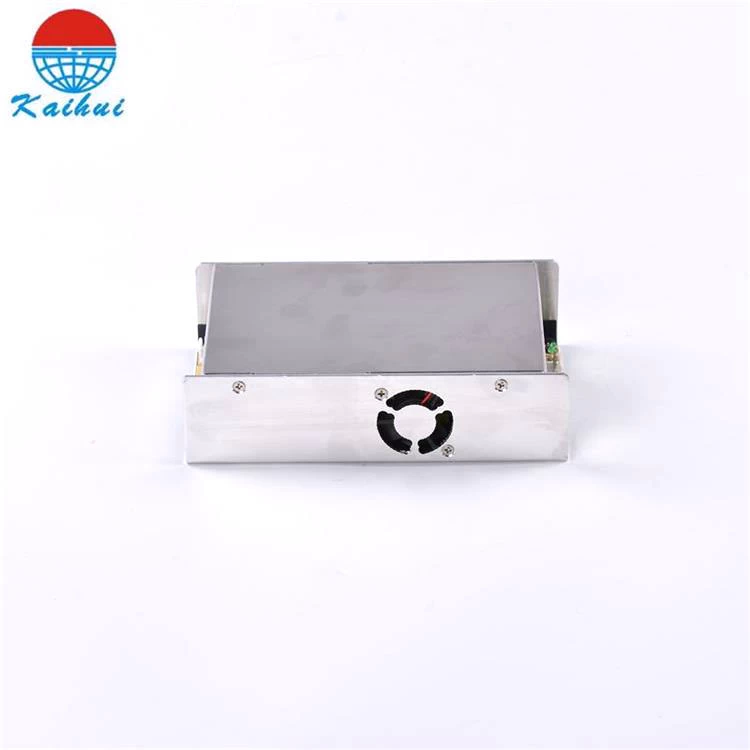

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
