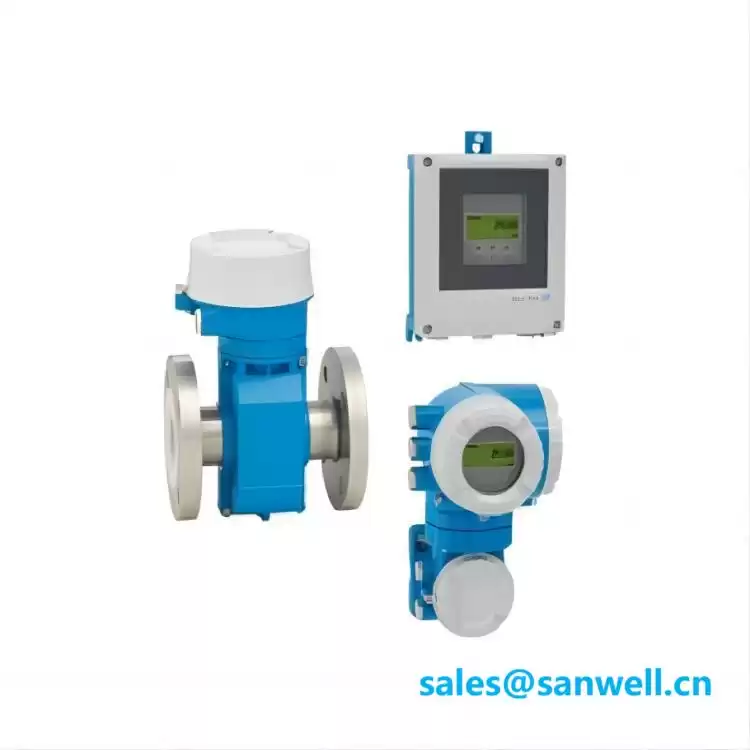

Endress+Hauser Proline Promag P 500 electromagnetic flowmeter brand-new and Original

Endress+Hauser Proline Promag P 500 electromagnetic flowmeter Good quality/In stock

Maximum measurement error

Volume flow rate (standard): ± 0.5% o.r. ± 1 mm/s (0.04 in/s)

Volume flow rate (optional): ± 0.2% o.r. ± 2 mm/s (0.08 in/s)

measuring range ：4 DM ³... 9600 m ³/ H (1... 44 000 gal/min)

Maximum process pressure：PN 40, Cl 300, 20K

Medium temperature range

PFA lining: -20...+150 ° C (-4...+302 ° F)

High temperature PFA lining: -20...+180 ° C (-4...+356 ° F)

PTFE lining: -40...+130 ° C (-40...+266 ° F)

Environmental temperature range

Carbon steel flange: -10...+60 ° C (+14...+140 ° F)

Stainless steel flange: -40...+60 ° C (-40...+140 ° F)

Sensor housing material

DN 15... 300（ ½... 12 "): AlSi10Mg coating on aluminum alloy

DN 350... 600 (14... 24 "): Carbon steel with protective paint coating

Sensor junction box (standard): Aluminum alloy AlSi10Mg coating

Sensor junction box (optional): 1.4409 CF3M, similar to 316L

Material of transmitter casing：Aluminum alloy AlSi10Mg coating; 1.4409 (CF3M), similar to 316L; polycarbonate

4-way output: 4... 20 mA Hart (active/passive)

                       4... 20 mA WirelessHart

                       4... 20 mA (active/passive)

                       Pulse/frequency/switching output (active/passive)

                       Dual pulse output (active/passive)

                       Relay output

Status input: 4... 20 mA input

power supply：24 VDC

                              100... 230 VAC

                              100... 230 VAC/24 VDC (non hazardous area)

Specification:

Brand: Endress+Hauser

Product Origin: Germany

Warranty: 1 Year

Payment: T/T, Western Union

Condition: New with original package

Lead Time: In stock

Model：Proline Promag P 500
