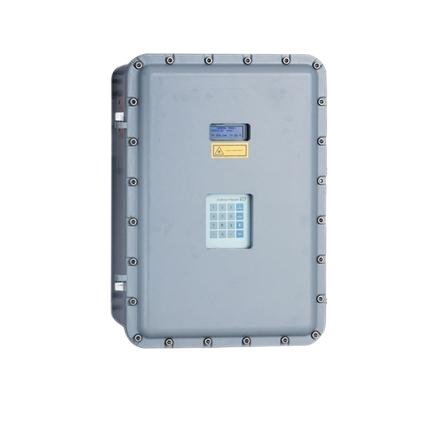

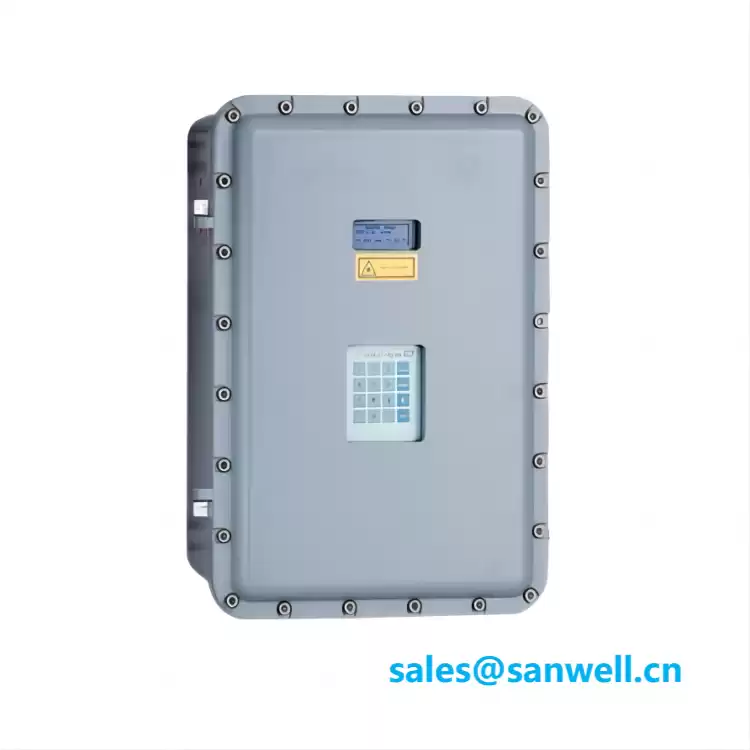

Endress+Hauser SS2100i gas analyzer brand-new and Original

Endress+Hauser SS2100i gas analyzer Good quality/In stock

Advanced gas analyzer, used for measuring hydrogen sulfide (H2S). SS2100i is based on Tunable Laser Diode Absorption Spectroscopy (TDLAS) technology to measure gas concentration without direct contact with the sample gas.

Environmental temperature range

-20... 50 ° C (-4... 122 ° F)

Optional (only applicable to i-2): -10... 60 ° C (14... 140 ° F)

Working pressure range

Inlet pressure: 140... 350 kPa (20... 50 psig)

Sampling chamber pressure: 800... 1200 mbara or

950... 1700 mbara (optional)

Material of analyzer liquid receiving components

316L stainless steel

FKM O-ring

glass

source

120 or 240 VAC ± 10%, 50... 60 Hz; 300W

communication

Analog output: 2 channels of 4... 20mA output, electrical isolation, maximum load

1200 ohms, 24 VDC (measured value)

Analog input: 1 channel 4... 20mA input, electrically isolated, maximum load

1200 ohms, 24 VDC (process pressure)

Serial port: RS232C and Ethernet

Communication protocols: Modbus Gould RTU, Daniel RTU, ASCII

Digital output: 5 channels, concentration alarm, common faults, verification failure

Verification 1 in progress, Verification 2 in progress

Digital input: 2 channels, flow alarm, request verification

Shell material

Electronic components: aluminum, copper free

Laser/sampling chamber housing: aluminum, copper free (only suitable for i-2)

Sampling system housing: 304 or 316 stainless steel

Specification:

Brand: Endress+Hauser

Product Origin: Germany

Warranty: 1 Year

Payment: T/T, Western Union

Condition: New with original package

Lead Time: In stock

Model：SS2100i gas analyzer
