Enduro Full Suspension Electric bike Frame With Bafang Engine
ADVANTAGE:
1, Material: Toho Carbon Fiber (from Japan).
2, EPS + Latex molding process, inner smooth, better strength.
3, Customized painting /decal is acceptable.
4, Strict develop test and mass production test. (exceed 30% of the ISO4210)
PRODUCTS DESCRIPTION:
QTOUREnduro Full Suspension Electric bike Frame With Bafang Engine, with BAFANG motor, you could hides all cables between the rear triangle and the main frame, as well as the cables of electric shock and dropper seatpost.
PRODUCT DETAIL:

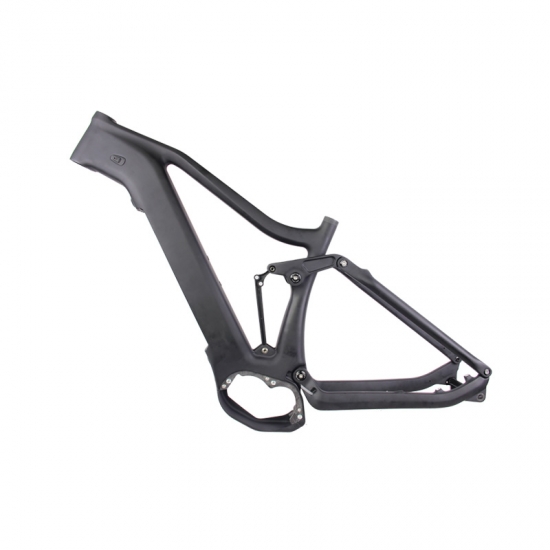

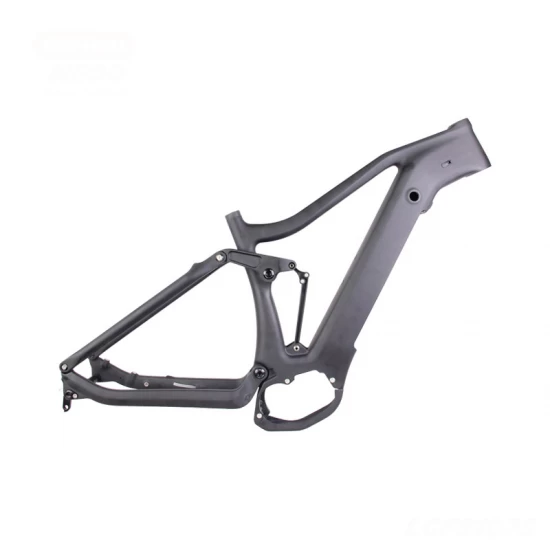

Frame: New Enduro full suspension ebike frameset with Bafang engine
Material: High modulus Toray T700 carbon fiber

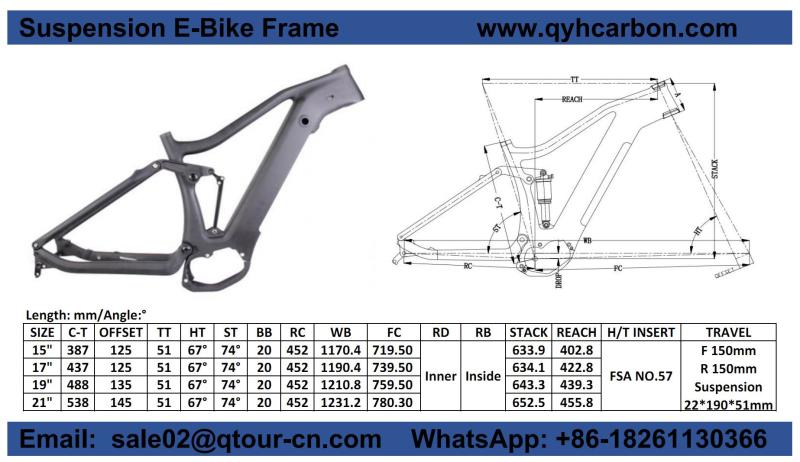

Size: 15, 17, 19, 21 (inch)
Headtube Tapered:1 1/8 "- 1 1/2"head tube, upper 44mm lower 55mm (Headset standard FSA No.57E)
Weight: 3150±45g/Medium
Seatpost Diameter: 31.6mm(37mm seat clamp)

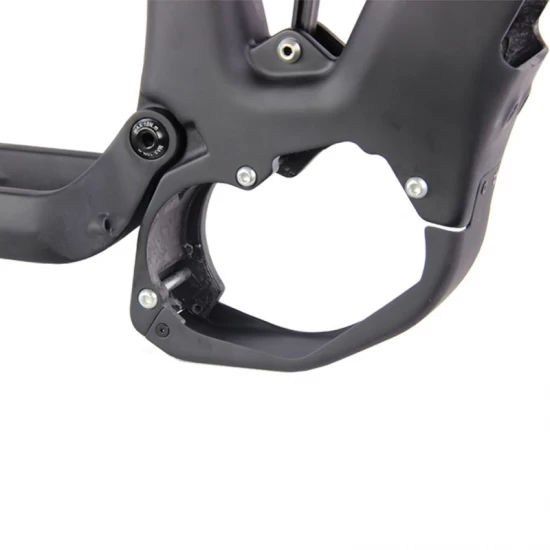

Bottom Bracket: M500(95NM)/M600(120NM) mid drive engine
Battery: Bafang BTF03
Max Tire Clearance:650b*2.8'' and 29er 2.35''
Front travel: 150mm
Rear travel: 150mm
Rear shock size: 22*190*51mm(Standard mount)
Brake Type: Post Mount Disc brake 203mm disc rotor
Dropout: Thru Axle 12*148mm boost
Max Chainring: 32T
Test Standard ISO4210
Warranty 2 years
OUR FACTORY:
1, QYH Carbon frame (QTOUR) position ourself as the high end carbon frame manufacturer.
Our plant covers 8.5 acres, 42,000m2 workshop, 450m2 testing room.
2, Production Capacity per year：
120,000 sets Carbon Bicycles Parts,
(Include Carbon Frame, carbon e-bike frame, carbon Rim, carbon Fork, carbon Handlebar ect)
3, We have over 10 years production experience in carbon fibre business.
4, We have the creative carbon fibre stress calculation model, and in the mean time applied the xpoxy resin ratio,
laser cutting tech, EPS foam molding, monocoque and robot painting equipments.
5, We covers the whole production process: design resin formulation, make pregpreg cloth, molding, painting.
6, Small order and sample order are accepted, OEM & ODM avilable too.
Test Standards: ISO4210. In order to make our products more stiff and strong we have raised up 30% for strict test.
