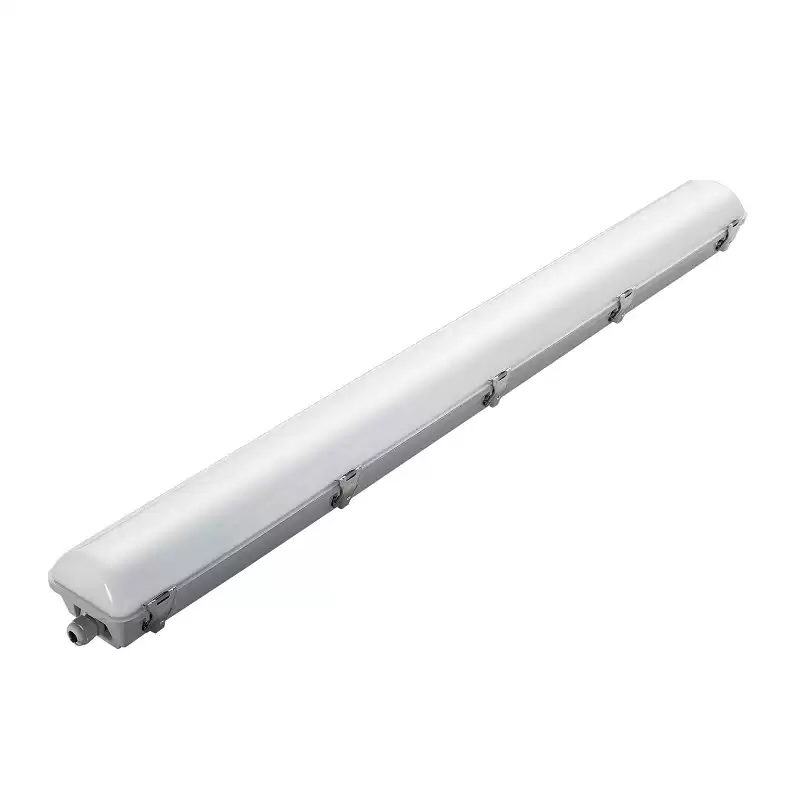

Energy Saving And Waterproof LED Vapor Tight Light
The 470 series Vapor Tight Fixture is an efficient alternative to traditional fluorescent in a variety of commercial and industrial lighting applications. It expands the linear product offering to include IP67 rated fixtures for demanding industrial environments that can be matched with motion, daylight, and wireless controls for increased energy savings. Designed to meet recommended luminance and illuminance requirements for low bay and task level lighting as well as parking garage, stairwell & general lighting. Provide the Bluetooth controller based on Tuya technology, which can be used in conjunction with MORSTAR wireless lighting control system to control fixtures.
Morstar is a trusted,global company with a keen insight into the market. We konw lighting and provide products with excellent quality, reliability and functionality.
FEATURES:
• Premium LG Innotek® High Power LED Chips and a Philips® Advance® LED Driver
• Lumen efficacy up to 140lm/w,Integral 0-10 Volt Dimming
• Weatherproof Polycarbonate Housing and Frosted Diffuser
• Optimized design of double row, high quality of LEDs improves thermal resistance and heat dissipation
• Resistant to vibration, impact, and shock
• IP65 rated protection against the ingress of dust, other solid particulates, and low-pressure jets of directed water
|
SPECIFICATION
|
HVP471A-40W
|
HVP472A-65W
|
|
Power Consumption
|
40W
|
65W
|
|
Equivalent Wattage
|
2 x 32W T8
|
4 Tube Fluorescent
Fixture
|
|
Lumens Delivered
|
5,600 lm
|
9,100 lm
|
|
Efficacy
|
140 lm/W
|
|
CRI
|
>80
|
|
Color Temperature
|
3000K /4000K /5000K
|
|
Input Voltage
|
120-277V
|
CONSTRUCTION:
• 4ft / 5ft Product Dimensions
• Non-corrosive polycarbonate (PC) housing
• Stainless Steel spec grade hasps and clips
• Back and end knockouts
• Available in frosted or transparent diffuser
RECOMMENDED USE:
• Perfect to non-corrosive polycarbonate (PC) housing, designed for wet and dusty area.

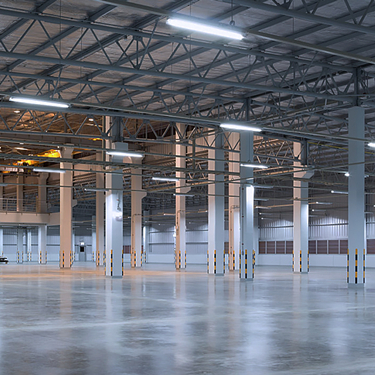

• Idea in Warehouse, Gas Station, Parking Garage etc.

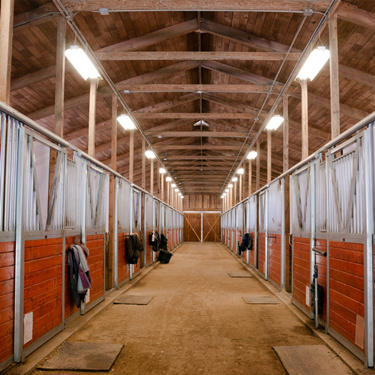

• Perfect for any location where moisture or dust is a concern such as Barn, Car Wash, Walk in Freezer.
WARRANTY:
10-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)
*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -40°F to 104°F.
APPLICATION:
FAQ：
1. What`s the warranty of the lamp?
- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American.And we have LED lighting distribution warehouses in California，Texas and Michigan
6. Can you design new model?
- Yes, we can open new mould according to your drawings and produce.
