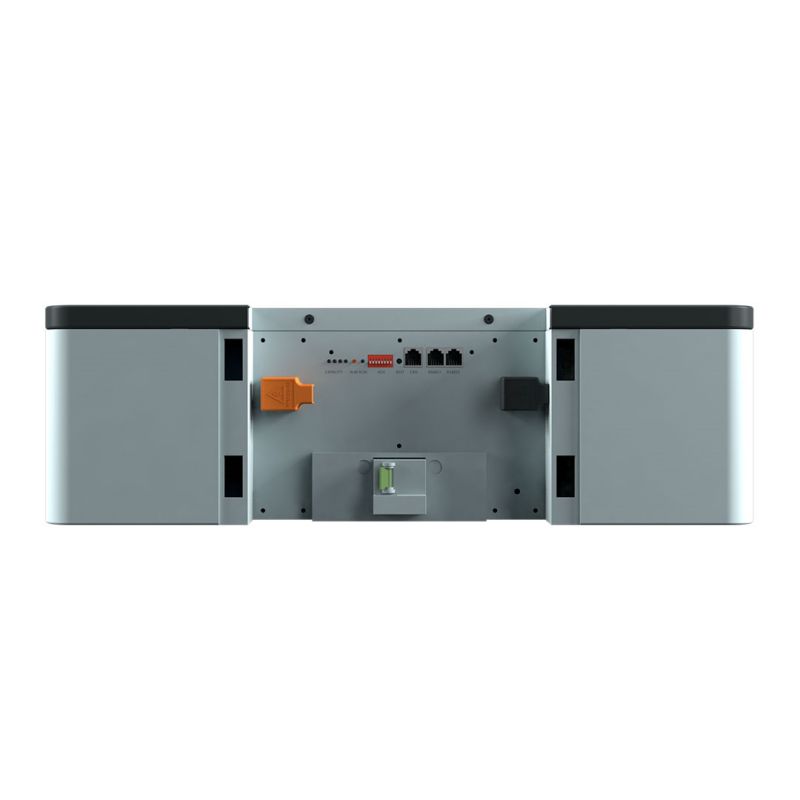

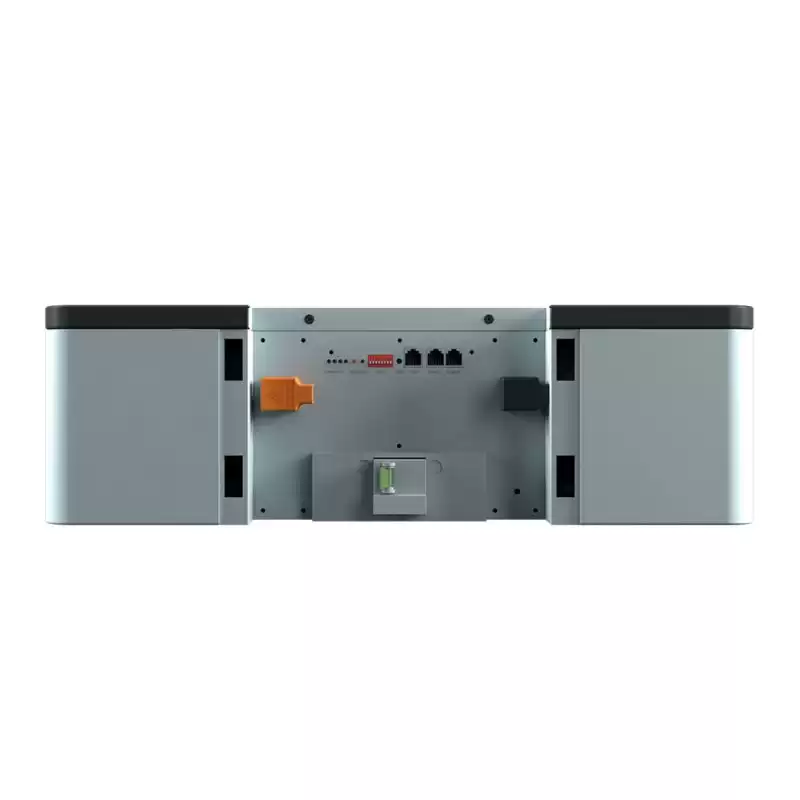

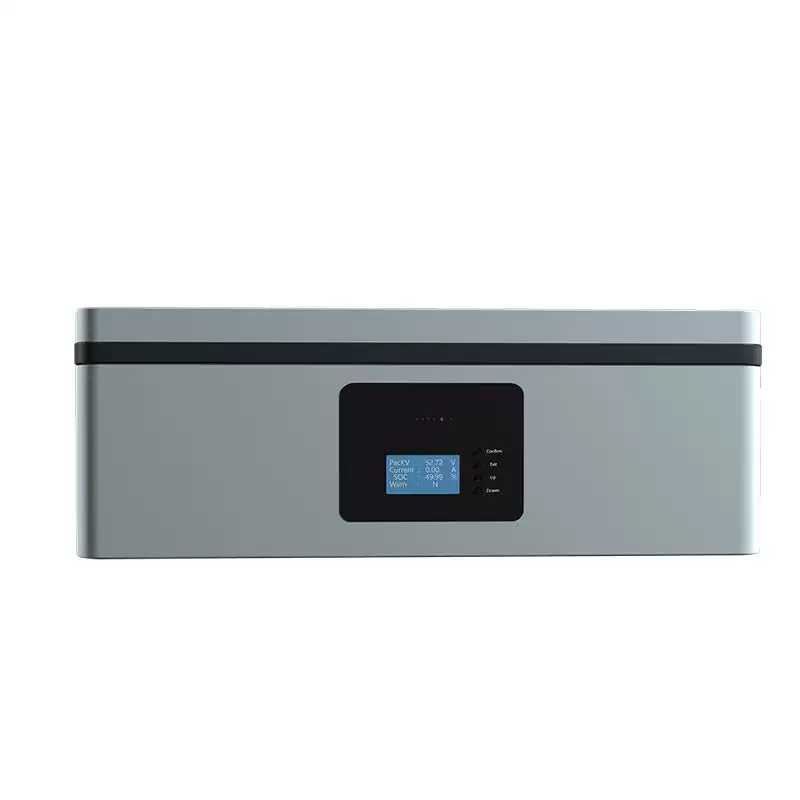

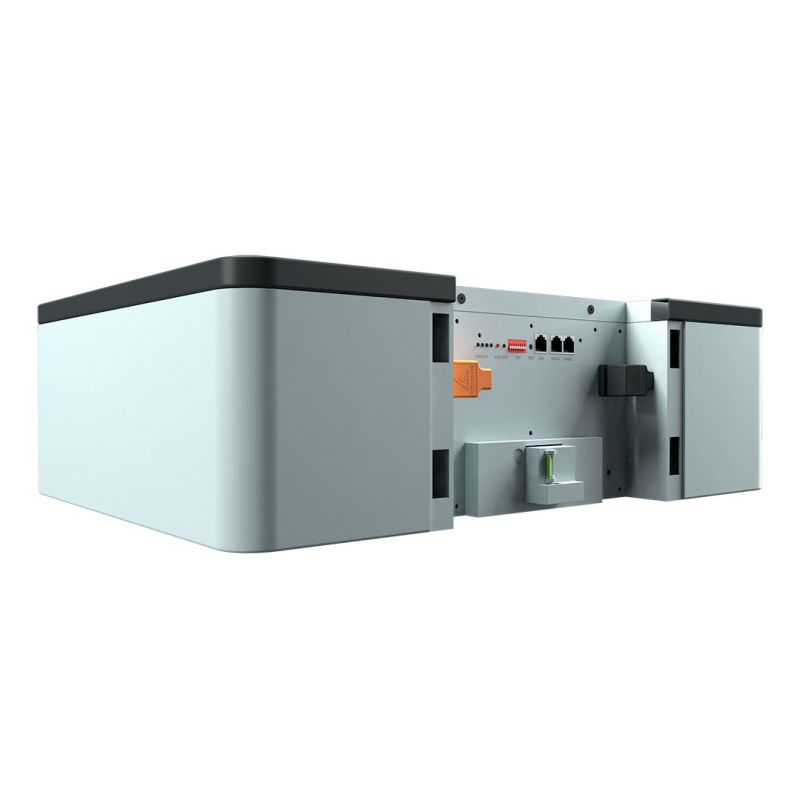

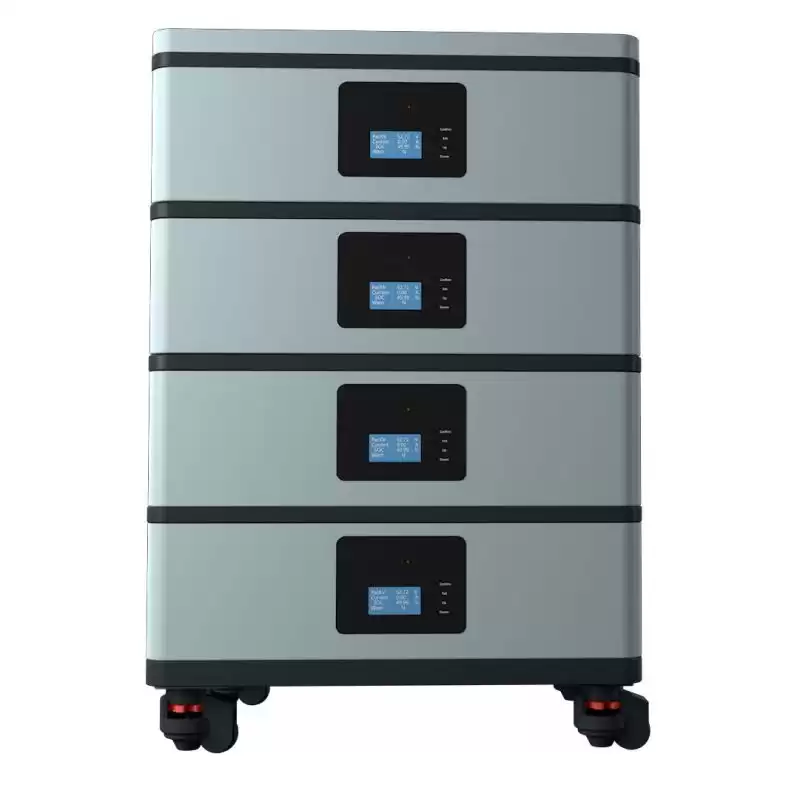

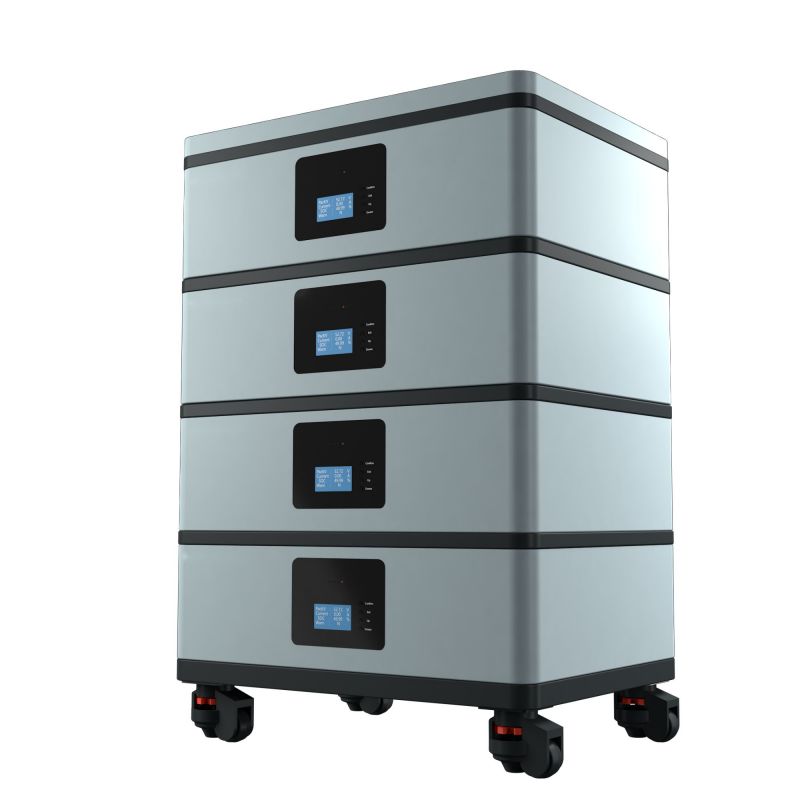

energy storage battery 20kw 10kw All In One stacked portable power storage battery

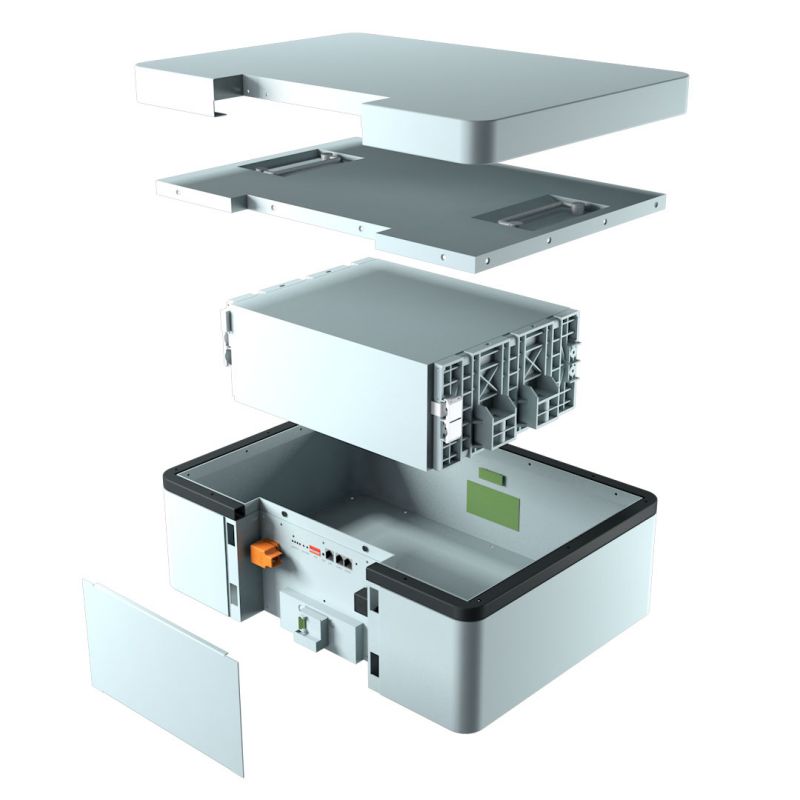

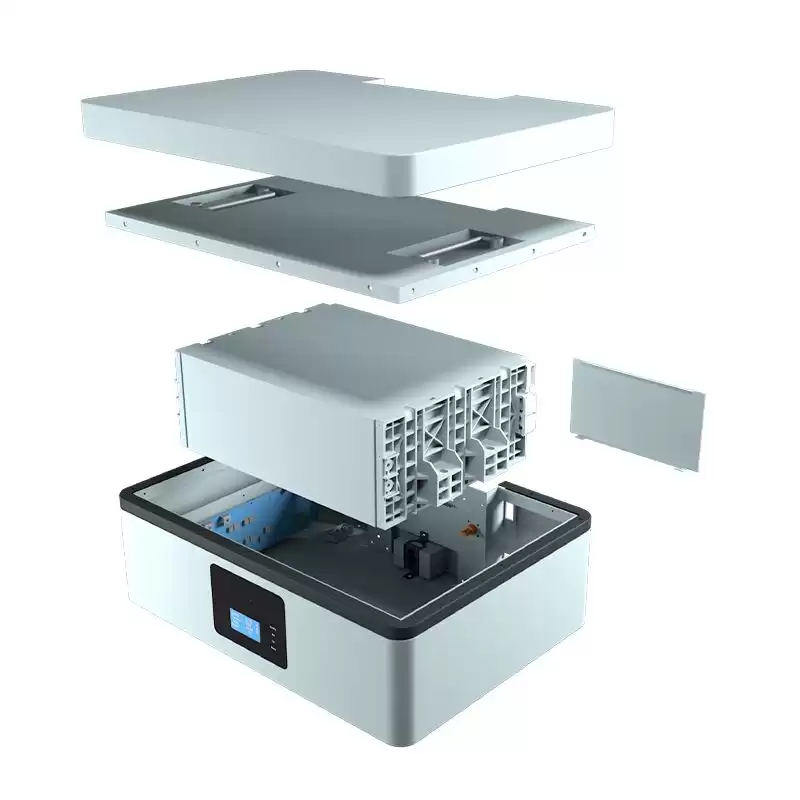

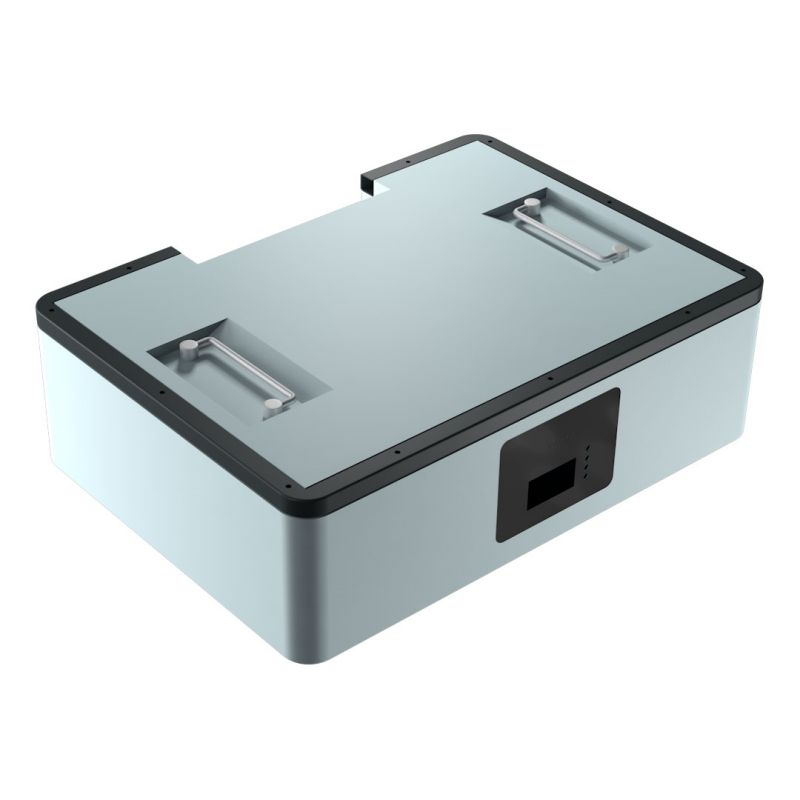

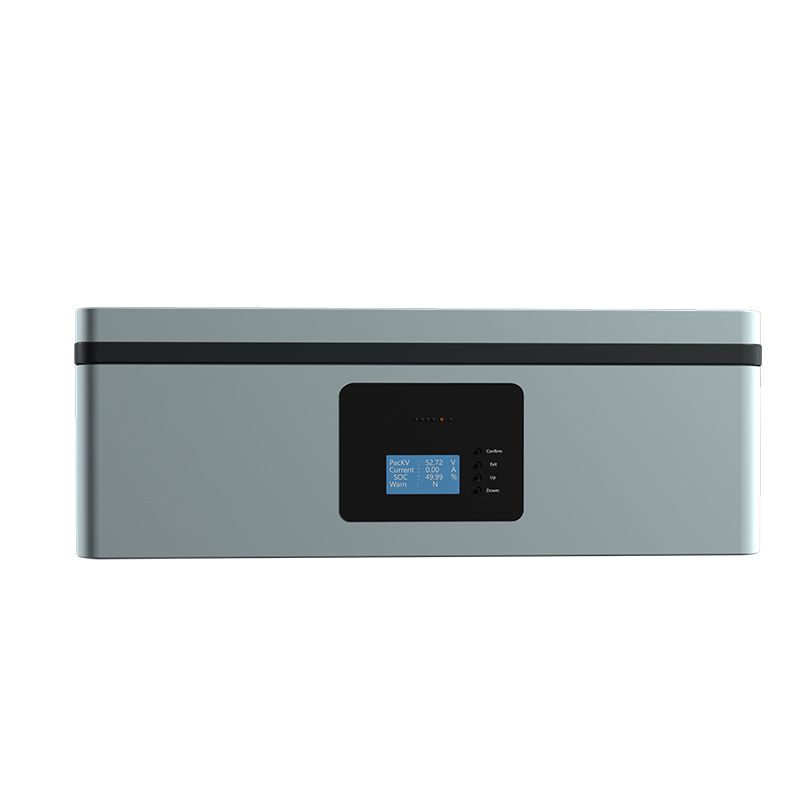

This battery pack System, is applicable both for residential and commercial energy storage system, which is assembled with 3.2V 50Ah lithium iron phosphate cell in 16S2P configuration, And intelligent BMS form 51.2V 100Ah lithium battery system. Each pack support 16packs in parallel to easily expand capacity. Do not mix parallel the battery packs of different brands or models.

  • CertificateCE TUV ISO9001
  • Warranty5 years
Facebook Twitter Pinterest LinkedIn 分享
Details Images
Product Paramenters
Items
Specifications
Rated energy(kWh)
5.12KWh
Configuration
2P16S
Nominal Voltage(V)
51.2V
Working Voltage(V)
42V~58.4V
Nominal Capacity(Ah)
100Ah
Rated charge/discharge Current(A)
50A/100A @25±2℃
Maximum charging current
100A@25±2℃
Maximum discharge current
100A @25±2℃
Working Temperature
0～40℃(Charge) -20～40℃(Discharge)
Humidity(%)
5~95%
Altitude Limited(m)
0-3000m
Weight(Kg)
48Kg±3kg
Dimension(mm)
618×450×208.5mm
Storage temperature and humidity
-10℃~35℃(Within one month of storage)
25±2℃(Within three months of storage)
65%±20%RH
weight
48kg±3kg
cycle life
6000 cycles @25℃
50ACharge and discharge current 80%DOD
IP grade
IP20

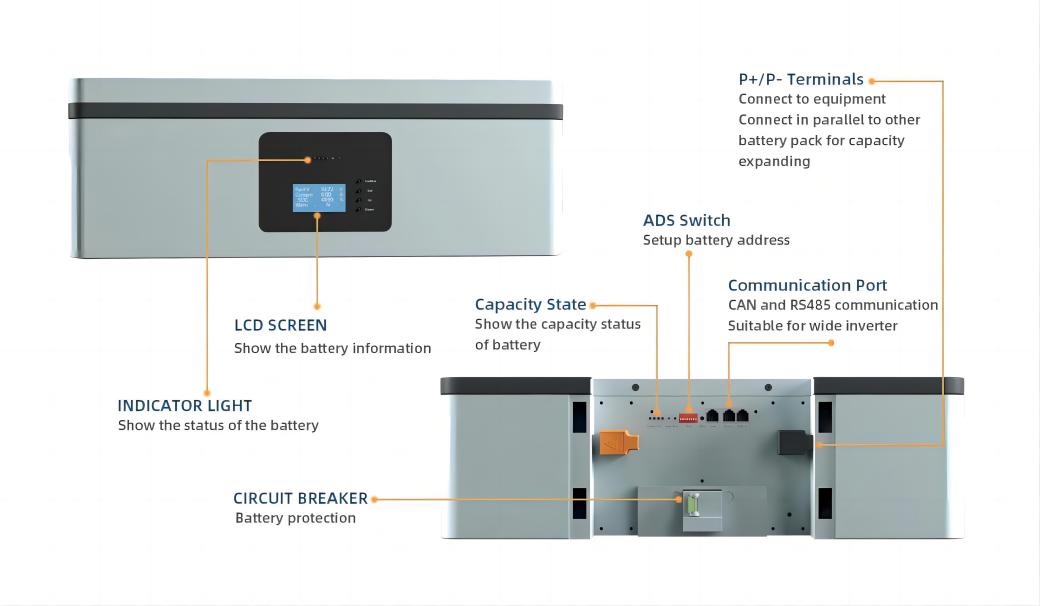

Communication mode
CAN&RS485

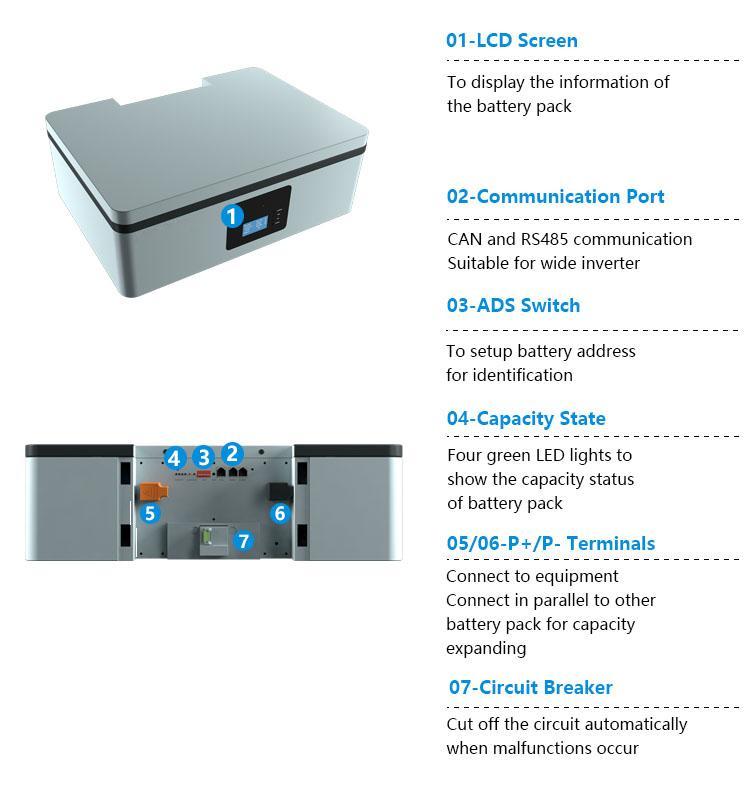

Products Description
* High safety lifepo4 battery
* Ten year warranty
* Multi-level of protection
* High energy density
* Support 485 and CAN communication
* Competitive Price (Order large quantity of this 48v lifepo4 battery pack, contact the sales to get the lowest price )
Company Profile
Certifications
Product packaging
FAQ
Q1: How to choose a right system and products?
A1: Tell us your requirements, then our seller will recommend a suitable product and system to you.

Q2: The advantages of home photovoltaic system
A2: Solar photovoltaic power generation performance is stable and reliable, with a service life of more than 25 years; Small
investment, big income;zero pollution;Low maintenance costs;
Q3: Why choose us?
A3: FOTOVO have been engaged in new energy power generation for more than 16 years. Our products and services cover more than 39 countries. Our R&D team is composed of top experts in various fields. We are committed to providing first-class solutions for PV power plants.
Q4: What is the warranty of solar system?
A4: 5 years for whole system,10 years for inverter,modules,frame.And we can make sure our products will through very strictly testing,and then send to you.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.And we have offices in many
countries,if you have problems,we can arrange people to help you solve problem.
Q6: What about the package?
A6: Strict double-layer packaging design,Rigorous vibration testing.Ensure that the product is not damaged during transportation.
