Engine Control Cable Fit For Yamaha Suzuki Mercury in Boat
33C Engine cable
Products Details:
supply control cable and push pull cable, such as throttle cable, choke cable, brake cable, shift cable etc, 33C, 43C cable available
Long service life, easy movement with minimum lost motion.
An easy-to-install, easy-to-operate flexible push-pull cable for remote control.
Extremely low friction, small idle travel
High tension strength, small bending radius.
Excellent choice for high corrosion environment.
Approved ISO 9001:2000 certificate.
Grooved cable,swivel type with dust cover.
Cable Choice

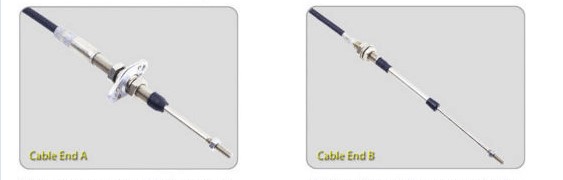

Cable End A ,Mainly used to control multi unit value and pump. Mode of motion : line motion , with small installation size, With a disc can increase swivel angle. For both push and pull if no special.
Cable End B, Mainly used to control value, pump, throttle, gear shift and flameout etc. For both push and pul if no special case. It's swivel type with dust cover, fixed by nut.

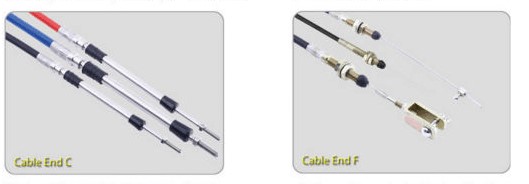

Cable End C ,Mainly used to control value, pump, throttle, gear shift and flameout etc. For both push and pull if no special case. it's swivel type with dust cover.
Cable End F,Mainly used to control pull only cables for hand braking, throttle and flameout etc. Core cable is wire rope or steel wire, only for pull not for push.

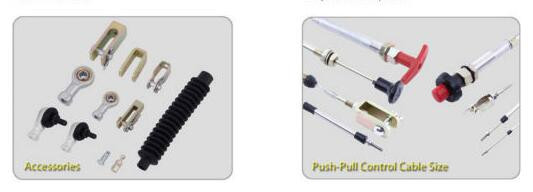

Whaleflo accesories offer wide variety of end terminations and mounting variations.Please contact factory for more information.
Whaleflo push-pull control are available 060.080,100,120 and 140 series cables, Cable details see page2 such us cable effort, cont resistance and operating conditions help yc determine cables series.

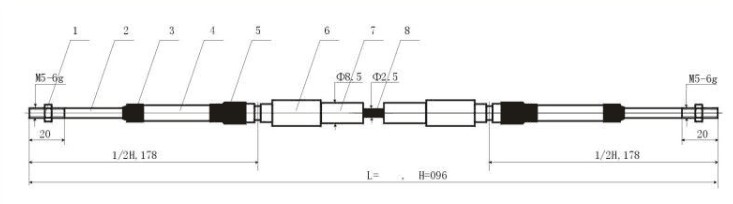

33C cable drawing
