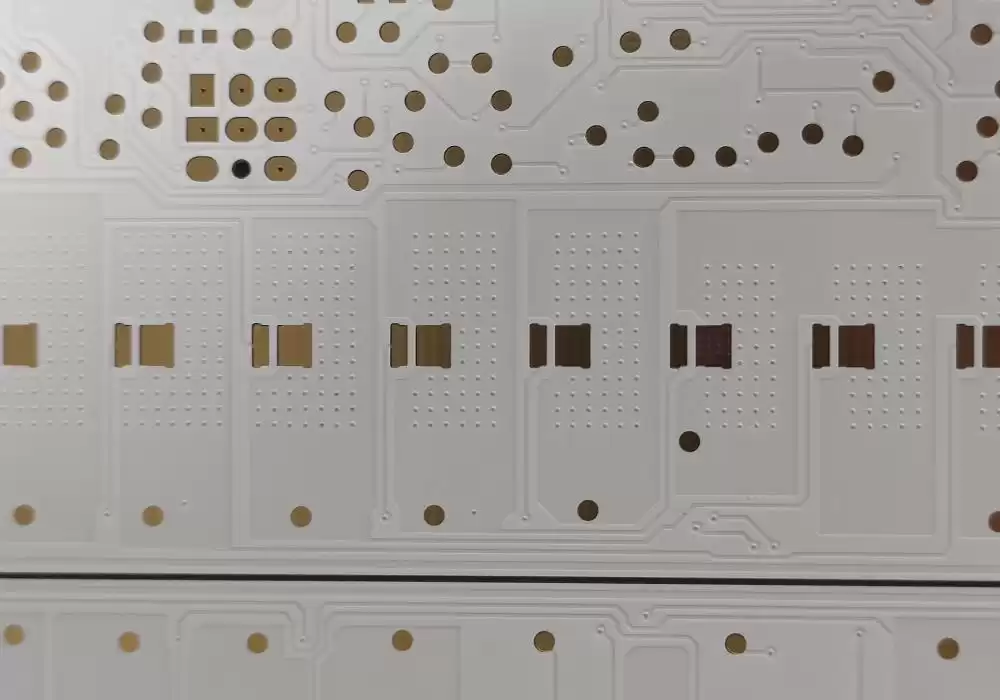

Specification:
-
Material: FR4 PCB
-
Layer count: 2 layers
-
Board thickness: 1.6mm
-
Finish copper thickness: 1.0 oz
-
Surface treatment: ENIG ( Immersion Gold )
-
Application: LED lighting
Our Capability:
Nickel
& Gold thickness for ENIG
|
Nickel: ≥100u"(2.54um)
Gold: 1-3u"(0.025-0.076um)
3-5u"(0.076-0.127um)
|
Immersion
silver thickness
|
8-16u"
(0.2-0.4um)
|
Nickel
and gold thickness for flash gold plating
|
Nickel: ≥100u"(2.54um)
Gold: ≤60u"(1.524um)
|
Solder
thickness on SMD Pad (HASL) (MIN.)
|
40u"(1.0um)
100u" (2.54um)
|
Solder
thickness without SMD Pad (HASL) (MIN.)
|
40u"(1.0um)
|
PCB Manufacturing Process Flow:
More details,refer to https://en.gjzpcb.com/blog/pcb-manufacturing-process-flow_b6
FAQ:
A. Why choose High Precision Technology as PCB supplier?
-- High Precision Technology specialises on PCB manufacturing since 2011 with rich experiences. We mainly use KB & Shengyi Brand laminiate, Rongda & Taiyo brand oil and strictly compliance to IPC-6012 class 2. In our Hunan new factory, all procedures are made in-house. The quality and price can be controlled effectively. If you are still looking for a suitable supplier of PCB fabrication, contact us, we will supply professional and flexible support.
B. What’s kind of certificates do you have?
-- We have certificate ISO9001, ISO14001, UL, TS16949 etc.
C. What's lead time?
-- The lead time can be negotiable to meet your demands.
D. What is MOQ (Minimum Order Quantity)?
-- There is no MOQ for new PN, sample is welcome.
E. What informations need to be supplied for quote?
-- Order quantity, Gerber file, PCB specification ( base material, layer, PCB finished thickness, base copper thickness, surface treatment, solder mask color, and others if you have )
F. Is the files for quote or manufacturing safer?
-- Yes, it is safe as we are professional PCB manufacturer and Non-disclosure agreement can be signed if you need. All documents from customers are never shared with any third parties.
G. When can the quotation be supplied?
-- All quotation can be supplied within 24 hours.
More enquiry, welcome to send us email. We will always give you professional service with 24H/7D online support.
