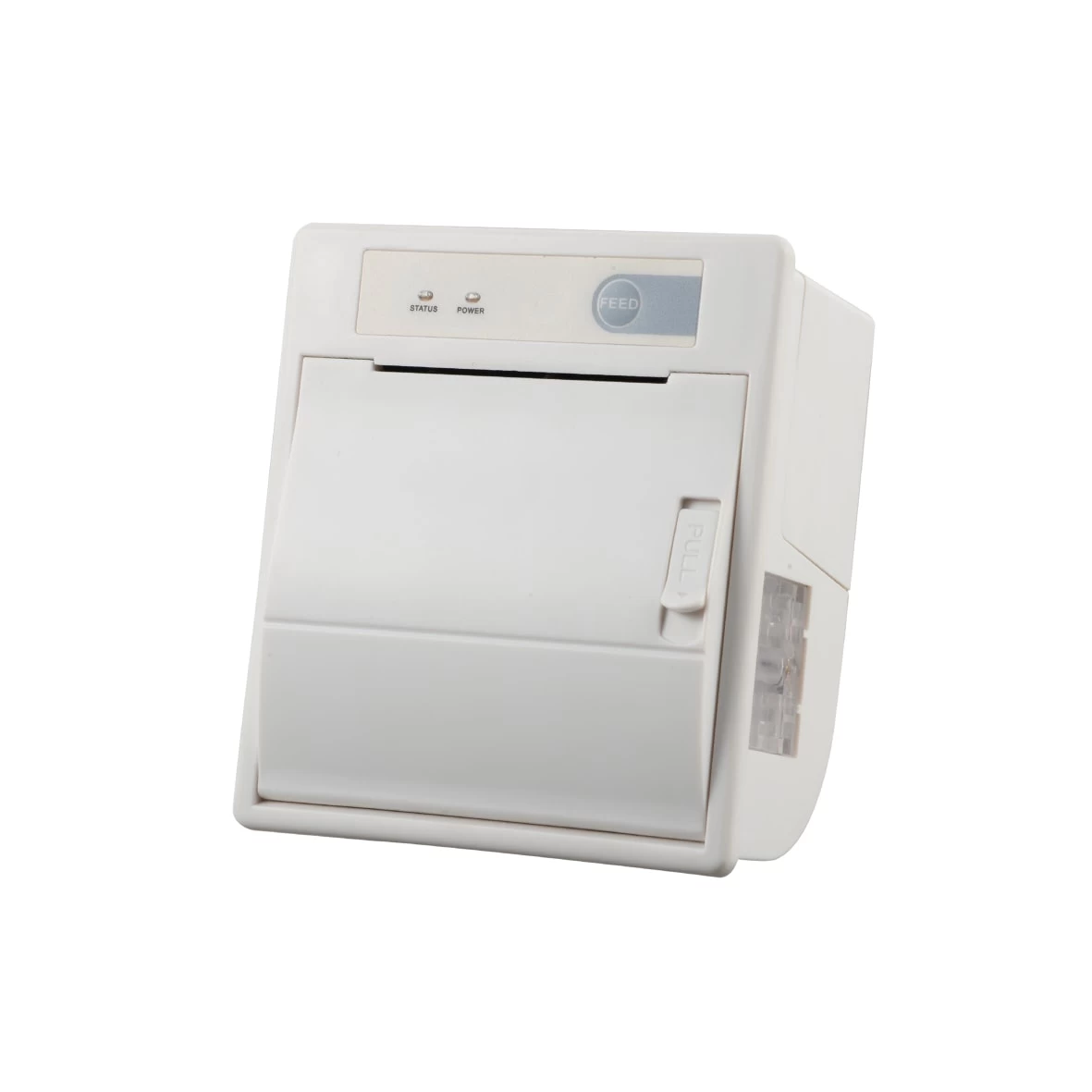

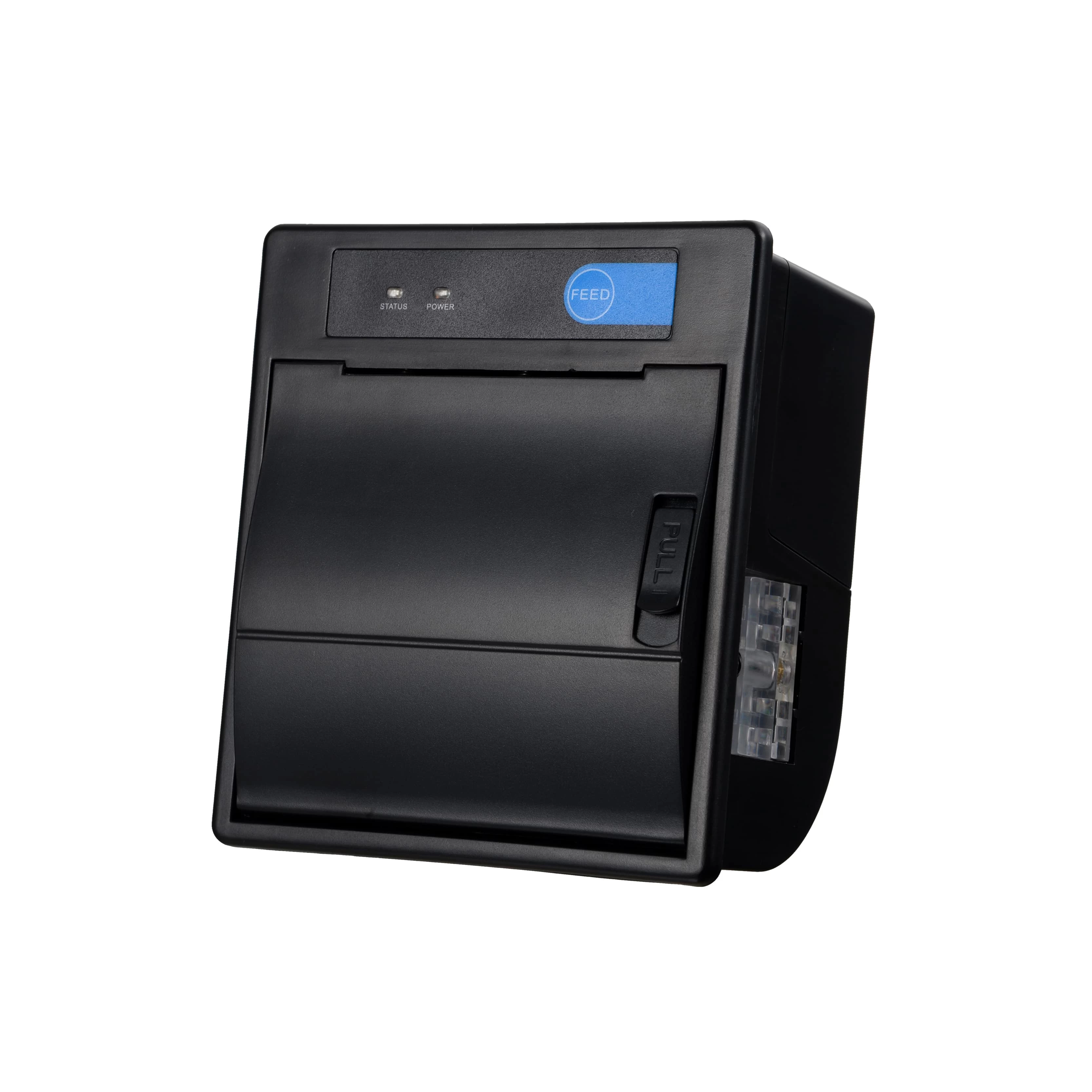

EP-260CH 58mm width high-speed mini panel mount thermal printer with auto-cutter
EP-260CH is a mini panel receipt printer with auto cutter. It could be embedded to any kind of kiosk, instruments and meters.
Feature:
1. Interface:(RS232/TTL)+USB
2. Power supply: DC24V
3. Auto cutter: full/partial cut

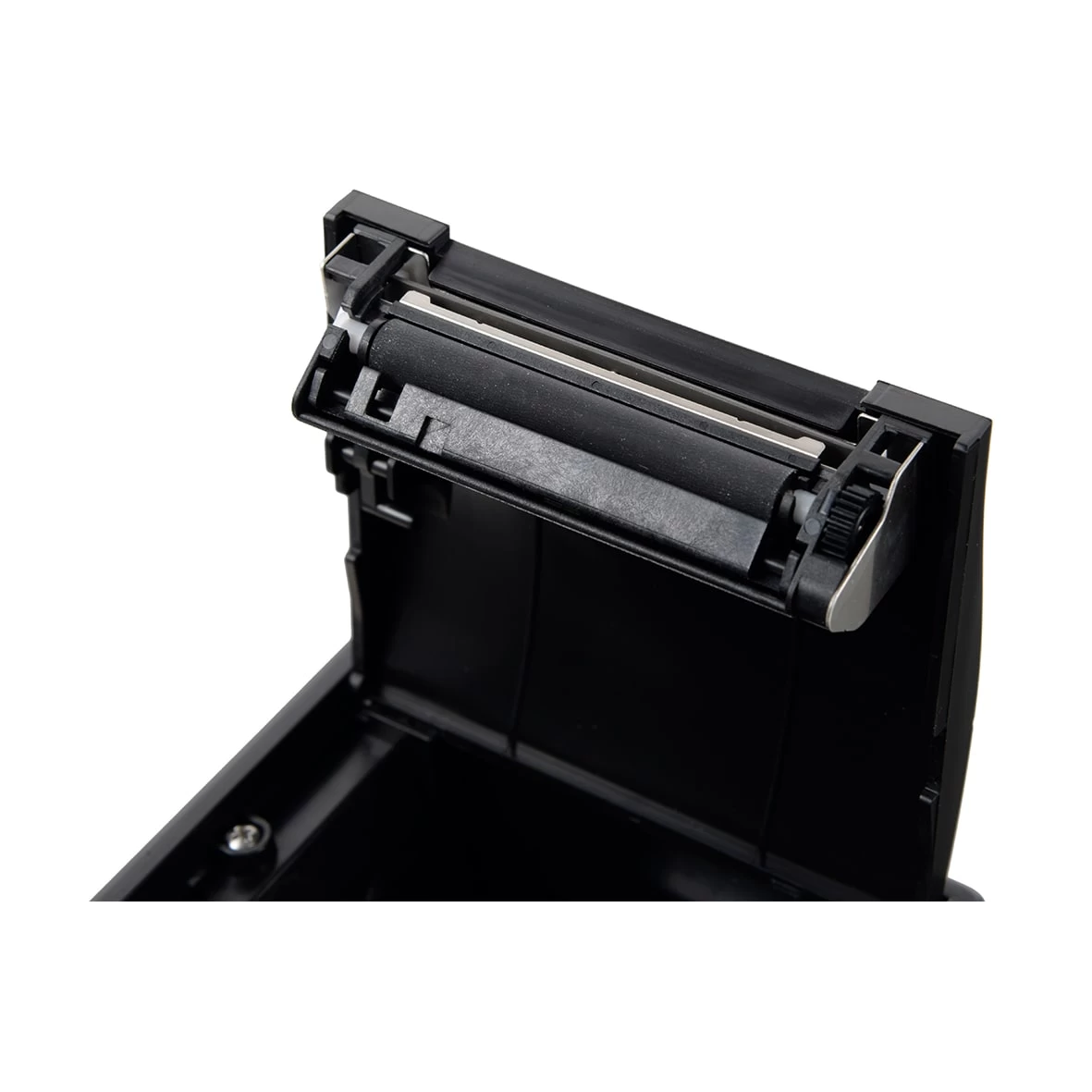

4. Easy paper loading
5. Low noise thermal printing
6. Front panel make paper replacement easily
7. Color:Black/White
Specification:
| Model No. |
EP-260CH |
| Print |
Printing method |
Thermal Line Printing |
| Printing speed |
150mm/s |
| Resolution |
203dpi(8dots/mm) |
| Printing width |
48mm |
| Character |
Character Set |
ASCII,GBK,BIG-5 etc. |
| Print Font |
ANK:9×17,12×24,Chinese:24×24 |
| Character per line |
Font A:32;Font B:42 |
| Paper spec. |
Paper Type |
Thermal Paper |
| Paper Width |
57.5±0.5mm |
| Paper Thickness |
0.055-0.09mm |
| Paper Roll Diameter |
Max:60mm |
| Roll Core Inner Diameter |
13mm(min) |
| Reliability |
TPH |
100km or more(12.5% print ratio) |
| Cutter |
1,000,000 cuts or more |
| Cutting Method |
Full and Partial cut |
| Interface |
Serial(RS232/TTL)+USB, Cash Drawer port (optional) |
| Power Supply |
DC24V, 2A(average) , Peak:5A |
| Barcode |
1D |
UPC-A,UPC-E,EAN-13,EAN-8,CODE39,ITF25,CODABAR, |
| CODE93,CODE128 |
| 2D |
PDF417,QR Code |
| Physical |
Outline Dimension (WxLxH) |
102×115.5×66mm |
| Installation Port Size(WxL) |
96.3×110mm |
| Insert Depth |
56mm |
| Color |
Black/White |
| Environment |
Operating Temp |
0°C~50°C |
| Operating Humidity |
10%~80% |
| Storage Temp |
-20°C~60°C |
| Storage Humidity |
10%~90% |
Application:
1. Medical Equipment
2. Measureing equipment
3. Security Equipment
4. Analyzing Instrument&Meter
5. Kiosk
Company Information:
We are a professional manufacturer of thermal printers since 2011.Our main products are handheld thermal printer, impact dot matrix printer, panel thermal printer, kiosk ticket printer, POS receipt printer and label barcode printer, etc. We have a wealth of in dependent research and experience, which can effectively meet different customers ODM requirements and help achieve printing simply, efficiently and economically. Currently, Our products are exported to Southeast Asia, South Asia, South & North America, Middle East and Europe, etc.
Our Services:
FAQ:
Q: About samples
A: Samples are available for testing.
Q: Delivery date.
A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order
delivery date approximately 2 weeks.
Q: Payment terms
A: Paypal, western union, T/T in advance, or order in aliexpress.
Q: Warranty
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be
responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with
reasonable price to the customer.
