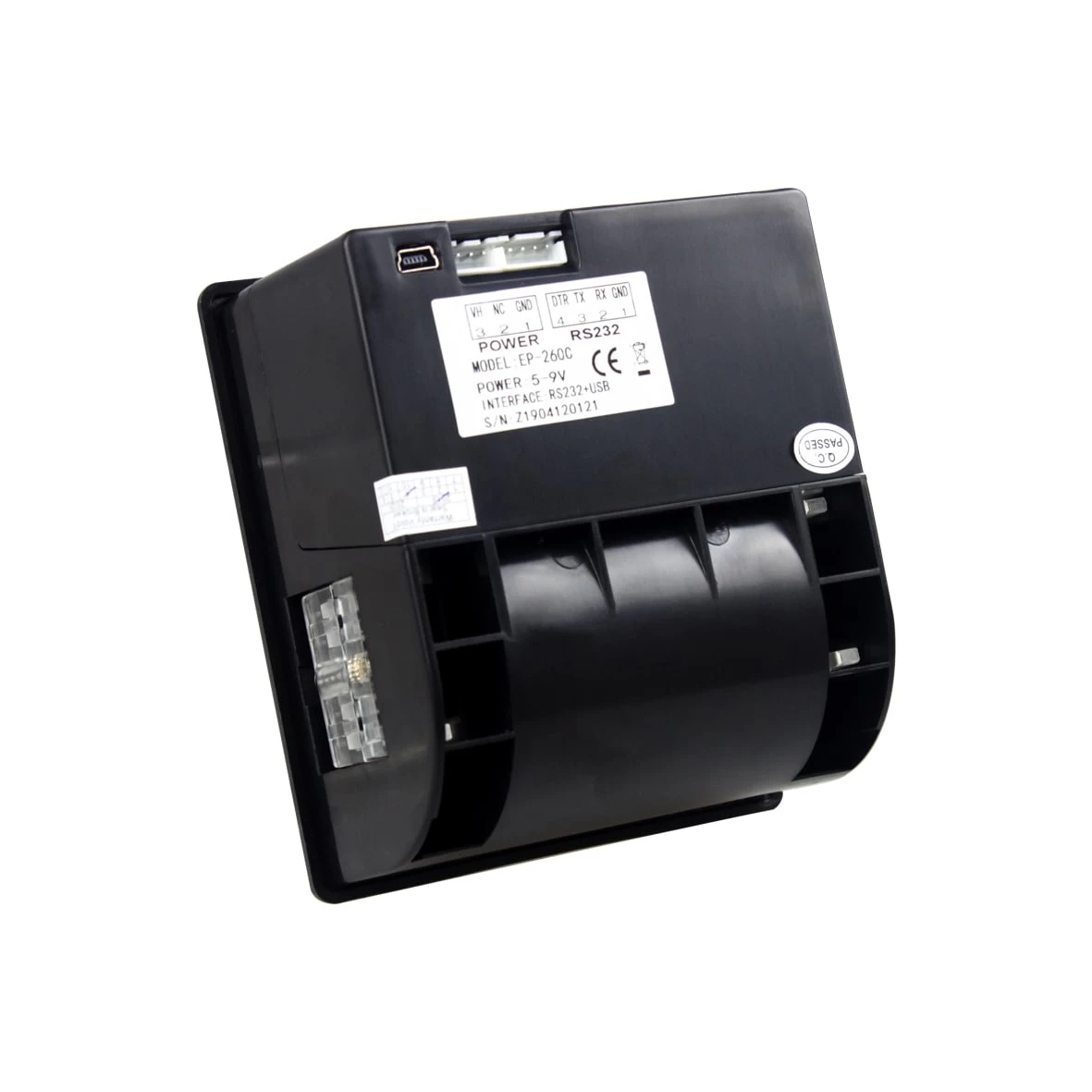

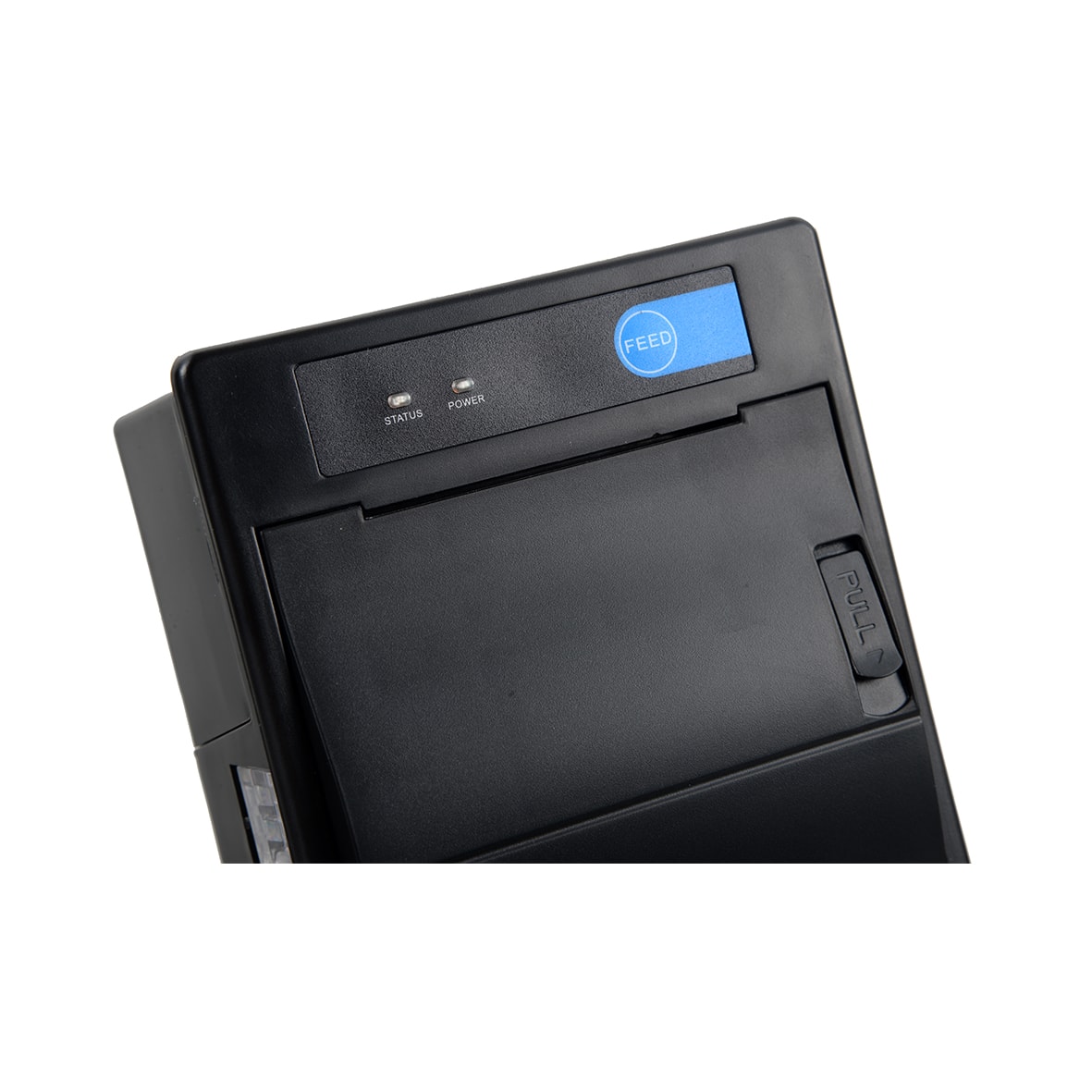

EP-260CL 58mm width mini panel mount thermal printer with auto-cutter
EP-260CL is a mini panel receipt printer with auto cutter. It could be embedded to any kind of kiosk, instruments and meters.
Feature:
1. Interface:(RS232/TTL)+USB
2. Power supply: DC5-9V/12V-24VDC
3. Auto cutter: full/partial cut
4. Easy paper loading
5. Low noise thermal printing
6. Front panel make paper replacement easily
7. Color:Black/White
Specification:
| Model No. |
EP-260CL |
| Print |
Printing method |
Thermal Line Printing |
| Printing speed |
90mm/s |
| Resolution |
203dpi(8dots/mm) |
| Printing width |
48mm |
| Character |
Character Set |
ASCII,GBK,BIG-5 ect. |
| Print Font |
ANK:9×17,12×24,Chinese:24×24 |
| Character per line |
Font A:32;Font B:42 |
| Paper spec. |
Paper Type |
Thermal Paper |
| Paper Width |
57.5±0.5mm |
| Paper Thickness |
0.055-0.09mm |
| Paper Roll Diameter |
Max:60mm |
| Roll Core Inner Diameter |
13mm(min) |
| Reliability |
TPH |
100km or more(12.5% print ratio) |
| Cutter |
1,000,000 cuts or more |
| Cutting Method |
Full and Partial cut |
| Interface |
Serial(RS232/TTL)+USB, Cash Drawer port (optional) |
| Power Supply |
DC5-9V,12-24V, 2A(average) , Peak:4A |
| Barcode |
1D |
UPC-A,UPC-E,EAN-13,EAN-8,CODE39,ITF25,CODABAR, |
| CODE93,CODE128 |
| 2D |
PDF417,QR Code |
| Physical |
Outline Dimension (WxLxH) |
102×115.5×66mm |
| Installation Port Size(WxL) |
96.3×110mm |
| Insert Depth |
56mm |
| Color |
Black/White |
| Environment |
Operating Temp |
0°C~50°C |
| Operating Humidity |
10%~80% |
| Storage Temp |
-20°C~60°C |
| Storage Humidity |
10%~90% |
Application:
1. Medical Equipment
2. Measureing equipment
3. Security Equipment
4. Analyzing Instrument&Meter
5. Kiosk
