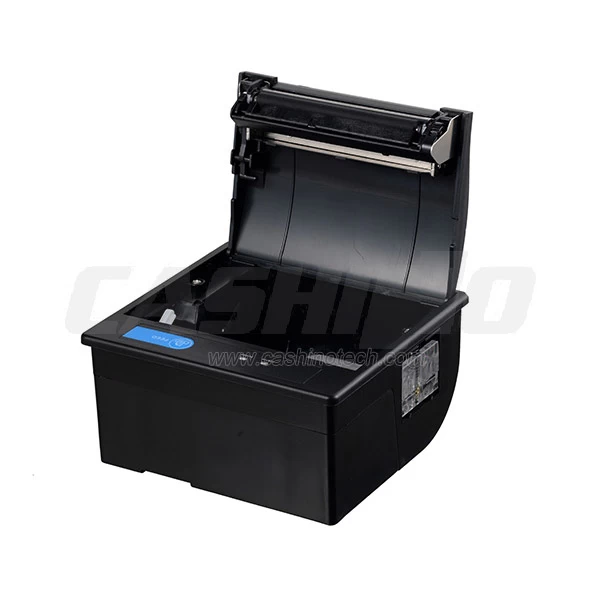

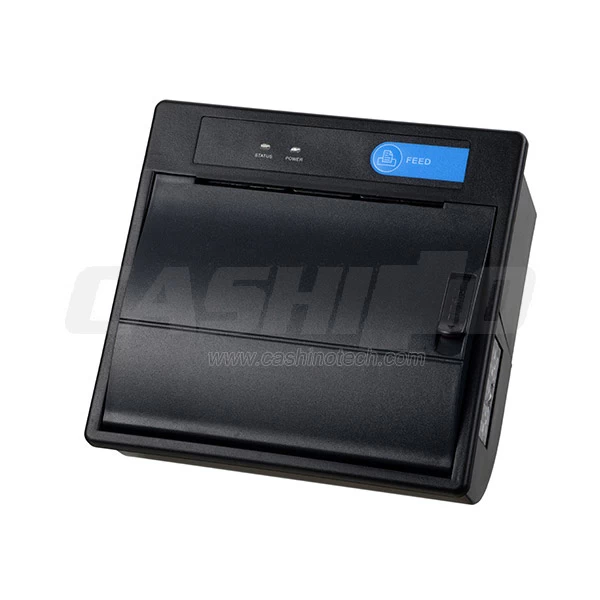

EP-360CL 80mm width mini panel thermal printer
EP-360CL is a 80mm embedded thermal printer with auto cutter, which is widely used in convenience store, supermarkets,
restaurants, bank and so on.
Feature:
1. Interface:(RS232/TTL)+USB
2. Power supply: DC5-9V/12V-24V
3. Easily embedded to any kinds of instruments and meters
4. Smart appearance
5. Easy paper loading
6. Low noise thermal printing
7. Front panel make paper replacement easily
8. Color:Black/White
Specification:
| Model No. |
EP-360CL |
| Print |
Printing method |
Thermal Line Printing |
| Printing speed |
90mm/s |
| Resolution |
203dpi(8dots/mm) |
| Printing width |
72mm |
| Character |
Character Set |
ASCII,GBK,BIG5 |
| Print Font |
ANK:9×17,12×24,Chinese:24×24 |
| Character per line |
Font A:48;Font B:64 |
| Paper spec. |
Paper Type |
Thermal Paper |
| Paper Width |
79.5±0.5mm |
| Paper Thickness |
0.055-0.09mm |
| Paper Roll Diameter |
Max:60mm |
| Roll Core Inner Diameter |
13mm(min) |
| Reliability |
TPH |
100km or more(12.5% print ratio) |
| Cutter |
1,000,000 cuts or more |
| Cutting Method |
Full/Partial cut |
| Interface |
Serial(RS232/TTL)+USB, Cash Drawer port (optional) |
| Power Supply |
DC5-9V/12V-24V, 2A(average), 4A(peak) |
| Barcode |
1D |
UPC-A,UPC-E,EAN-13,EAN-8,CODE39,ITF25,CODABAR,CODE93,CODE128 |
| 2D |
PDF417,QR Code |
| Physical |
Outline Dimension (WxLxH) |
122×115.5×66mm |
| Installation Port Size(WxL) |
116.3×110mm |
| Insert Depth |
56mm |
| Color |
Black/White |
| Environment |
Operating Temp |
0°C~50°C |
| Operating Humidity |
10%~80% |
| Storage Temp |
-20°C~60°C |
| Storage Humidity |
10%~90% |
Application:
1. Medical Equipment
2. Measureing equipment
3. Security Equipment
4. Analyzing Instrument&Meter
5. Kiosk
Company Information:
We are a professional manufacturer of thermal printers since 2011.Our main products are handheld thermal printer, impact dot matrix printer, panel thermal printer, kiosk ticket printer, POS receipt printer and label barcode printer, etc. We have a wealth of in dependent research and experience, which can effectively meet different customers ODM requirements and help achieve printing simply, efficiently and economically. Currently, Our products are exported to Southeast Asia, South Asia, South & North America, Middle East and Europe, etc.
Our Services:
FAQ:
Q: About samples
A: Samples are available for testing.
Q: Delivery date.
A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order
delivery date approximately 2 weeks.
Q: Payment terms
A: Paypal, western union, T/T in advance, or order in aliexpress.
Q: Warranty
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be
responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with
reasonable price to the customer.
