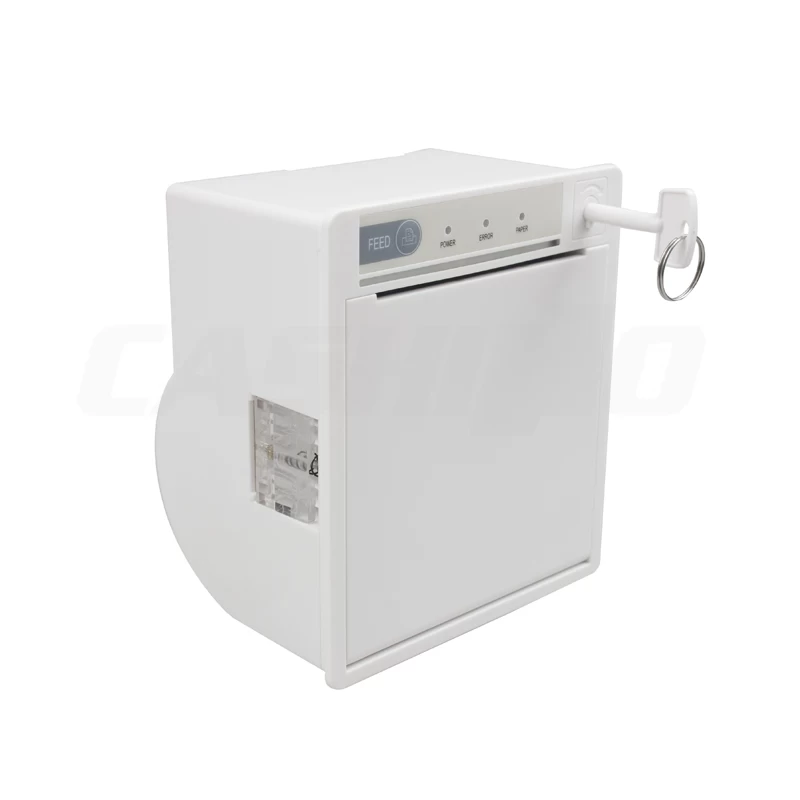

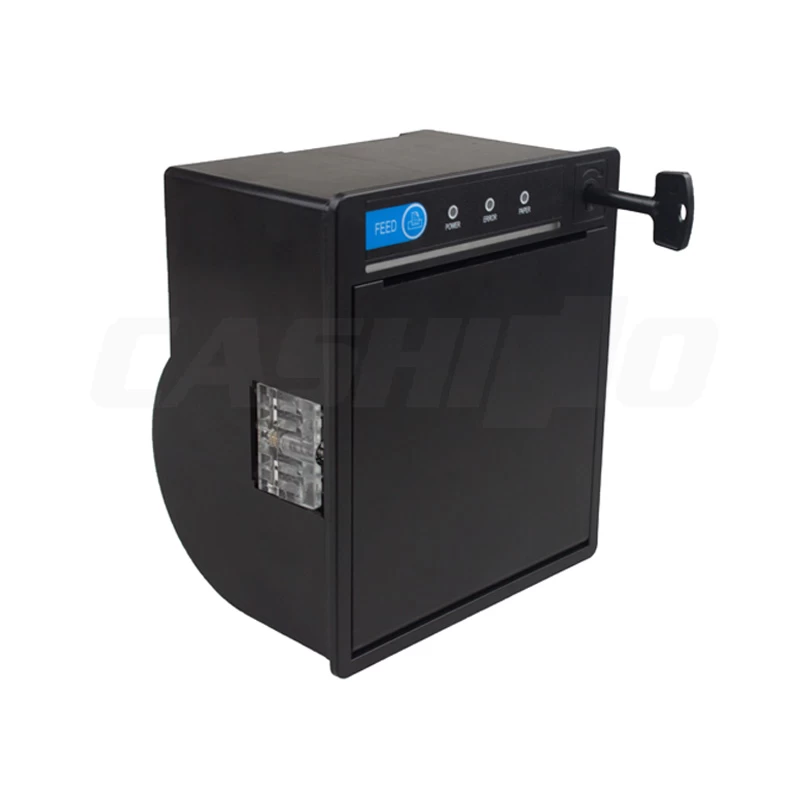

80mm width Thermal Panel Printer With Cover Lock EP-380C
EP-380C is 80mm kiosk thermal printer which is consist of thermal printer head ,cutter and control board. It is used for financial self-service terminals, communication self-service terminals, coupons self-service terminals, ticketing self-service terminals, power self-service terminals, medical self-service terminals, insurance self-service terminals, tax kiosks, self-service terminals such as kiosk terminal equipment, tanker, Queuing machines and so on.
Feature:
1). Easy-installing design
2). Smart appearance
3). Easy paper loading
4). Low noise thermal printing
5). Different interface optional
6). Printer's cover lock
Specification:
| MODEL |
EP-380CK |
| Print |
Thermal line printing |
Thermal Line Printing |
| Printing speed (max.) |
150mm/s |
| Resolution |
203dpi (8dots/mm) |
| Effective printing width |
72mm |
| Character |
Character Set |
ASCII,GBK,BIG5 |
| Print Font |
ANK:9×17,12×24,GBK:24×24 |
| Paper spec. |
Paper Type |
Thermal Paper |
| Paper Width |
79.5±0.5mm |
| Paper Thickness |
55-90μm |
| Paper Roll Diameter |
Max:80mm |
| Reliability |
TPH |
100km or more(12.5% print ratio) |
| Cutter |
1,000,000 cuts or more |
| Barcode |
1D |
UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93 |
| 2D |
PDF417 QR Code |
| Cutting Method |
Full and Partial cut |
| Text and graphic support |
Figure, sample, graph, curve icon, multi-languages |
| Command |
Compatible with ESC/POS command set |
| Detectors |
paper end, paper near end, paper out, paper taken out,cover open |
| Interface |
Serial(RS232/TTL)+USB, Cash Drawer port (optional) |
| Power Supply(Adapter) |
DC24V,2A(average), 5A(peak) |
| Physical |
Outline Dimension |
118.7×136.1×87.5mm |
| Installation Port Size(WxL) |
113×130.4mm |
| Insert Depth |
84.8mm |
| Color |
Black/White |
| Environment |
Operating temp |
0°C~50° |
| Operating Humidity |
10%~80% |
| Storage Temp |
-20°C~60° |
| Storage Humidity |
10%~90% |
Application:
1). ATM
2). Self-service terminals
3). Tax kiosks
4). POS system
5). Retail
Company Information:
We are a professional manufacturer of thermal printers since 2011.Our main products are handheld thermal printer, impact dot matrix printer, panel thermal printer, kiosk ticket printer, POS receipt printer and label barcode printer, etc. We have a wealth of in dependent research and experience, which can effectively meet different customers ODM requirements and help achieve printing simply, efficiently and economically. Currently, Our products are exported to Southeast Asia, South Asia, South & North America, Middle East and Europe, etc.
Our Services:
FAQ:
Q: About samples
A: Samples are available for testing.
Q: Delivery date.
A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order
delivery date approximately 2 weeks.
Q: Payment terms
A: Paypal, western union, T/T in advance, or order in aliexpress.
Q: Warranty
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be
responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with
reasonable price to the customer.
