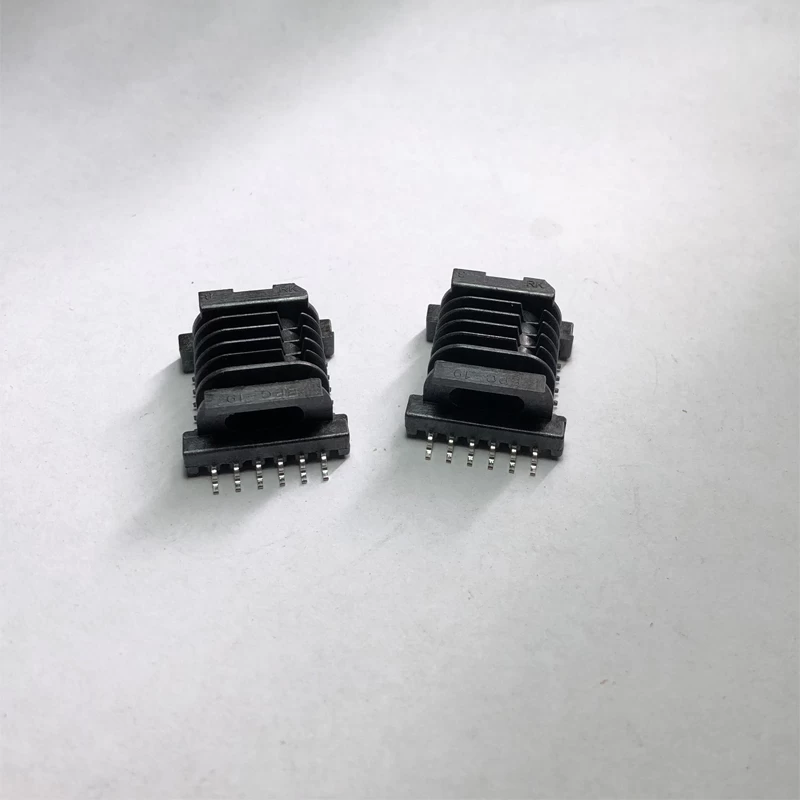

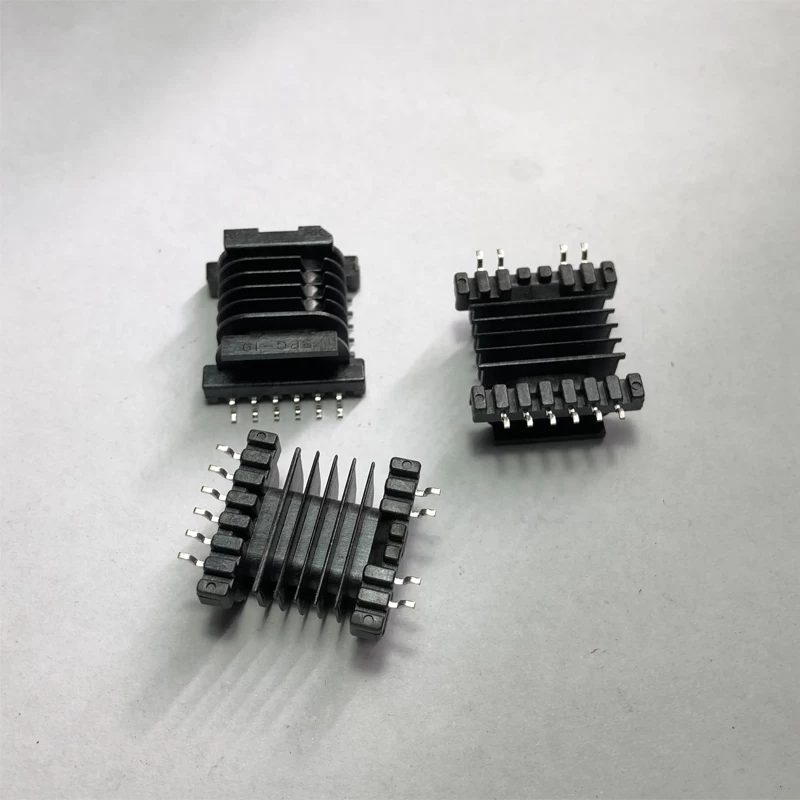

EPC19 Six Slots Transformer SMD Horizontal Bobbin

EPC19 SMD winding bobbin. Six slots horizontal bobbin. Bobbin material: LCP-E4008. Pin Pitch=2.5mm. Parallel Distance=18.9mm. Bobbin Size=24mmX19mmX9.5mm. Customized designs are accepted.



2019 popular EPC19 SMD bobbin, 4+6 pins six slots transformer bobbin, best quality and low price, samples can be sent for testing.


Quick Details

Part No: MCT-SMD-EPC1903

Brand Name: MCT

Material: LCP-E4008

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EPC19 Six Slots Transformer SMD Horizontal Bobbin

Product Range: Transformers,Inductors,Filters,Bobbins,Cores.

Applications: SMPS transformer,power transformer,high frequency transformer,LED transformer.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

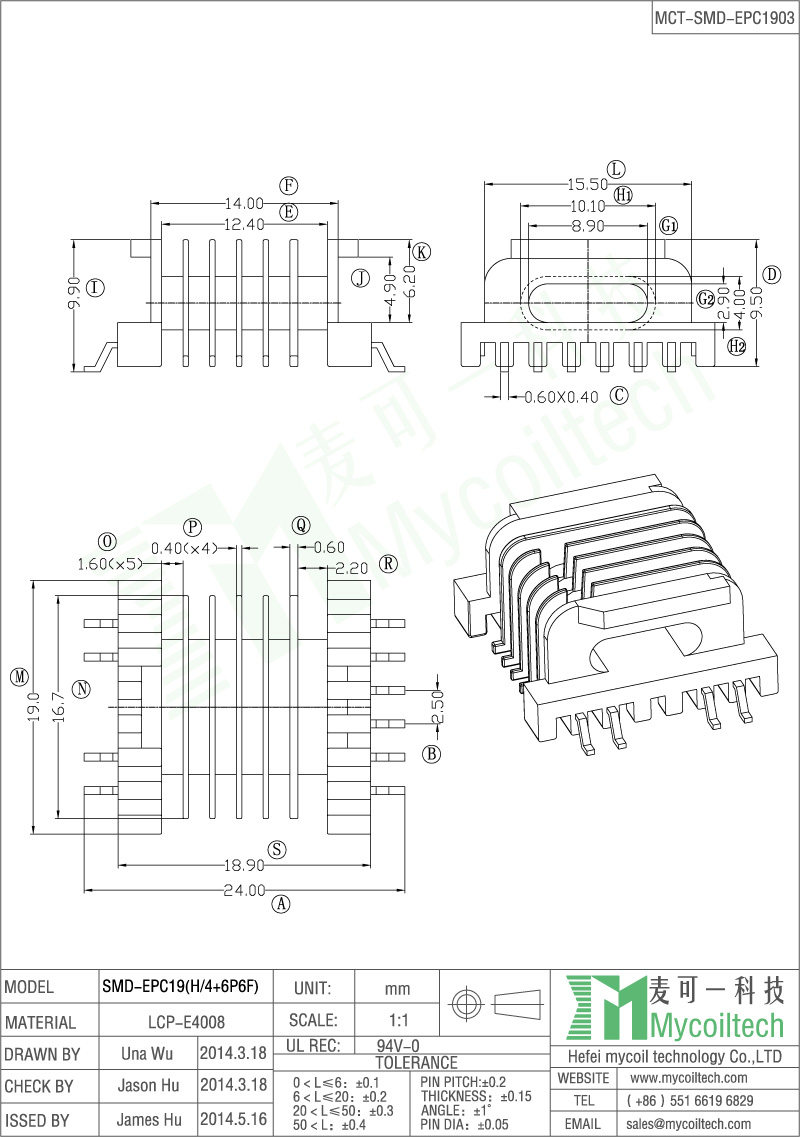

Product Specification

EPC19 coil former factory


Welcome customized EPC transformers:
