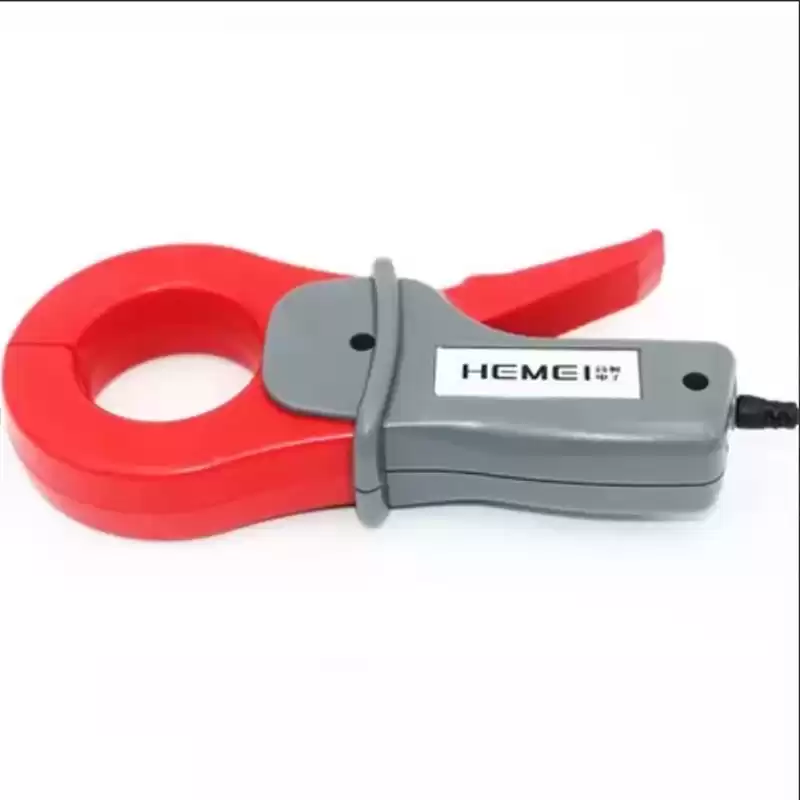

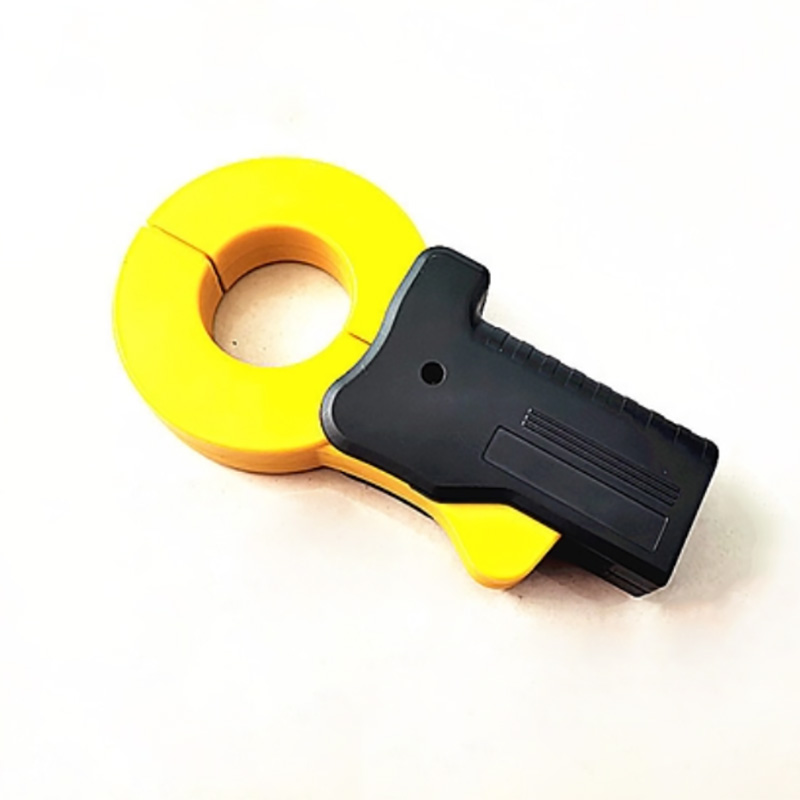

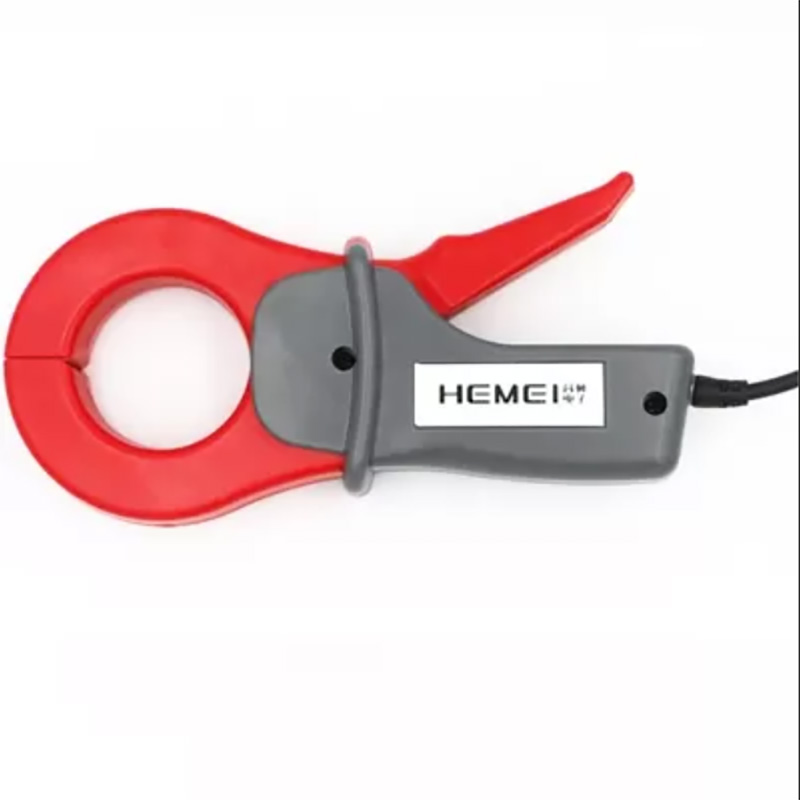

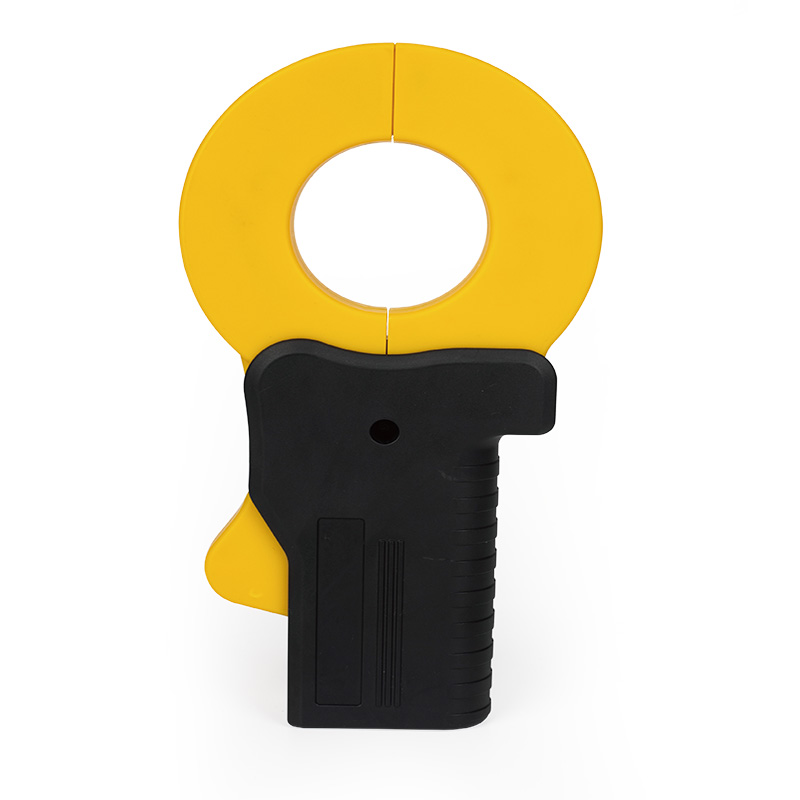

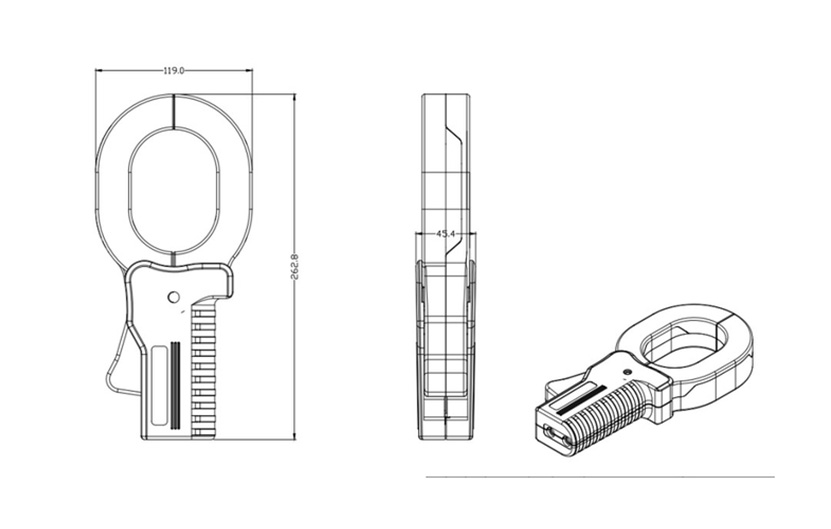

Epoxy Resin Clip Transformers Clamp Type ct Coil Clamp on Current Transformer

Products can be customised

Clamp-on current transformers with Permalloy cores for high-precision measurements are stable and reliable for long-term operation.



Introduction:

This is a high performance AC clamp-on current transformer with excellent transformation and low phase shift characteristics. The high quality core and uniform windings provide accurate measurements up to 1000A AC/2000A AC/3000A AC. Rounded jaws allow 125 mm cable positioning. Provides excellent TRMS functionality and reliable signal reproduction.

Clamp on current transformer user's manual

  • # Mainly using for:
    Single-phase current test / quality warranty
    High-precision current transformers
    Locking snap current transformers
    Split core current transformers
    Clip on current transformers
    Reliable linear performance transformers
  • # Technial index notes:
    Testing current:100mA - 6000A
    Primary current: 100A - 6000A
    Accuracy class is divided into 0.1, 0.2, 0.5 and 1.0 grade
    Sencondary current:1mA to 5A, 0 to 5V, or DC 4 to 20mA
    ABS anti-combustion plastic casing

  • # Notes:
    Suitable for single-phase electricity meter as well as anti-tampering electricity meter
    There aren standard holes on the primary lead wire which can be directly fixed on the meter terminals with stansard bolts
    There are standard holes on the external casing which fasilitates instalaton on a PCB

Clamp on current transformer can be customised

Output voltage Output current  Inner diameter Measuring range Turns ratio Accuracy  Secondary load
0~5V 0~1A 52mm 0.1A ~ 1200A 1 : 1000 ≤0.1% ≤20Ω
0~5V 0~1A 64mm 0.1A ~ 2400A 1 : 2000 ≤0.05% ≤20Ω

Application:

  • Large industrial loads
  • Electronic, Instrument
  • Measuring around cable bundles
  • Power load monitoring
  • Electrical utility
  • HVAC
  • Industrial maintenance
  • Laboratory
  • Plant maintenance
  • Cable fault tester

Features:

  • Measurement range of 1A to 3600A AC
  • Large jaw opening designed
  • Improved ergonomic design and easy operation
  • Conforms to EN 61010, 600V CAT III
  • Low phase shift for power measurement
  • Nominal range: 1 to 1000AAC, 1 to 2000AAC, 1 to 3000A AC
  • Transformation ratio: 1000:5, 2000:5, 3000:5
  • Output:5mA AC/A AC, 2.5mA AC/A AC, 1.666mA AC/A AC
  • Designed for use on DMMs, power and harmonic meters, recorders or instruments with AC current ranges



The Clamp on Current Transformer of Hemei Electronics is exported to countries all over the world, the quality is obvious to all, if you have any needs, leave your information, we will provide you with a comprehensive design service.
