SAT Nanocrystalline Epoxy Resin Magnetic Toroidal Core
SAT tape-wound toroidal cores made of nanocrystalline or
amorphous magnetic material with epoxy resin coating, shows higher
permeability, lower core loss and higher energy switching efficiency than
ferrite and permalloy ones. It’s the best core material for common mode choke,
inductor, coil, toroidal transformer and electronic components. SAT magnetic
toroidal cores make electronic components smaller, lighter and more
accurate.
The Specification of Epoxy Resin Magnetic
Toroidal Cores
|
Core design
|
Toroidal core
|
|
Core for common mode choke
|
161006
|
|

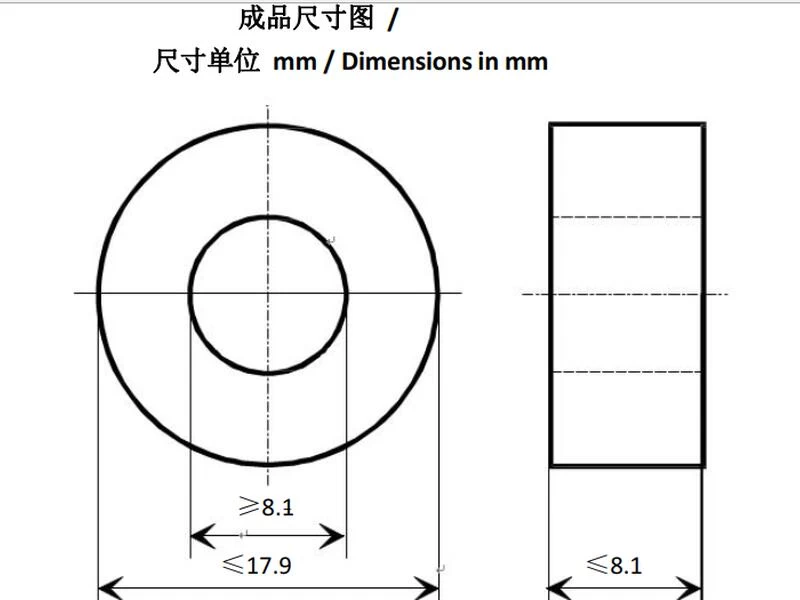

Nominal Dimensions
|
16x10x6mm
|
|
Core Material
|
SAT1K101
|
|
Type of Finish
|
Plastic box / silicon rubber
|
|
Rated Dimensions
|
Afe=0.144m²
lFe=4.08cm
mFe=4.4g
|
|
Final Inspection
|
Magnetical Test Measurement at room temperature (AQL
0,65)
Inductance test without DC-magnetisation
|
|
7.1 Setting values:
f=100KHz / 0.3 8.66mA
Specified value:
1.5µH≤ AL ≤3.0µH （Magnetic conductivity 3380≤ µ3`≤6770）
|
Epoxy Resin Magnetic Toroidal Cores Features:
1. The operating temperature of toroidal cores with epoxy
resin coating up to 120 °C
2. Cores with plastic casing for operating
temperatures up to 130 °C
3. The toroidal shape provides higher permeability and
lower core loss than ferrite and permalloy
4. Different permeability levels toroidal cores for
electronic components are available
Please leave a message below for more
details of magnetic toroidal cores product information.
