TECHNICAL PARAMETER

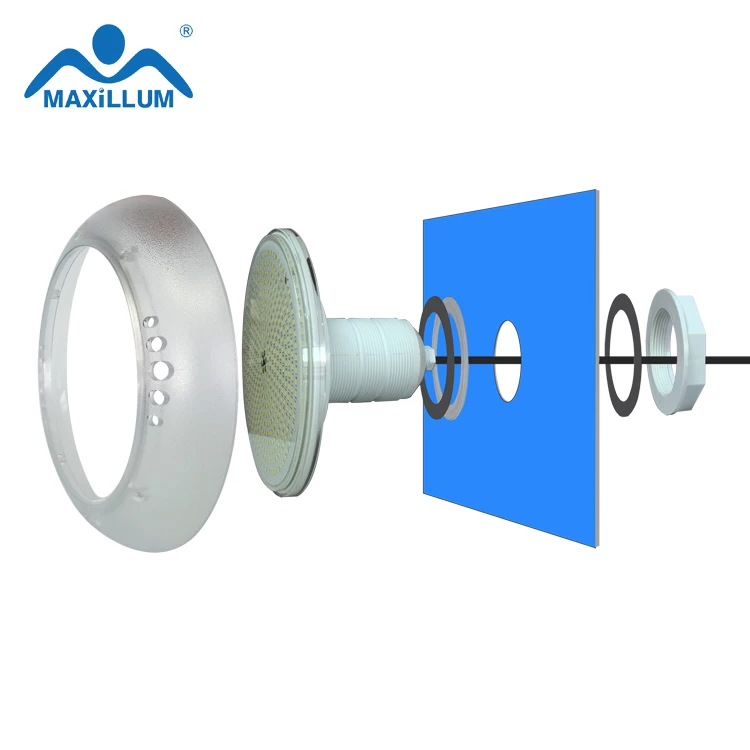

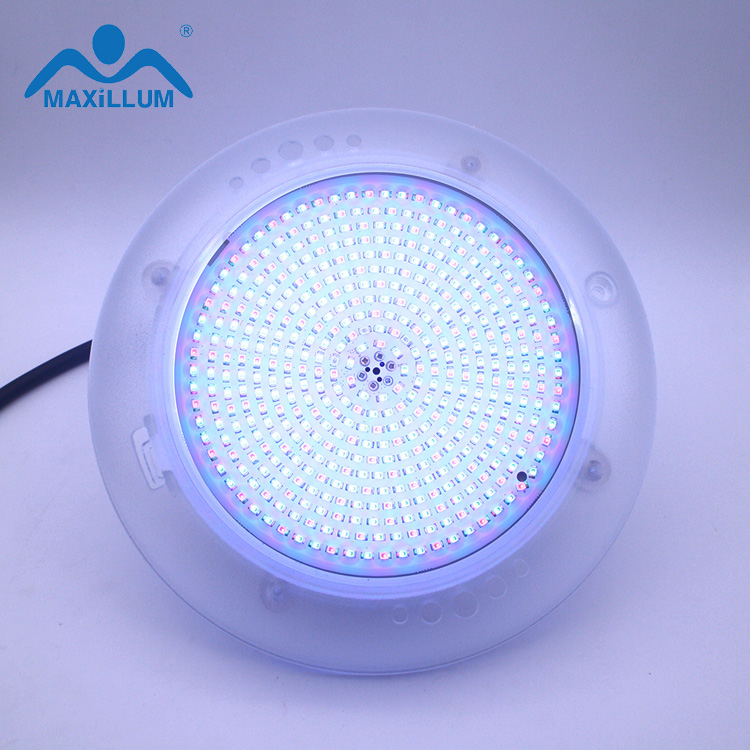

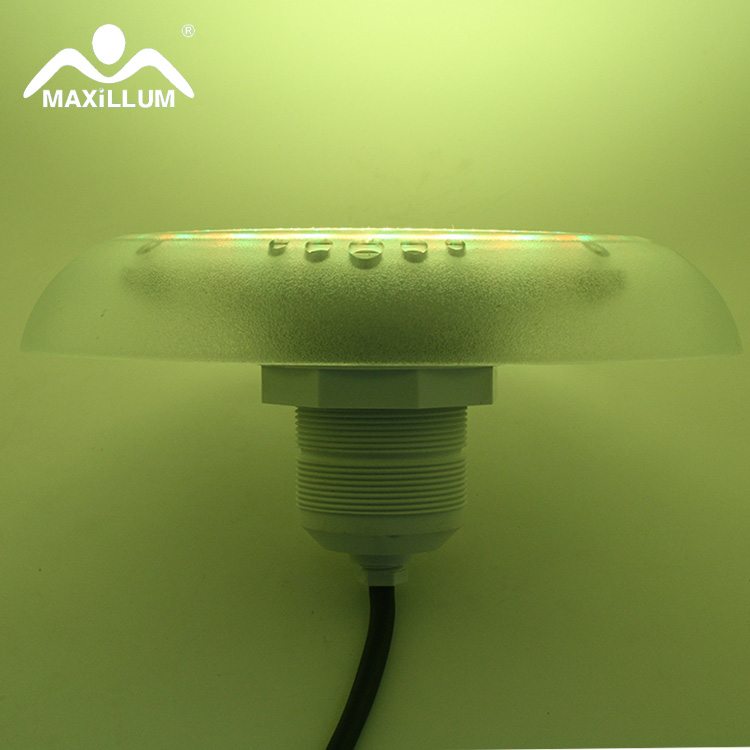

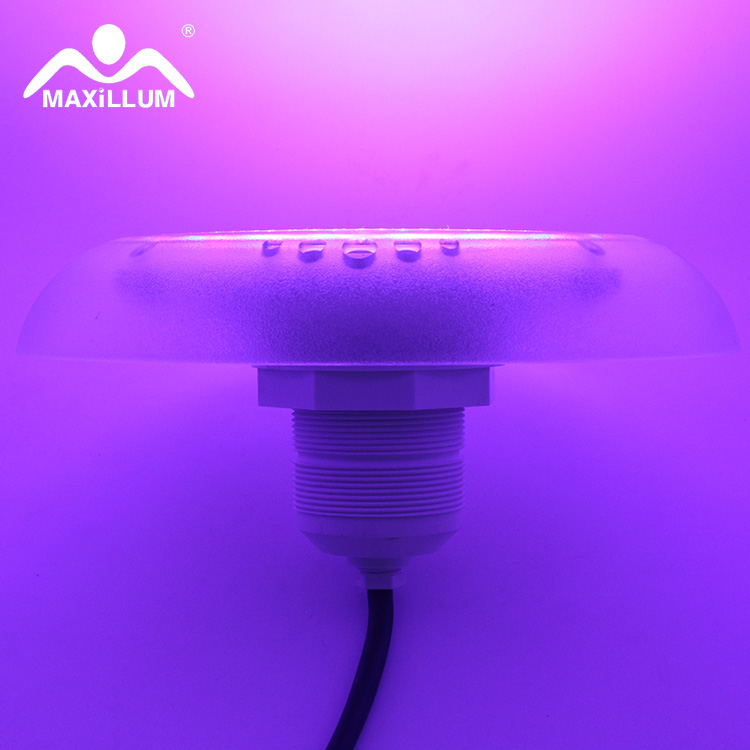

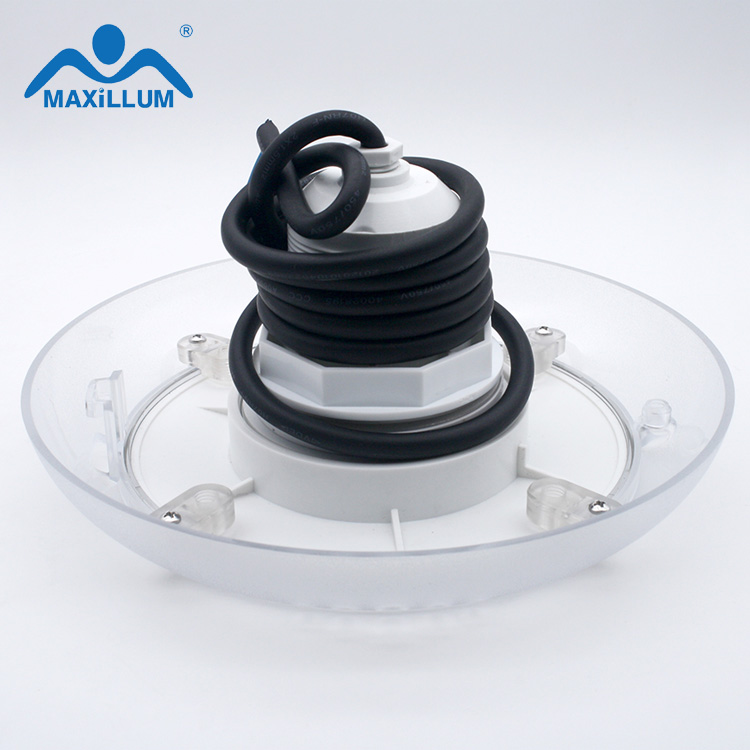

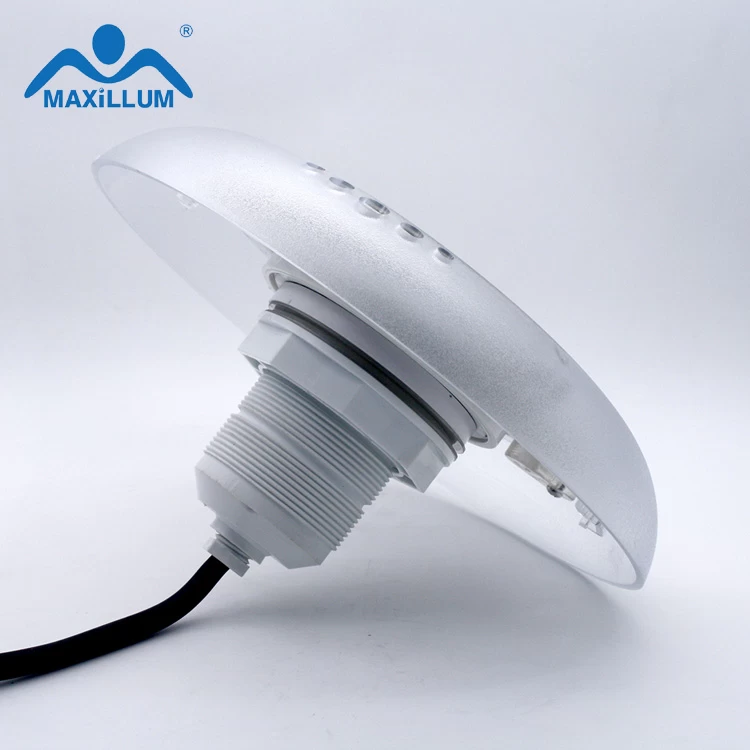

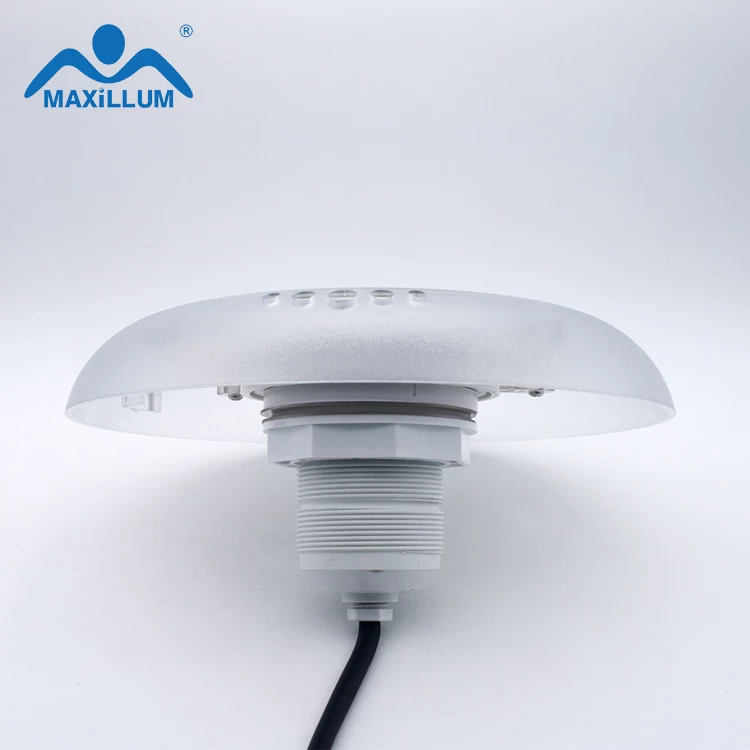

Swimming Pool Light , Epoxy Resin filled wall mounted light for Vinyl Liner Pool
Item: W2002V-S441RGB
Voltage: AC 12V
Frequency: 50-60Hz
Power: 32W
Efficiency: 0.825
Draving Mode: Constant Current
Shell material: PC frosted transparent , hallow
LED type: SMD2835 LED
LED color / quantity : RED 147pcs, blue 147pcs, green 147pcs , total 441pcs
LED Lumen : 1400LM
Light collocating mode: without lens
Beam angle: 120°
Diameter : 240mm
Cable: 2M 2*1.0mm2
LED PN junction temperature : <65 ℃
Working temperature :0℃~40℃
Protection : IP68
Life span: 50000 hours
Certification: CE & RoHS
RGB ON/OFF WORKING PROGRAM
Cycles Working 15 Modes
1). Fixed blue
2). Fixed red
3). Fixed green
4). Fixed red/blue
5). Fixed blue/green
6). Fixed red/green
7). Fixed white
8). Cycle red-red/green-green.
9). Cycle green-green/blue-blue.
10). Cycle red-red/blue-blue.
11). Cycle red-green-blue. The speed change goes from low to quick.
12). Cycle red-green-blue. The speed change is slower than Mode 11.
13). Cycle green-red/blue-blue-red-white-blue/green-red/green.
14). Gradual change of all colors
15). Gradual change of red-green-blue
RGB Control Options:
1. ON/OFF control
15 kinds of working program , ON/OFF change color , with memory
2. Remote Control
15 keys remote controller . No.1 ON , No.2 OFF , No3-No.15 13 working mode
suit for famlily pool
3. Remote Control Box
CB006(max 120W ) , CB008 (max300) . 100% synchronization
4. WIFI Control BOX
Operate the lamp by cell phone with APP .
DIY the mode . The lamps change color with the music .
