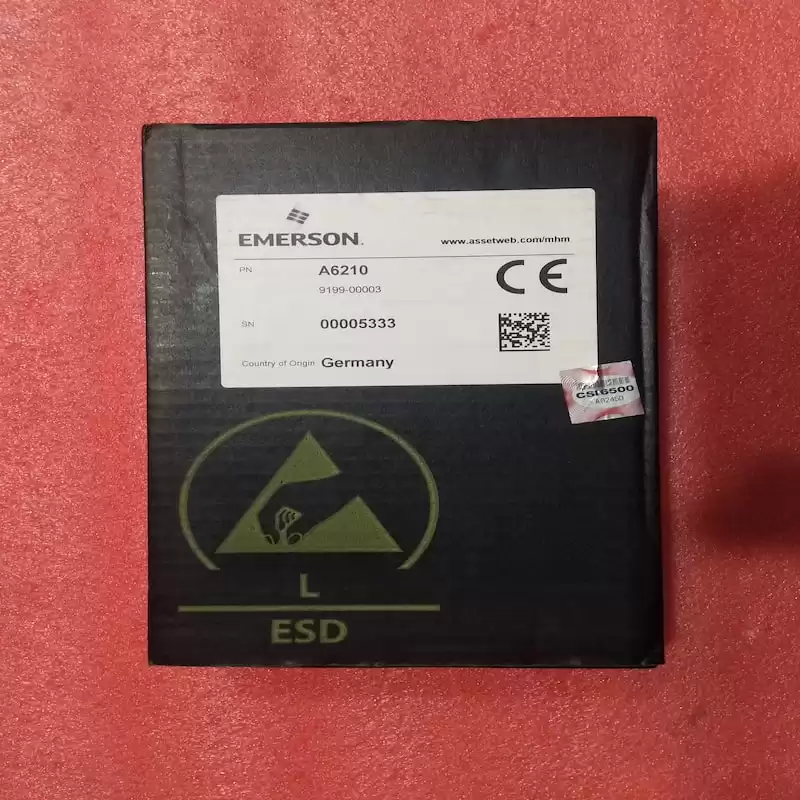

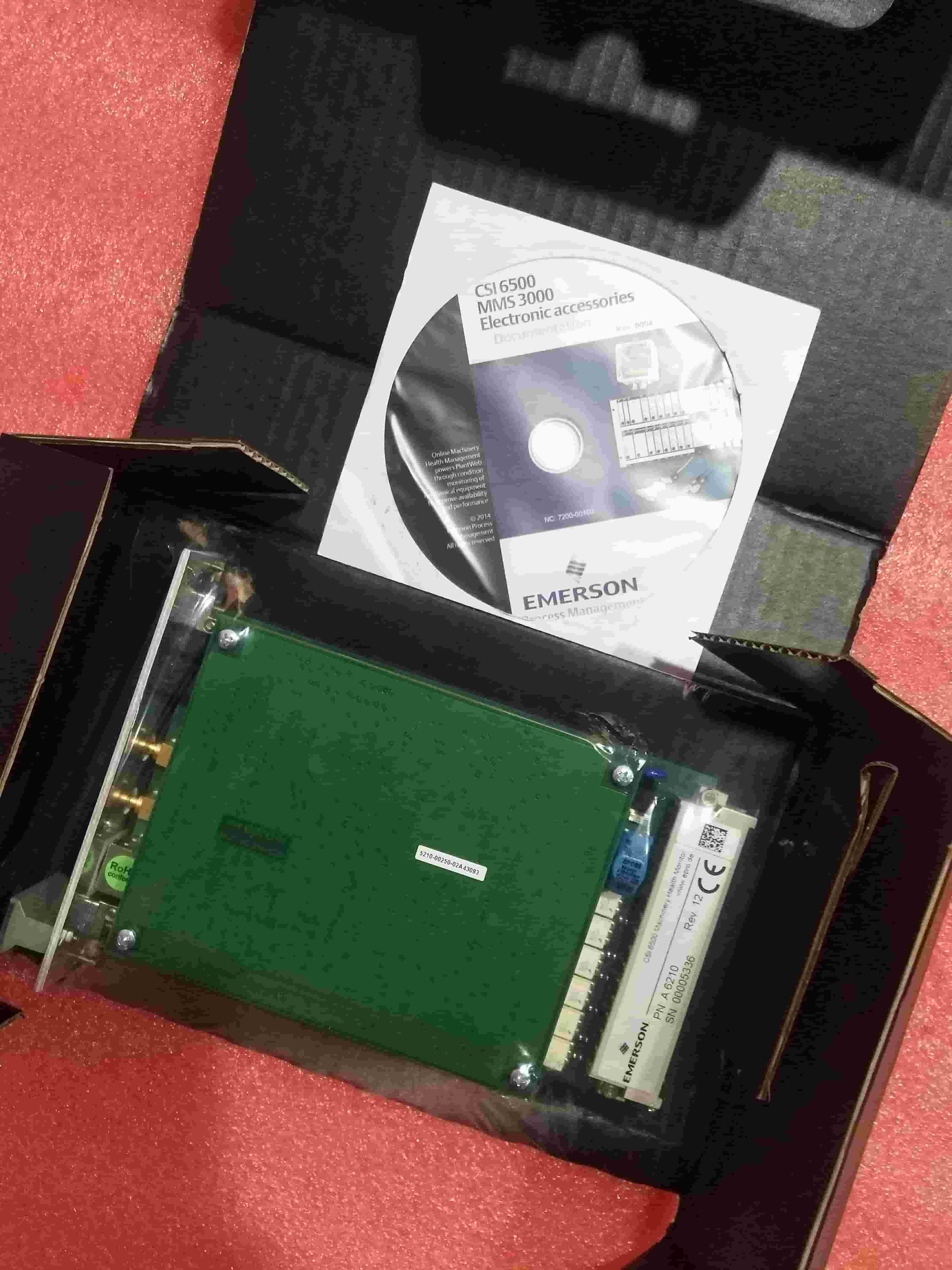

Epro Emerson 9199-00003 A6210 Rod Position Monitor for AMS 6500

A6210 Thrust Position, Differential Expansion, and Rod Position Monitor for AMS 6500

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  Epro
 Model  A6210
 Product ID  9199-00003
 Catalog  AMS 6500
 Description  A6210 Rod Position Monitor for AMS 6500
 Origin  Germany（DE)
 Dimension  128.4 mm x 160 mm x 30mm
 Weight  0.45kg



A6210 9199-00003

The A6210 monitor operates in 3 distinct modes: thrust position, differential expansion, or rod position.
The Thrust Position mode accurately monitors thrust position and reliably provides machinery protection by comparing the measured axial shaft position against alarm
set-points – driving alarms and relay outputs. Shaft thrust monitoring is one of the most critical measurements on turbomachinery.
Sudden and small axial movements should be detected in 40 msecs or less to minimizeor avoid rotor to case contact. Redundant sensors and voting logic are recommended.
Thrust bearing temperature measurement is highly recommended as a complement tothrust position monitoring.
The A6210 monitor can also be configured for differential expansion measurements.As both the case and rotor grow due to changes in thermal conditions at turbine
start-up, differential expansion delivers a measure of the relative difference between mounted displacement sensors on the case and the sensor target on the shaft. If the case and shaft grow at approximately the same rate, then the differential expansion
remains close to the desired value of zero. The differential expansion measurement mode supports tandem/complementary or cone/ ramp modes.

 » Datasheet Link

Epro Emerson 9199-00002 CSI A6120 Case Seismic Vibration Monitor for CSI 6500 Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
