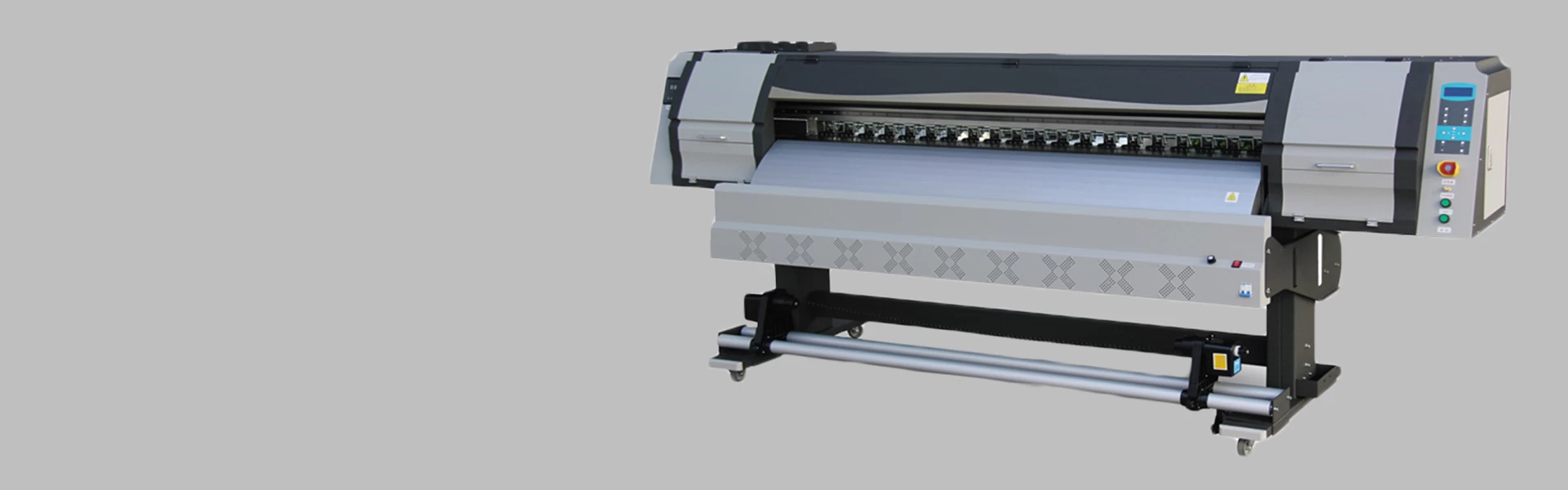

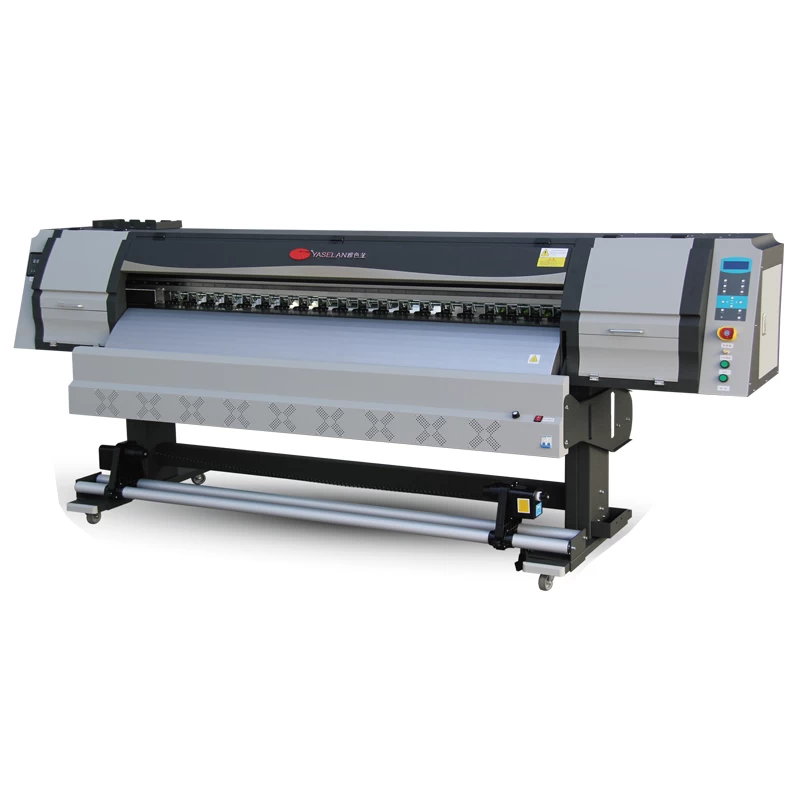

Yaselan sublimation printer, special designed for fabric materials directly printing
Easy operation, fast speed and high resolution,
it is the best choice for flag printing, fabric promotion stands making
|

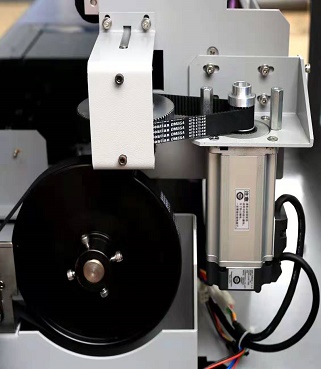

Fuji / Panasonic servo motor, make sure of long lasting working life, and high quality printing
|
|
|
|

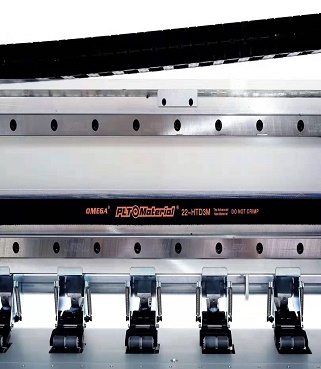

THK / Hiwin Guide rail
High rigidity high bearing capacity,Smooth operation,no noise,low friction,famous brand in printing industry.Long life span American 3M belt.
|
|
|
|
|
CISS with Ink shortage alarm
Continuous ink supply system with ink shortage warning,full waste ink warning.
|
|
|
|
Computer Bracket
Movable computer bracket,convenient and save space.
|
|
|
|
|
Interlligent Heater+Fan
Interlligent heater with safety insulation paper around the tube which make the temperature high inside,and low outside
|
|
|
|
Optional media take up system
Standard media take up system
-For 70-400gsm paper
Heavy duty media take up system
-For 38-100gsm paper
|
|
|
|
|
Technical parameters
|
|
Print Head Quantily
|
Epson 4720 2 Pcs
|
|
Printing width
|
2.0m X (Unlimited Length)
|
|
Printing Thickness
|
≤3mm
|
|
Printing Speed
|
Printing Mode
|
Two heads
|
|
Epson 4720
|
2pass
|
90㎡/h
|
|
3pass
|
60㎡/h
|
|
4pass
|
40㎡/h
|
|
Ink
|
Sublimation Ink C·M·Y·K
|
|
Media Type
|
Flag cloth,Banner cloth.Chemical fibre textiles,Poster
|
|
Image Format
|
TIFF/JPG/EPS/PDF
|
|
RIP Software
|
Maintop(Standard)/Photoprint(Optional)
|
|
Computer Configuration
|
System : windows7/8/10 64bits(Professional/Version)CPU:≥Inter i5 RAM : 8GB Hard Disk : SATA 500G Hard Disk Format : NTFS CD Rom : DVD Recordable Space for Disk C : 100GB at least
|
|
Power Supply
|
AC 200V,50HZ±10%,UPS is required
|
|
Operation Environment
|
Temperature 20~30℃ Humidity 60~70℃
|
|
Power
|
6000W
|
|
G.W./N.W.
|
800kg/700kg
|
|
Packing Size/APP Size
|
L/W/H 3500mm*650mm*750mm/3300mm*520mm*630mm
|
