ER28 Vertical Bobbin 10 Pins For Current Transformer

EER28 5+5 pin vertical bobbin. Lead free ER28 transformer bobbin. Bobbin Size=25.0mmX23.0mmX27.0mm. Pin Pitch=5mm. Parallel distance=17.5mm. We can make bobbin tooling. DIP bobbin. Phenolic material bobbin. UL REC:94V-0

High Frequency Transformer ER28 Vertical Bobbin

EER28 5+5 pin vertical bobbin. Lead free ER28 transformer bobbin. Bobbin Size=25.0mmX23.0mmX27.0mm. Pin Pitch=5mm. Parallel distance=17.5mm. We can make bobbin tooling. DIP bobbin. Phenolic material bobbin. UL REC:94V-0

Power Charge Transformer ER28 Vertical Bobbin

Winding bobbin for ferrite cores. ER28 6+6 pin vertical bobbin. Lead free ER28 transformer bobbin. Pin Pitch=5mm. Bobbin Size=31.0mmX26.0mmX26.4mm. Parallel distance=17.5mm. We can make bobbin tooling. DIP bobbin. PM9820 material bobbin. UL REC:94V-0

Current Transformer ER28 Vertical Bobbin 5+5 Pins

5+5 pin ER28 coil bobbin. ER28 vertical type winding bobbin. Lead free ER28 transformer bobbin. Pin Pitch=3.5mm. Bobbin Size=17.8mmX17.8mmX9.6mm. Parallel distance=14.0mm. We can make bobbin tooling. DIP bobbin. PM9820 material bobbin. UL REC:94V-0

ER28 Horizontal Transformer Bobbin With 8+8 Pins

ER28 horizontal winding bobbin. ER28 8+8 pins transformer bobbin. Lead free ER28 transformer bobbin. Pin Pitch=4.0mm. Bobbin Size=31.5mmX25.0mmX19.5mm. Parallel distance=20.0mm. We can make bobbin tooling. DIP bobbin. PM9820 material bobbin. UL REC:94V-0

ER28 High Voltage Transformer Horizontal Bobbin 12 Pin

6+6 pin ER28 horizontal coil bobbin. Mainly for ER28 high frequency transformer. Parallel distance=30.0mm. Bobbin Size=37.0mmX30.4mmX24.2mm. Pin Pitch=5.0mm. We can make bobbin tooling. DIP bobbin. Phenolic transformer bobbin. UL REC:94V-0

ER28 Transformer Bobbin Horizontal 6+6 Pin

ER28 ferrite core bobbin. ER28 horizontal coil bobbin. ER28 high frequency transformer. Parallel distance=30.0mm. Bobbin Size=36.9mmX30.2mmX25.0mm. Pin Pitch=5.0mm. We can make bobbin tooling. DIP bobbin. Phenolic transformer bobbin. UL REC:94V-0

ER28 High Frequency Bobbin For Power Transformer

Bobbin for ER28 current transformer. ER28 horizontal bobbin pin 6+6. Bobbin Size=29.0mmX28.1mmX23.8mm. Pin Pitch=5.0mm. Parallel distance=25.0mm. We can make bobbin tooling. DIP bobbin. Phenolic transformer bobbin. UL REC:94V-0

PCB Mount Transformer ER28 Horizontal Bobbin 12 Pins

ER28 high frequency bobbin. ER28 horizontal bobbin pin 6+6. Bobbin Size=29.5mmX29.0mmX21.0mm. Pin Pitch=3.7mm. Parallel distance=25.4mm. We can make bobbin tooling. DIP bobbin. Phenolic transformer bobbin. UL REC:94V-0

ER28 Horizontal Flyback Transformer Bobbin

ER28 transformer bobbin pin 6-6. ER28 horizontal bobbin. Bobbin Size=29.0mmX27.8mmX25.0mm. Pin Pitch=5.0mm. We can make bobbin tooling. DIP bobbin. Phenolic transformer bobbin. UL REC:94V-0

Switching Power Transformer ER28 Vertical Bobbin

Winding bobbin ER28 pin 9-9. ER28 vertical bobbin. Bobbin Size=36.2mmX26.2mmX29.4mm. Pin Pitch=4.0mm. Parallel Distance=20.0mm. We can make bobbin tooling. DIP bobbin. Phenolic transformer bobbin. UL REC:94V-0

ER28 Current Transformer Vertical Bobbin 8+8 Pin

ER28 8+8 pin vertical bobbin. ER28 core, PC40. Bobbin Size=31.5mmX25.3mmX24.7mm. Pin Pitch=4.0mm. Parallel Distance=20.0mm. We can make bobbin tooling. DIP bobbin. Phenolic transformer bobbin. UL REC:94V-0

ER28 High Frequency Bobbin For LED Lighting Transformer

ER28 electronic transformer. 5+5 pins vertical bobbin. Bobbin Size=25.0mmX23.0mmX27.3mm. Pin Pitch=5.0mm. Parallel Distance=17.5mm. We can make bobbin tooling. DIP bobbin. Phenolic transformer bobbin. UL REC:94V-0

High Voltage Transformer ER28 Horizontal Bobbin

6+9 pins ER28 transformer bobbin. ER28 horizontal bobbin pin 6+6. Bobbin Size=36.2mmX31.2mmX24.0mm. Pin Pitch=4.0mm. Parallel distance=26.0mm. We can make bobbin tooling. DIP bobbin. Phenolic transformer bobbin. UL REC:94V-0

ER28 Ferrite Core Transformer Vertical Bobbin

5+5 pin ER28 coil former. ER28 vertical bobbin. Bobbin Size=25.0mmX23.0mmX32.7mm. Pin Pitch=2.5mm. Parallel Distance=17.5mm. We can make bobbin tooling. DIP bobbin. Phenolic transformer bobbin. UL REC:94V-0

Power Transformer ER/EC28 Vertical Bobbin Pin 6+6

ER28 vertical winding bobbin. 6+6 pins ER28 coil former. Bobbin Size=28.8mmX24.0mmX19.6mm. Pin Pitch=5.0mm. Parallel Distance=17.5mm. We can make bobbin tooling. DIP bobbin. Phenolic transformer bobbin. UL REC:94V-0

ER28 Ferrite Core High Frequency Bobbin 5+5 Pin

Vertical bobbin ER28. 5+5 pins ER28 bobbin. Bobbin Size=24.8mmX22.0mmX19.2mm. Pin Pitch=5.0mm. Parallel Distance=16.6mm. We can make bobbin tooling. DIP bobbin. Phenolic transformer bobbin. UL REC:94V-0

High Isolation ER28 Transformer Horizontal Bobbin

ER28 5+5 pins bobbin. ER28 horizontal coil former. Bobbin Size=29.1mmX26.0mmX17.2mm. Pin Pitch=6.0mm. Parallel Distance=20.3mm. We can make bobbin tooling. DIP bobbin. Phenolic transformer bobbin. UL REC:94V-0

High Efficiency Power Transformer ER49 Bobbin

Vertical ER49 bobbin for transformer. 9+9 pins coil former. Bobbin Size=49.00mmX37.00mmX33.8mm. Pin Pitch=5.0mm. Parallel Distance=28.0mm. For final ER49 high frequency transformer, has low magnetism leakage and good operating performance, we can start from samples.

ER42 Power Supply Vertical Coil Bobbin

Switch power transformer ER42. 9+9 pins ER42 vertical bobbin. Bobbin Size=45.50mmX32.00mmX29.7mm. Pin Pitch=5.0mm. Parallel Distance=27.4mm. ER42 high frequency transformer, with low magnetism leakage and good performance, we can start from samples.

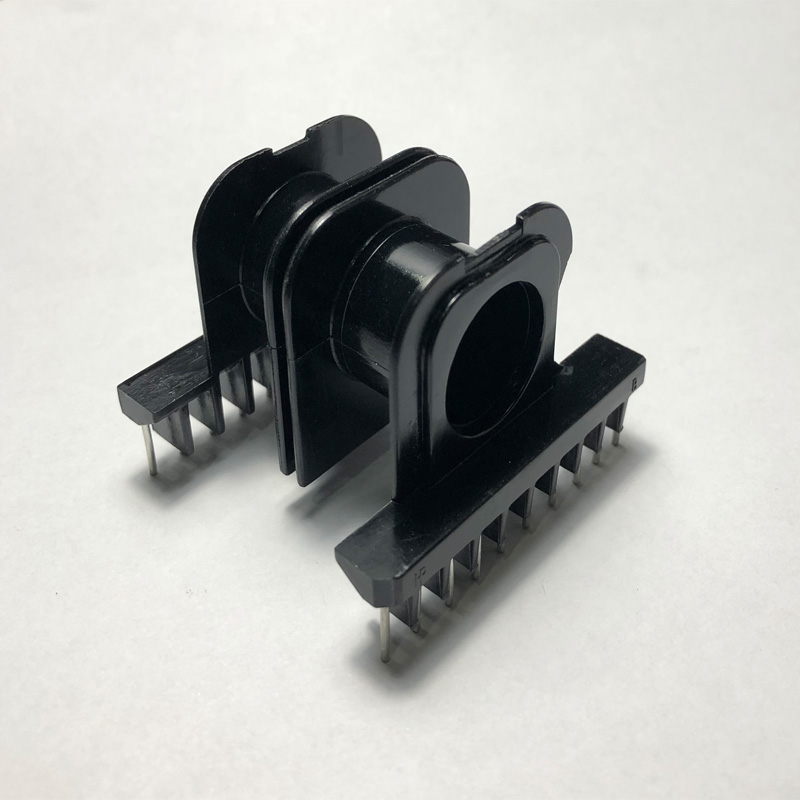

ER49 High Frequency Transformer Horizontal Bobbin Double Slots

Supply ER49 transformer bobbin. 10+10 pins coil former. Horizontal ER49 two grooves bobbin. We only presented a standard ER49 transformer bobbin in our website. We manufacture final ER49 high power transformer, If you need support, please tell us the parameters you wanted, and we will advise suitable ones for you. If your size is special, we can also make new tooling. For final ER49 high frequency transformer, has low magnetism leakage and good operating performance, we can start from samples.

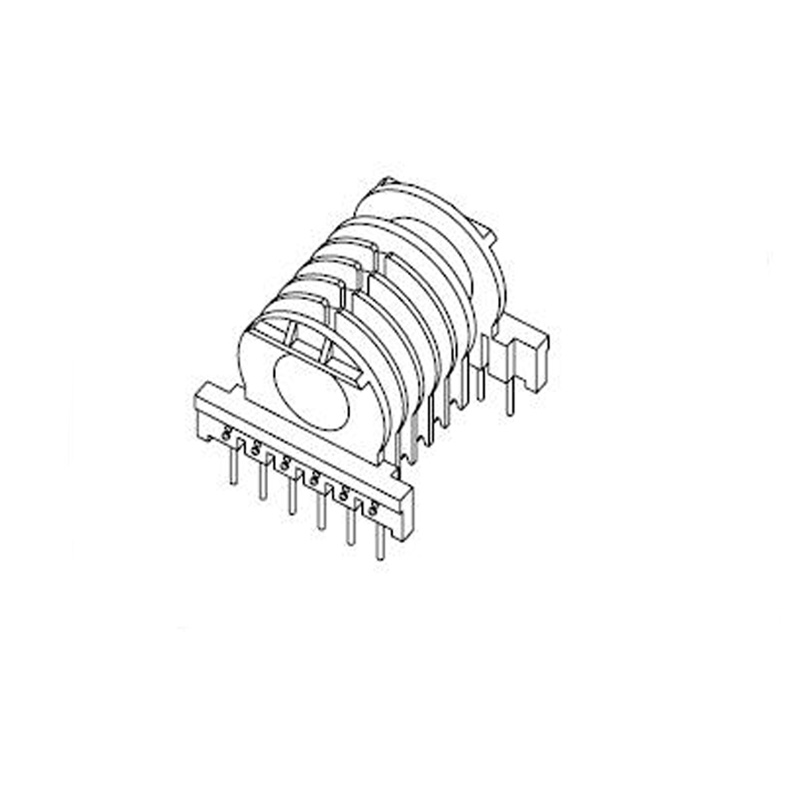

ER28 Lighting Transformer Horizontal Bobbin Pin 6+6

ER28 power supply transformer. 6+6 pins ER28 six slots coil former. Horizontal ER28 transformer bobbin. Bobbin size=31.4mmX28.0X23mm. Row distance=26.4mm. Pin pitch=4.0mm. We manufacture final ER28 high power transformer, If you need support, please tell us the parameters you wanted, and we will advise suitable ones for you. If your size is special, we can also make new tooling.

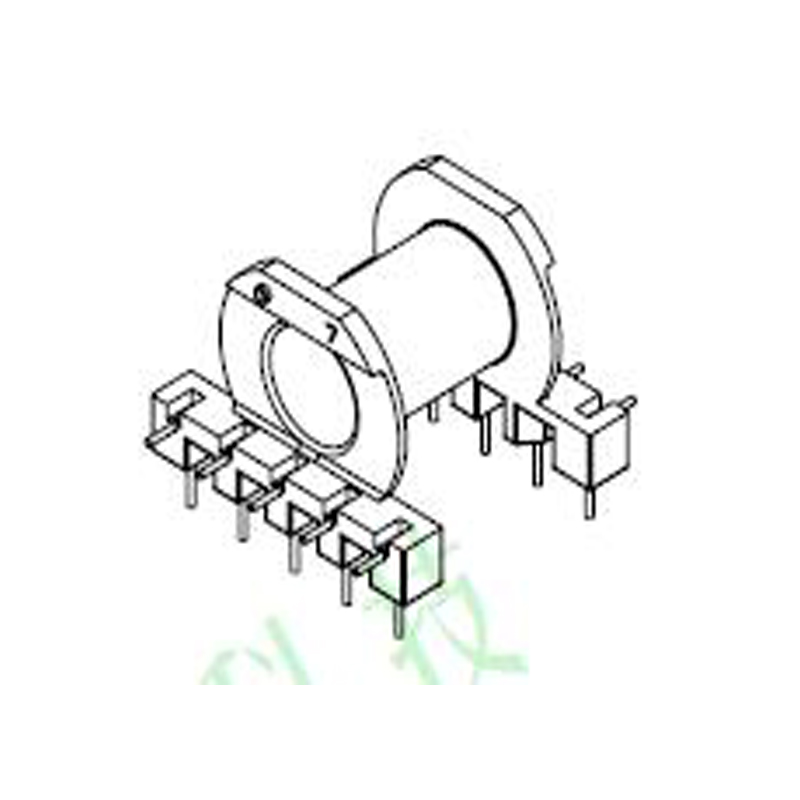

High Frequency ER42 Transformer 7+7 Pins Bobbin

Soft ferrite core ER42 bobbin. Vertical ER42 7+7 pins bobbin. Bobbin Size=40.3mmX30.0mmX44.3mm. Parallel Distance=25.0mm. Pin Pitch=5.0mm. ER42 high frequency transformer, with low magnetism leakage and good performance, we can start from samples.

ER42 Power Transformer Horizontal Bobbin

ER42 horizontal transformer frame, 8+8 pin ER42 coil bobbin. Bobbin Size=44.0mmX40.0mmX33.8mm. Pin Pitch=5.0mm. Parallel Distance=35.0mm. ER42 high frequency transformer, with low magnetism leakage and good performance, we can start from samples.

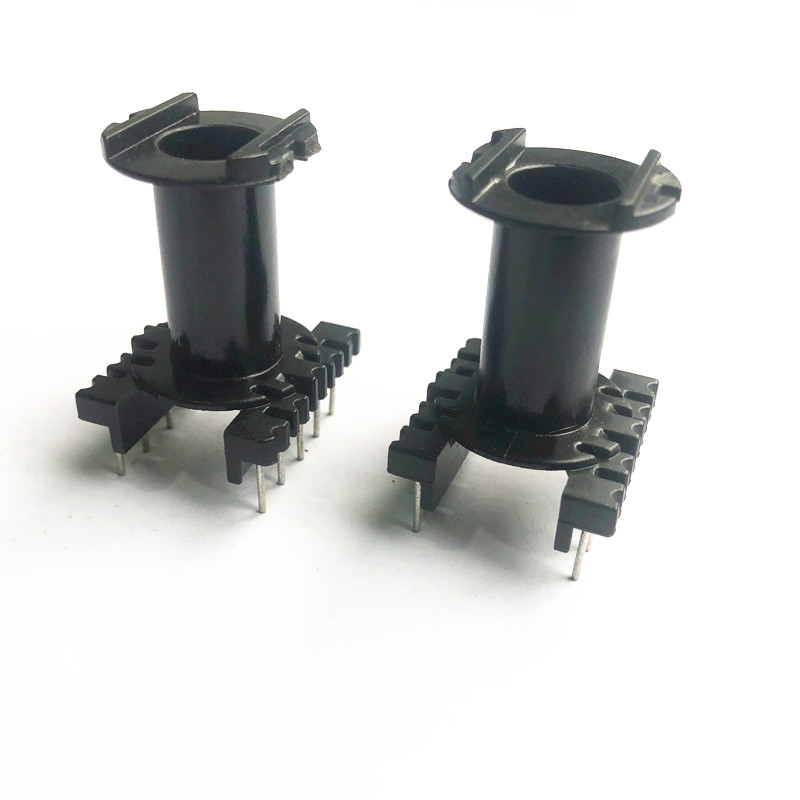

ER28 High Frequency Flyback Transformer Bobbin

ER28 vertical coil former. 5+5 pins without VDE ER28 transformer frame. Supply EC2828 ER28/28 EC28/28 transformer cores. Mainly used for high frequency transformer, with low magnetism leakage and good performance, welcome customized final transformers.

Switching Power Supply ER28 Vertical Transformer Bobbin

High voltage ER28 transformer. 5+5 pins ER28 transformer bobbin with VDE. Supply EC2828 ER28/28 EC28/28 transformer cores. Mainly used for high frequency transformer, with low magnetism leakage and good performance, welcome customized final transformers.

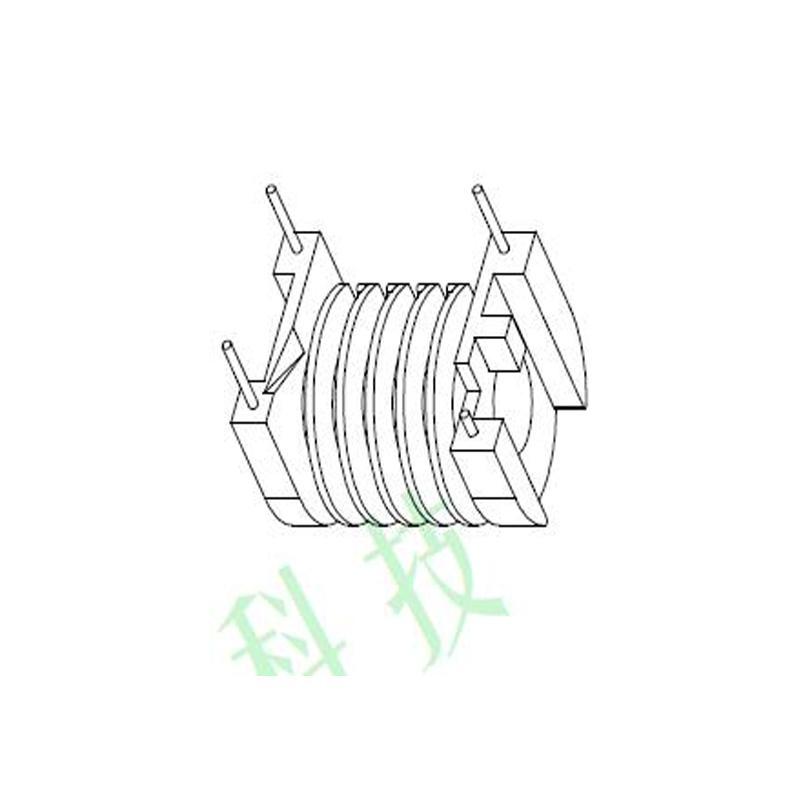

ER16 PCB Mounting High Frequency Transformer Bobbin

Pulse transformer ER16 bobbin. 2+2 pins ER16 six grooves transformer bobbin. Bobbin size=20.0mmX16.5mmX16.5mm. Pin pitch=13.4mm. Parallel distance=16.5mm. Multi section ER16 bobbin for transformer and coil, mainly used for DC converters, with low magnetism leakage and good performance, welcome customized final transformers.

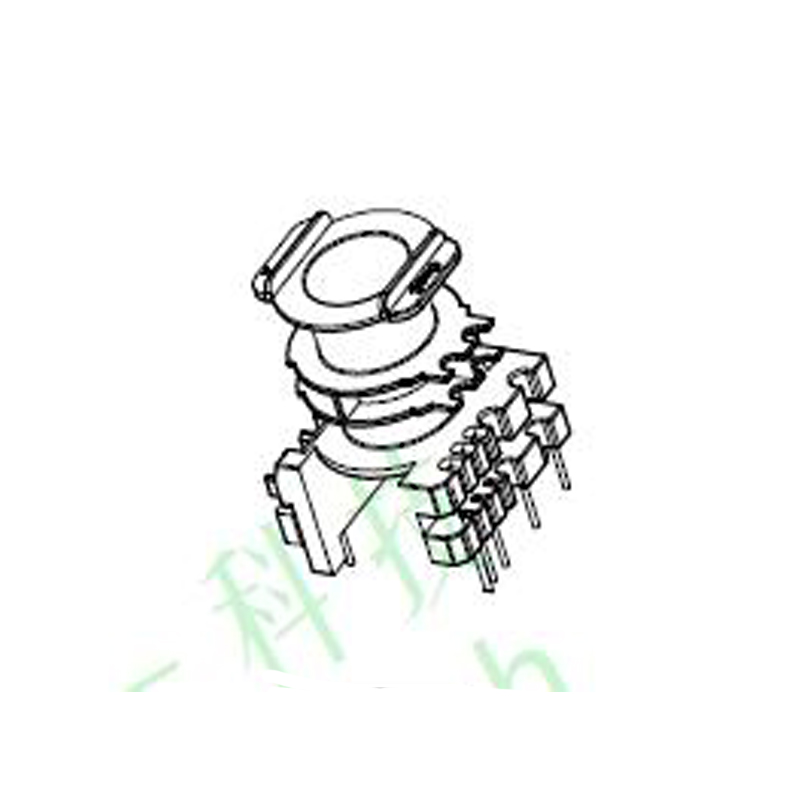

ER42 Vertical Transformer 4+1 Pin Bobbin Double Slots

Vertical ER42 coil former, 4+1 pin ER42 transformer bobbin. Bobbin Size=37.6mmX33.0mmX52.7mm. Parallel Distance=28.0mm. ER42 high frequency vertical transformer, with low magnetism leakage and good performance, we can start from samples.

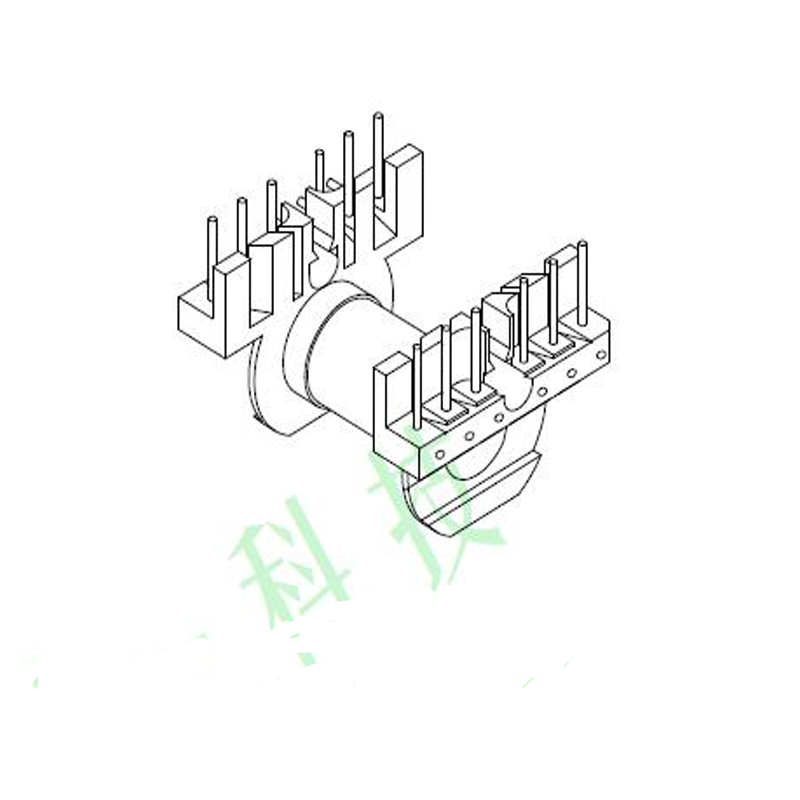

ER28 Switching Mode Power Transformer Frame

ER28/34 horizontal transformer, 6+6 pin ER28 bobbin with six grooves. Bobbin size=34.9mmX28.0mmX20.9mm, pin distance=5mm, parallel distance=26.0mm. We manufacture ER28 transformer for power supply, used in DC converters, with low magnetism leakage and good performance, welcome customized final transformers.

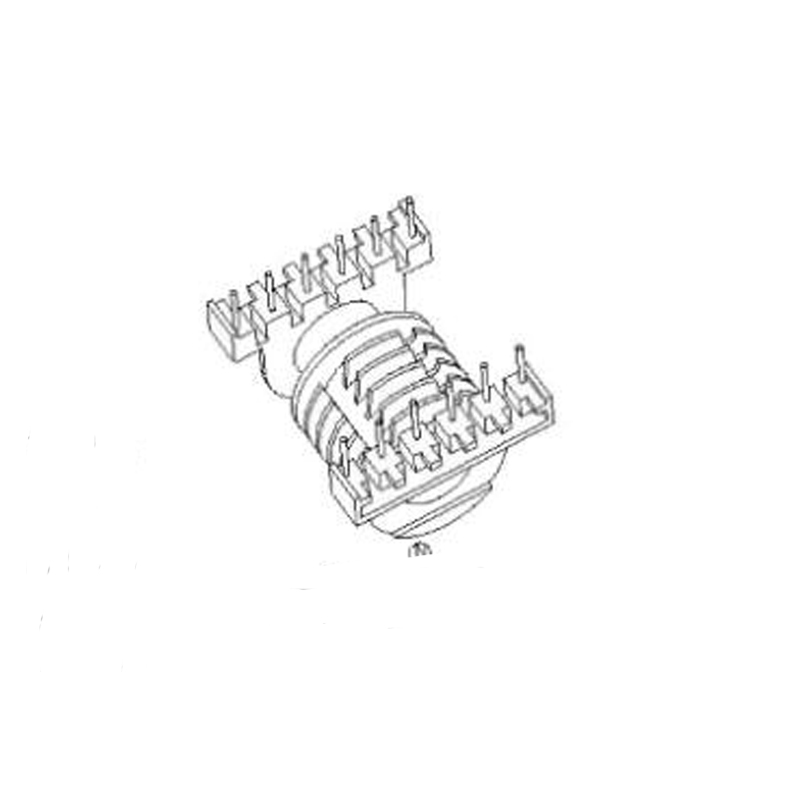

ER35 High Voltage Transformer Frame Horizontal Bobbin

ER35 high frequency transformer. Horizontal ER35 7+7 pins coil former. Bobbin size=40.0mmX36.0mmX27.7mm, pin distance=5mm, parallel distance=37.0mm. We manufacture final electronic transformer for power suppliers, low magnetic leakage and good performance, welcome customized transformers.

Horizontal ER35/42 Magnetic Core Transformer Bobbin

EER35 6+6 pin bobbin, high frequency horizontal bobbin. Bobbin size=43.7mmX35.6mmX28.8mm, pin distance=5.33mm, parallel distance=37.0mm. PET material EER35 coil former. We manufacture final electronic transformer for power suppliers, low magnetic leakage and good performance, welcome customized transformers.

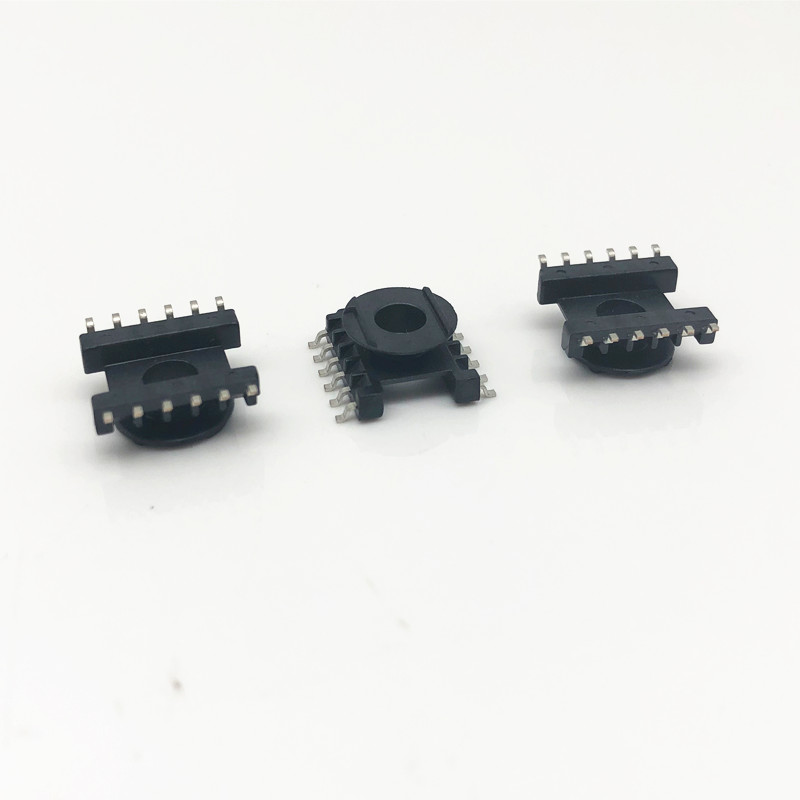

High Frequency ER14.5 SMD Transformer Bobbin

ER14.5 power transformers, SMD horizontal coil bobbin 6+6 pin. Parallel distance=12.0mm. Pin pitch=2.5mm. High voltage ER14.5 coil bobbin, LCP-E4008 material coil bobbin. We make bobbin tooling to meet customer's requirement. ER14.5 transformer for inverters, DC/DC converters, power systems, UPS, computers.
