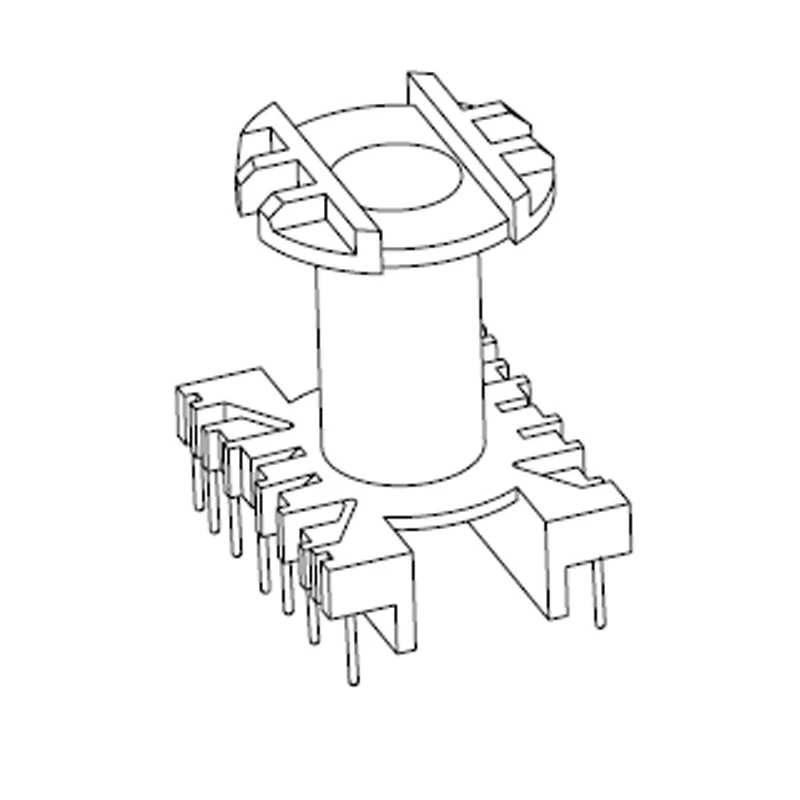

ER35 Vertical Transformer Bobbin High Frequency Phenolic Bobbin 7+7 Pins

14 pins vertical ER35 transformer bobbin. DIP bobbin.

Parallel Distance=22.5mm. Pin Pitch=5.0mm. UL REC:94V-0

Bobbin Size=35.3mmX28.3mmX40mm. ER35 phenolic bobbin.



High frequency transformer ER/EC series bobbin, customized designs and specifications are acceptable, if you are looking for best quality transformer bobbin, you can contact us for more information.


Quick Details

Part Number: MCT-ER3505(V7+7P)

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: ER35 Vertical Transformer Bobbin High Frequency Phenolic Bobbin 7+7 Pins

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

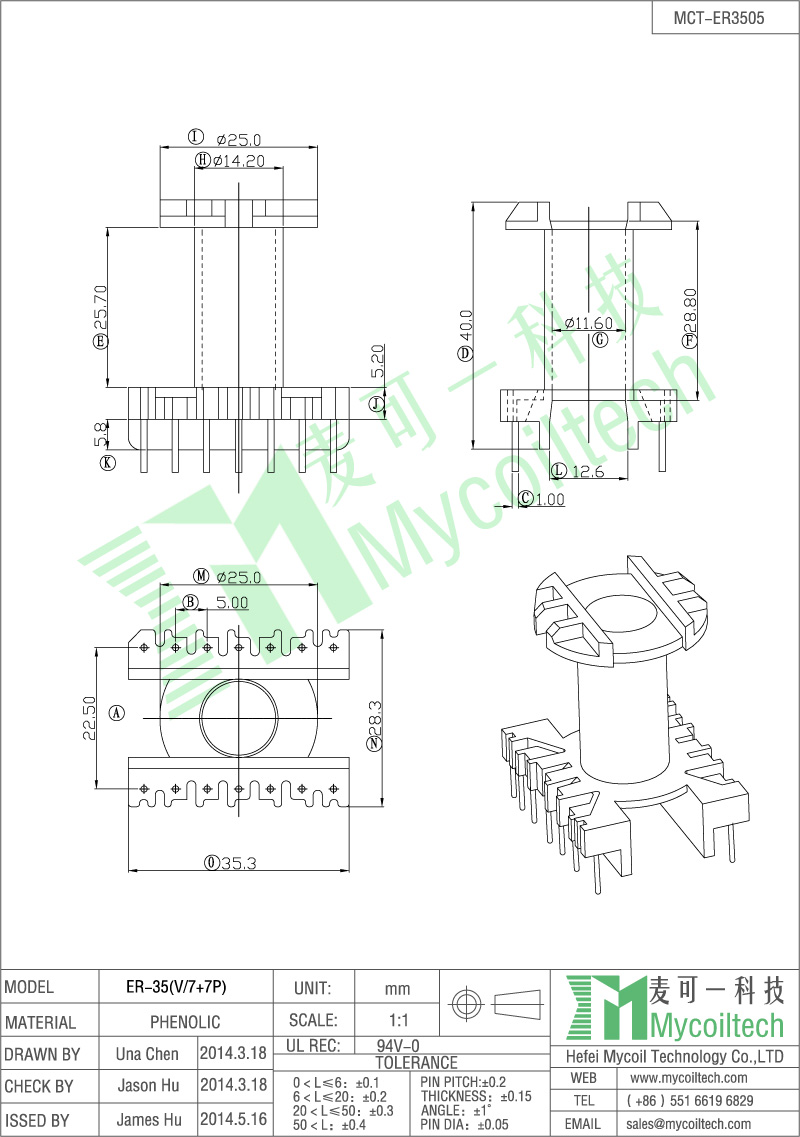

Product Specification

ER35 Type High Frequency Transformer Bobbin with RoHS
