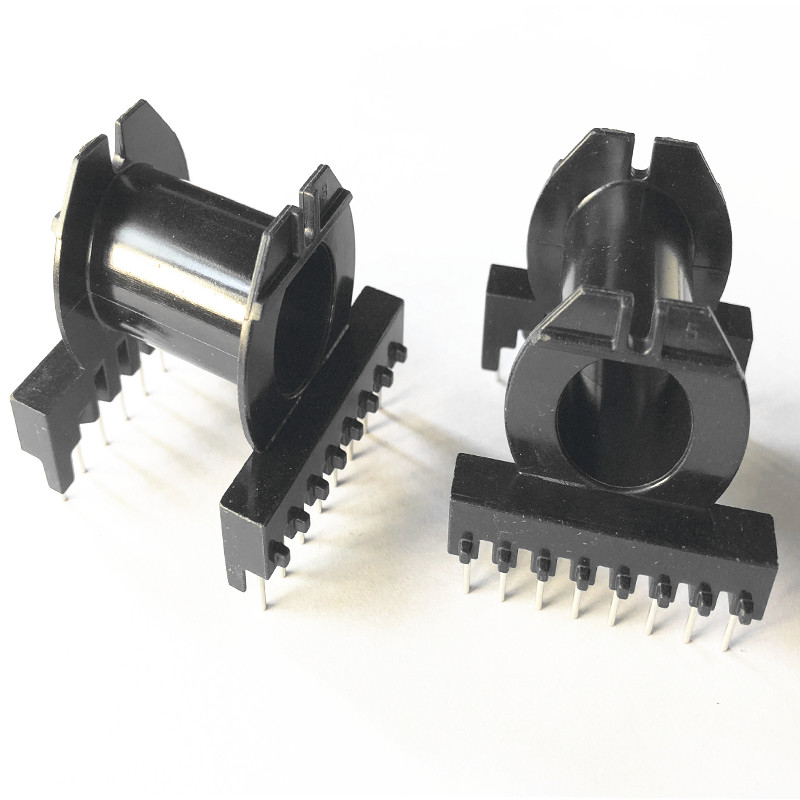

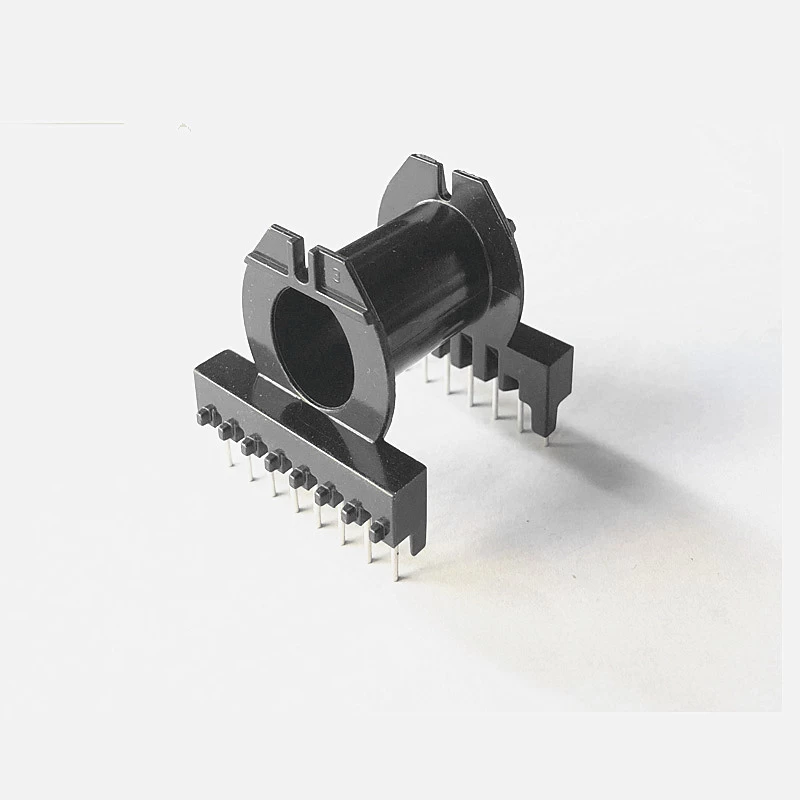

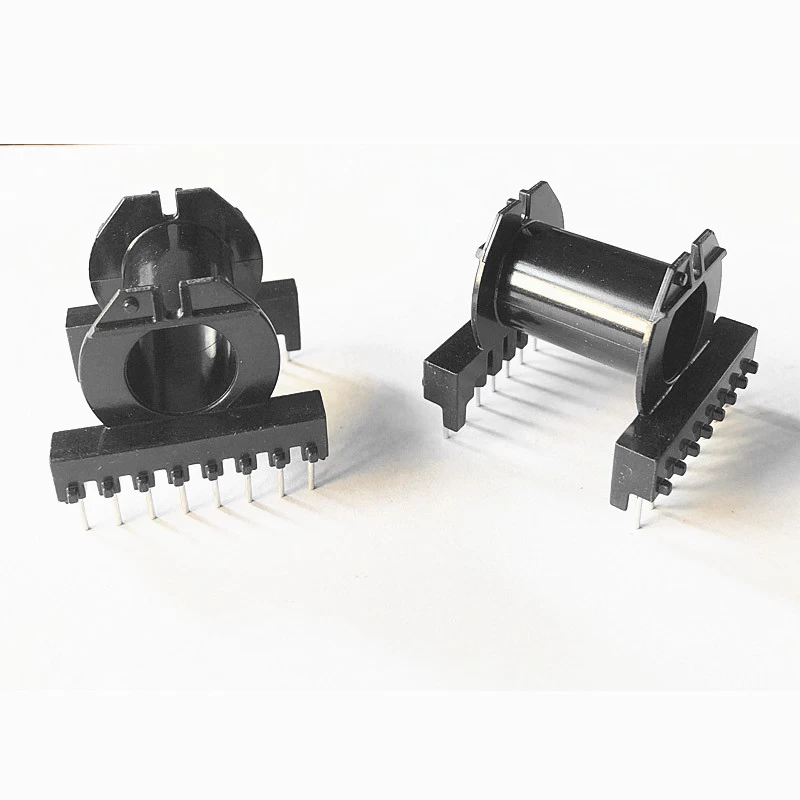

ER42 Power Transformer Horizontal Bobbin

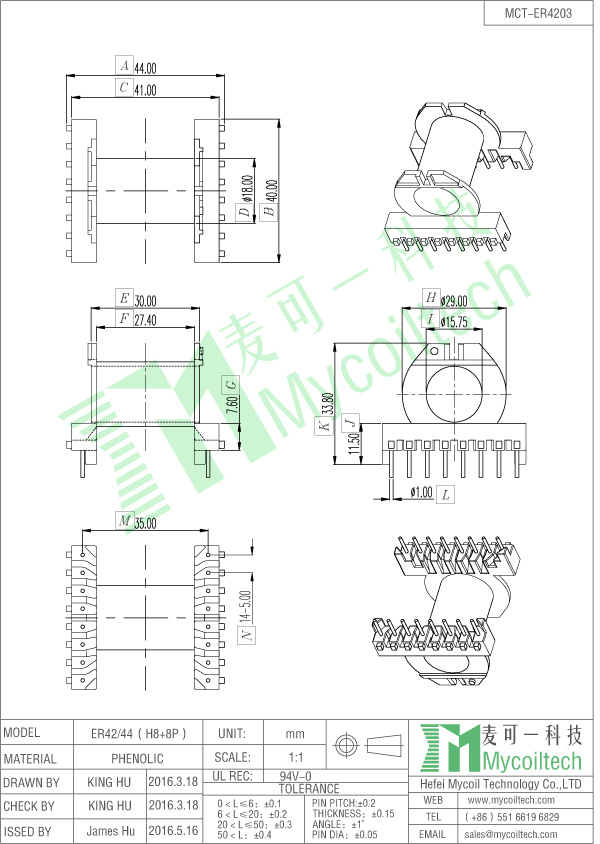

ER42 horizontal transformer frame, 8+8 pin ER42 coil bobbin. Bobbin Size=44.0mmX40.0mmX33.8mm. Pin Pitch=5.0mm. Parallel Distance=35.0mm. ER42 high frequency transformer, with low magnetism leakage and good performance, we can start from samples.



Hot selling ER42 8+8 pin coil former, horizontal ER42 transformer bobbin, welcome small orders.


Quick Details

Part No: MCT-ER4203

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: ER42 Power Transformer Horizontal Bobbin

Product Range: Transformers, coils, bobbins, core ferrite.

Application: Power supply, Electronic equipment, Lighting, Rectifier, Audio

Custom made: High frequency transformer, current transformer, LAN transformer, SMD inductor

Samples lead time: 3-5 days


Product Specification

ER42 high frequency bobbin
