Overview

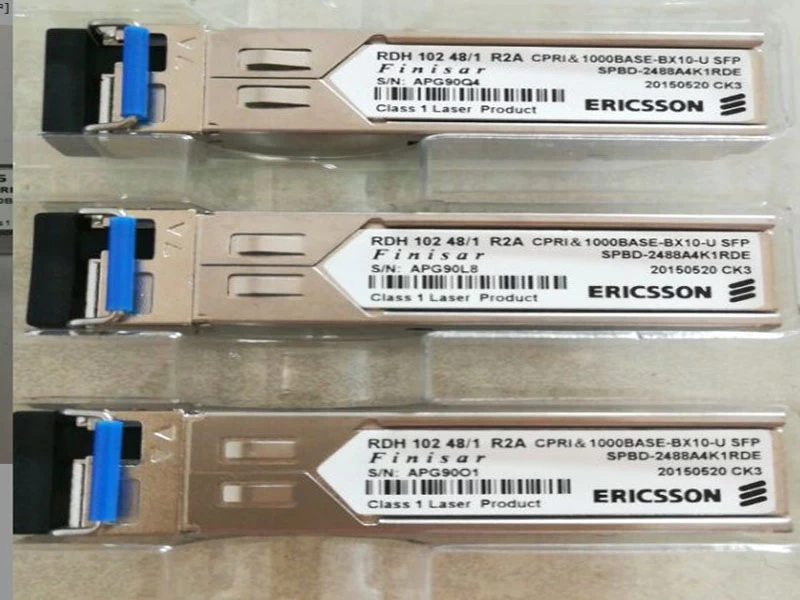

Brand Name: Ericsson
Product Number： RDH 102 48/1
Discription: Ericsson compatible RDH 102 48/1 is SFP (Small Form factor Pluggable) Transceiver supporting 1.063-1.25Gbps data rate in 10 km distance,operating over Single Fiber Single-Mode Fiber (SMF) optical cable;
Specification
|
Media Type:
|
Single-Mode Fiber (SMF)
|
|
TX Wavelength:
|
1310 nm.
|
|
RX Wavelenght:
|
1550 nm.
|
|
Minimum Optical Budget:
|
12 dB
|
|
Maximum Distance:
|
10km
|
|
Supported Data Rate:
|
1.063-1.25Gbps
|
|
Supported Applications:
|
Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps)
|
|
DDM/DOM:
|
Support
|
|
Temperature Range:
|
Standard 0°-70°C
|
|
Connectors:
|
Single LC
|
|
Tx Wavelength Bandwidth:
|
40 nm (1290-1330 nm)
|
|
Rx Wavelength Bandwidth:
|
40 nm (1530-1570 nm)
|
|
Minimum Transmitting Power:
|
-10 dB
|
|
Maximum Transmitting Power:
|
3 dB
|
|
Receiver Sensitivity:
|
-22 dBm
|
|
Receiver Overload:
|
-3 dBm
|
|
Dispersion:
|
70-100 ps/nm
|
|
Transmitter Type:
|
DFB Laser
|
|
Receiver Type:
|
PIN photodiode
|
|
Power:
|
+3.3V single power supply
|
|
Chipset:
|
MAXIM, MINDSPEED, SEMTECH
|
|
Compliance:
|
CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA
|
|
Transceiver Type:
|
SFP
|
