Advantages
to install GPA II CV&AUTO series motor pump install and start the pump
easily.
High
comfort level
Low
noise of the pump's and the whole system's operation.
Low
power consumption
Comparing
to the traditional circulator pumps. GPA II CV&AUTO series motor
pump can consume low the power, and sticks European energy efficiency A mark
that means the lowest power consumption can reach 5W.
Circulation pump
can consume low the power, with the EEI≤0.23-part2
Knob operation makes selection of any control mode simple
No external motor protection required reducing installation time
High-torque start improves startup under harsh conditions
Maintenance free and noiseless due to canned-rotor design and use of robust components
Fast connection plug makes electrical installation quick, safe and easy
Insulating shells are available to minimize heat loss in heating systems

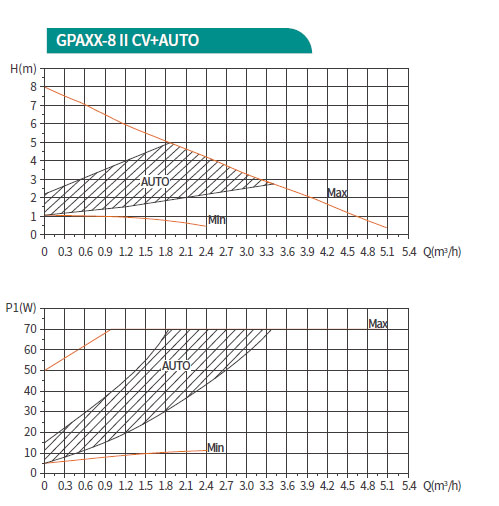

The pump also features two different control modes
Min-Max curve
Auto
The
pump has a ceramic shaft and radial bearings, carbon thrust bearing,
stainless-steel rotor can, bearing plate and rotor cladding, composite
impeller, all of which contribute to long life.LEDs
indicate the actual operating status.
The
pump is self-venting through the system, which contributes to easy
commissioning. The compact design with integrated control box and control panel
on side of the motor fits into most common installations.
The
pump housing is made of cast iron and electro coated to improve the corrosion
resistance.
The
motor is a synchronous permanent-magnet/compact-stator motor characterized by
high efficiency.
The
pump speed is controlled by an integrated frequency converter incorporated in
the control box.
Parameters:
Model: GPA20-8 II CV&AUTO
Power: 5~70W
Max.flow: 3.4m³/h
Max head: 8m
Current: 0.05～0.52A
Voltage/ Frequency: 230V/50HZ
Pump housing: Cast iron
Pumped liquid: Water
Insulation class: H
Degree of Protection: IP42
Liquid temperature range: -30-110℃
Energy(EEI): ≤0.23-Part2
Max System Pressure: 1.0MPa
