ESA-0608AC5-21 Installation Unpacking and Inspection
Make sure that you have received following units.
1 Megatorque Motor

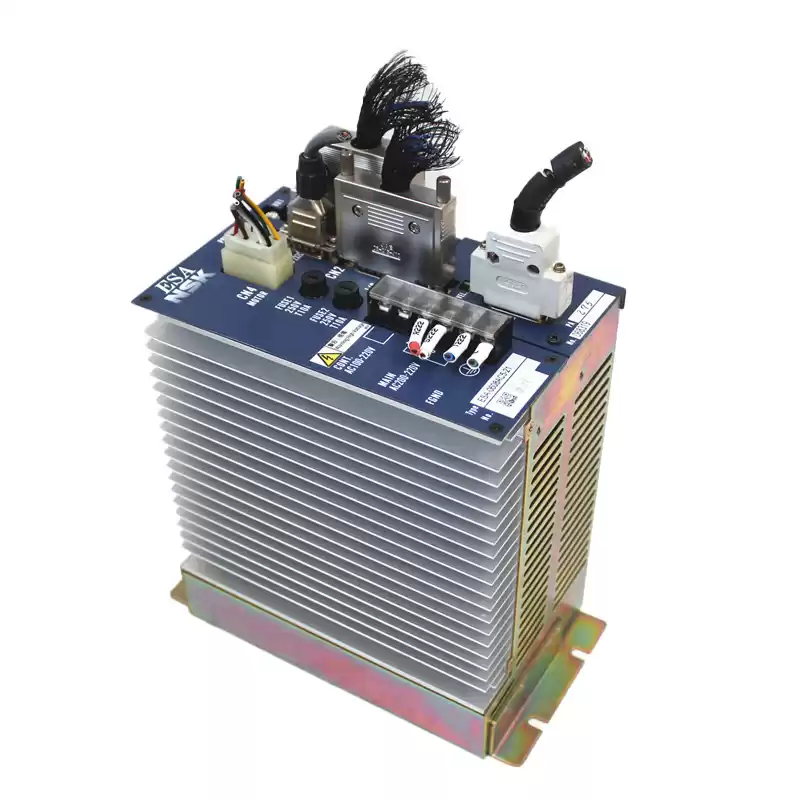

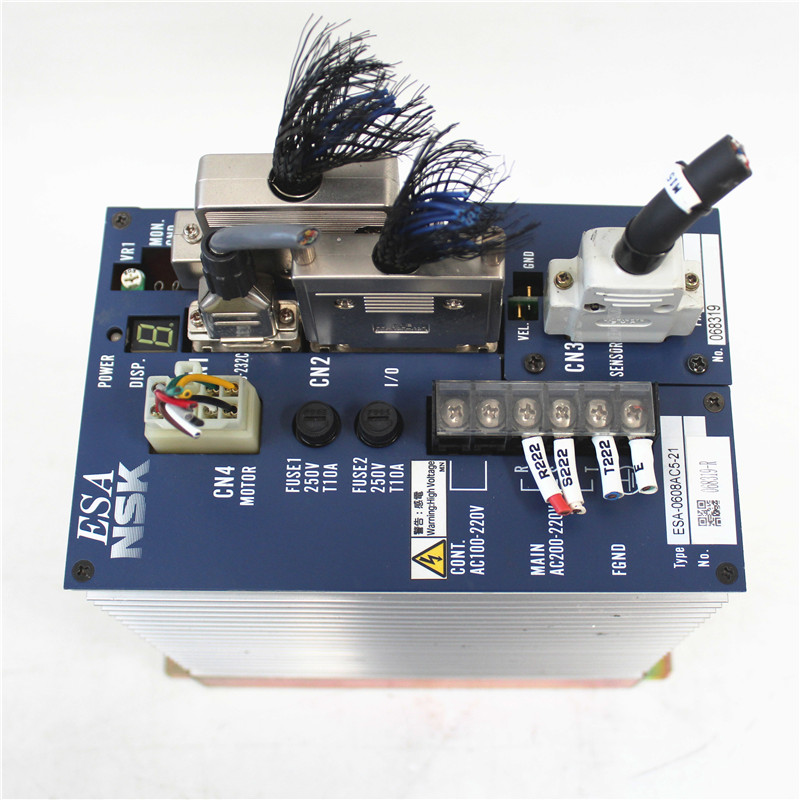

2 Driver Unit (CN2 mating connector and 2 fuse holders are included)
3 Cable Set (Motor and Resolver cable unit)
Inspect shipping containers for damage as an indication that the System might have been mishandled in transit.
When unpacking the System, save all packing materials for reuse in the event that the System needs to be shipped or require service.
Danger : Inspect the Motor and the Driver Unit very closely for damage which
might have occurred in shipment. The Driver Unit is particularly fragile
and should be inspected for warped or bent sheet metal, broken standoffs, and loose or damage electric components.
Rotate Motor’s rotor by hand, without AC power. The rotation should be smooth.
If you suspect damage, do not apply power to the System, since this can cause immediate catastrophic damage to the Driver Unit. Furthermore, a damaged system could be a potential electric shock hazard.
