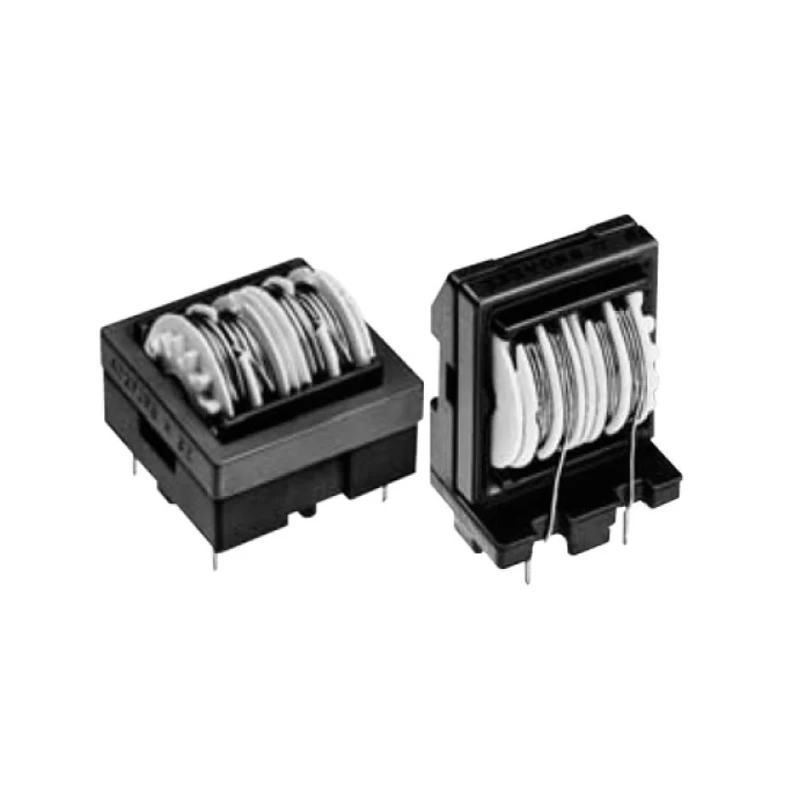

ET28 Series Common Mode Choke For EMI Suppression And Power EMI Noise Filter

ET28 horizontal/vertical common mode chokes are applied to supply and return pairs of conductors, are ideal for EMI filtering of signal and power lines.



ET28 common mode chokes with inductance range 1.8mH~35.0mH are suitable for lighting application, switching mode power suppliers, AC/DC converters and other application. ET28 series common mode choke has small size and large inductance, low cost and high reliability, excellent attenuation characteristics in low frequency, so its convenient to inserted into PCB.


Quick Details

Part NoET28 Series Common Mode Choke

Brand name: MCT

Working frequency range:20kHz-500kHz

Custom made: Available

Operating temperature range: -40~+125

Logo: Can be customized

Storage temperature: +85~-25

Packing: Carton,can custom

Storage humidity: 30 to 95%

Certification: ISO9001,ROHS,CE

Inductance range: 1.8mH~35mH

OEM: Available

Rated current: 1.0~4.0   50Hz(A)

Shipping: Air, Ship, etc

DC resistance: 0.05Ω~0.8Ω    @25°C

MOQ: Any quantity

Shape type: horizontal, vertical  Weight≈30g

Lead time: 25 days after payment


Part Information

Product Name: ET28 Common Mode Choke For EMI Suppression And Power EMI Noise Filter

Applications: Switching power supply, Lighting equipment, Data transmission, Wind generators, Frequency Converter.

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Advantages:Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.

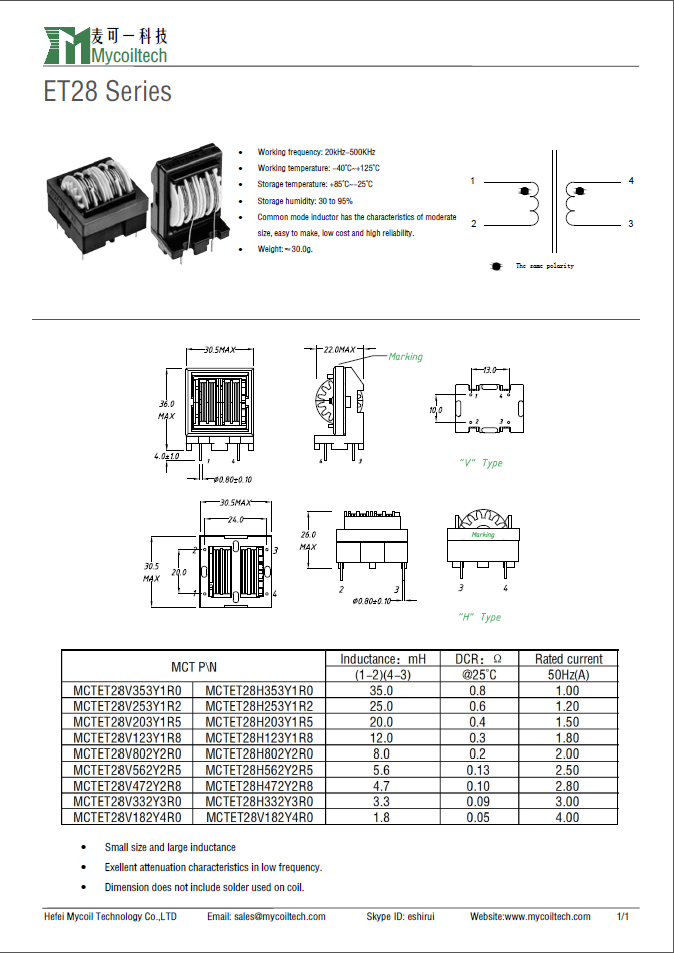

Product Specification

 ET28 Series Common Mode Choke EMI Filter
