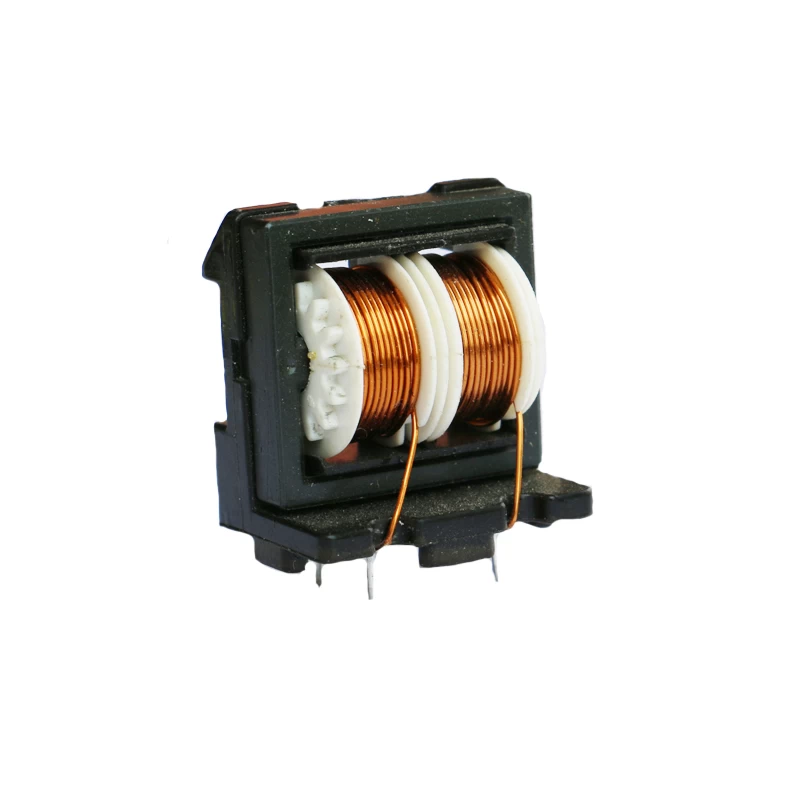

ET35 Series Common Mode Choke Coil And Line Filter With 4.7mH To 33.0mH Inductance

ET35 Common Mode Choke has high impedance at applicable frequency, high self-resonant frequency and provides excellent noise suppression for high frequency ranges.



ET35 common mode choke coil is one type of common mode choke,its inductance range is 4.7mH to 33.0mH. Commonly used in computer switching power supply filter common mode electromagnetic interference(EMI) signal. In the board design, the common mode inductor is also plays the role of EMI filtering, for suppressing the generation of electromagnetic waves generated by high-speed signal lines.


ET35 series common mode chokes are widely used in electronic and telecommunication and other industry. Such as various switching power supplies, EMI filtering of single, solar inverters, automotive applications, suppression of radiation noise in electronic devices, USB line for PCs and peripheral equipment. When you are looking for customized common mode choke inductors, you can according the different electrical parameters, by Inductance(4.7mH, 5.6mH, 8.2mH, 10.0mH, 12.0mH, 15.0mH, …), Impedance (67 Ω, 90 Ω, 1 kΩ, 10 kΩ, …), Rated Current (1.5A, 1.8A, 2.7 A, 4.0 A,…) and DCR(0.4Ω, 0.3Ω, 0.2Ω, …)


Quick Details

Part No: ET35 Series Common Mode Choke

Brand name: MCT

Working frequency range:20kHz-500kHz

Custom made: Available

Operating temperature range: -40℃~+125℃

Logo: Can be customized

Storage temperature: +85℃~-25℃

Packing: Carton,can custom

Storage humidity: 30 to 95%

Certification: ISO9001,ROHS,CE

Inductance range: 4.7mH~33mH

OEM: Available

Rated current: 1.5~4.0   50Hz(A)

Shipping: Air, Ship, etc

DC resistance: 0.06Ω~0.4Ω    @25°C

MOQ: Any quantity

Shape type: horizontal, vertical  Weight≈30g

Lead time: 25 days after payment


Part Information

Product Name: ET35 Series Common Mode Choke Coil And Line Filter With 4.7mH To 33.0mH Inductance

Applications: Switching power supply, Lighting equipment, Data transmission, Wind generators, Frequency Converter.

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Advantages:Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.

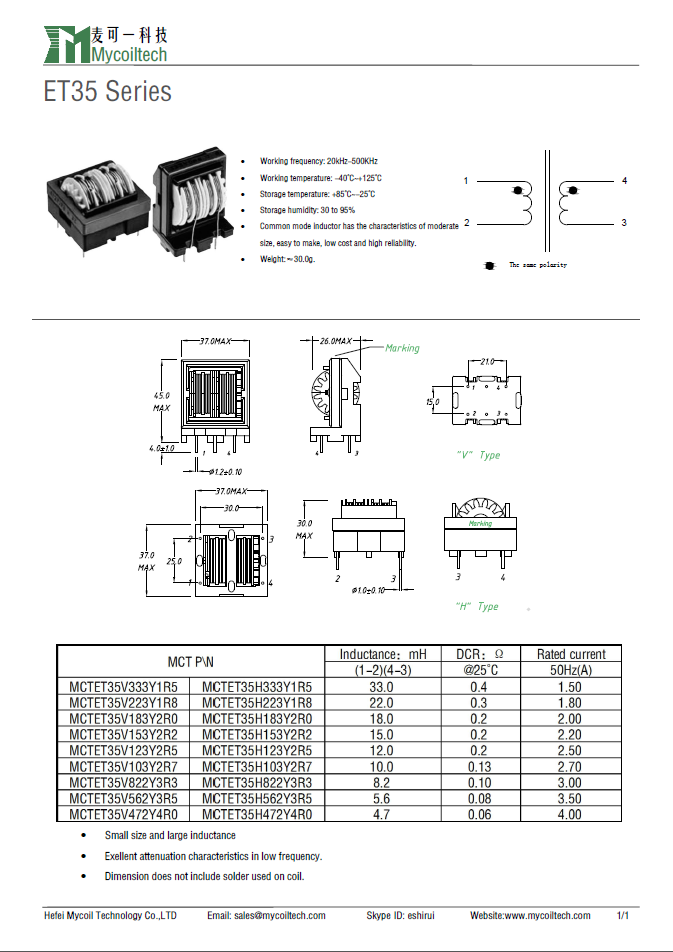

Product Specification

 33.0mH Inductance Common Mode Chokes And Filters
