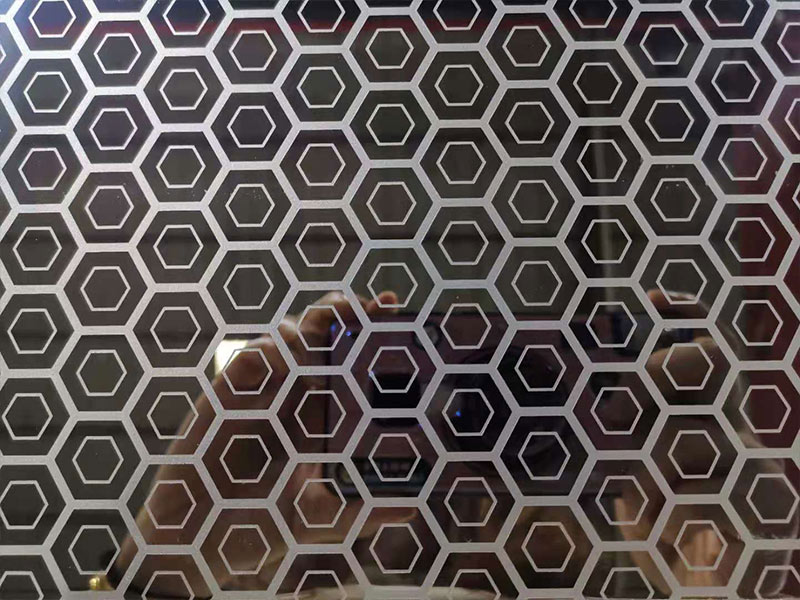

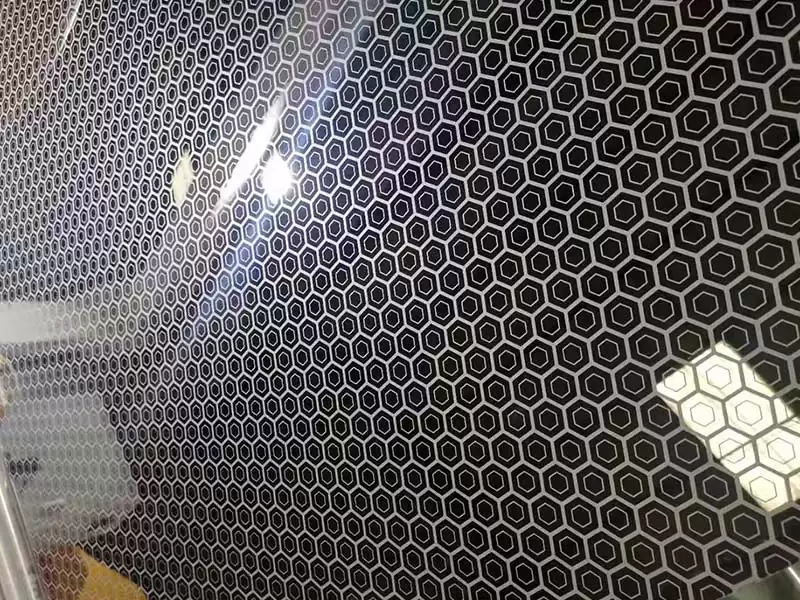

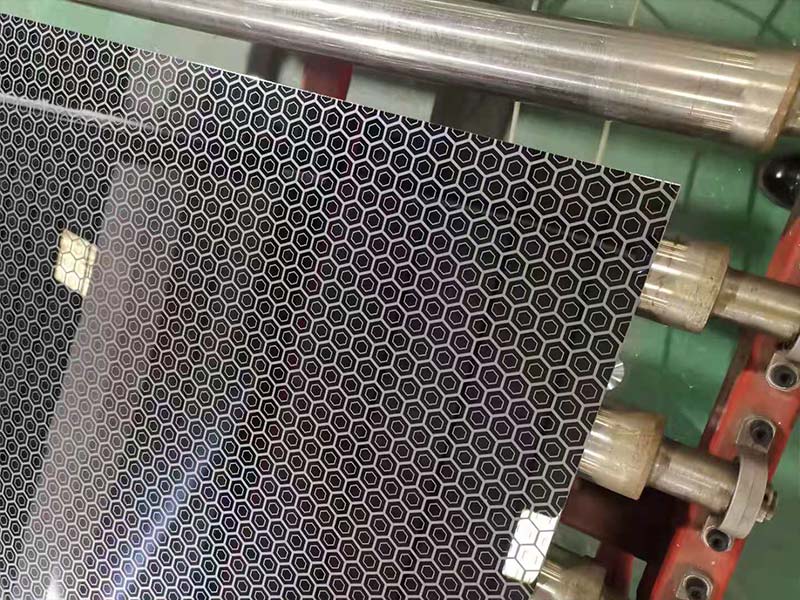

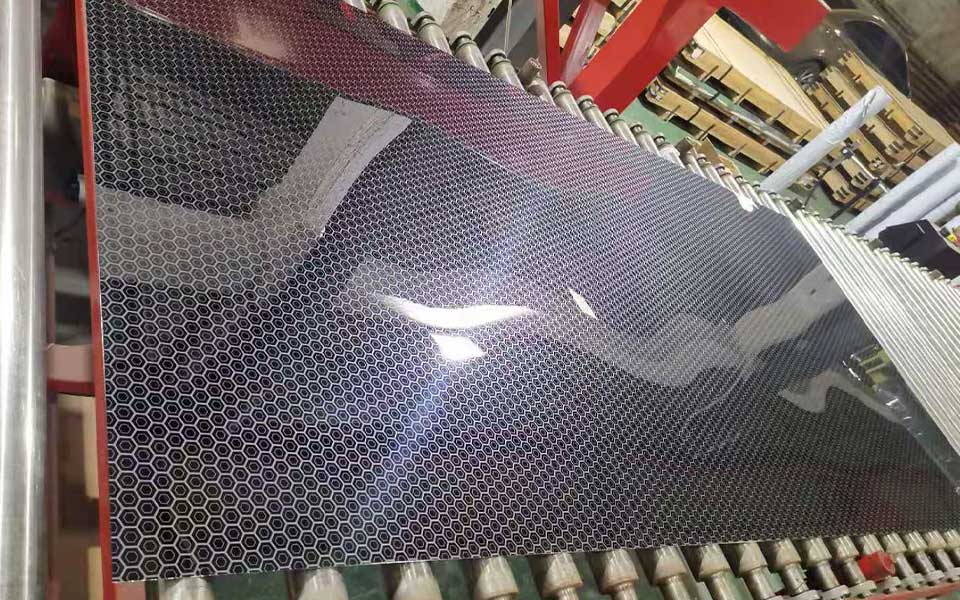

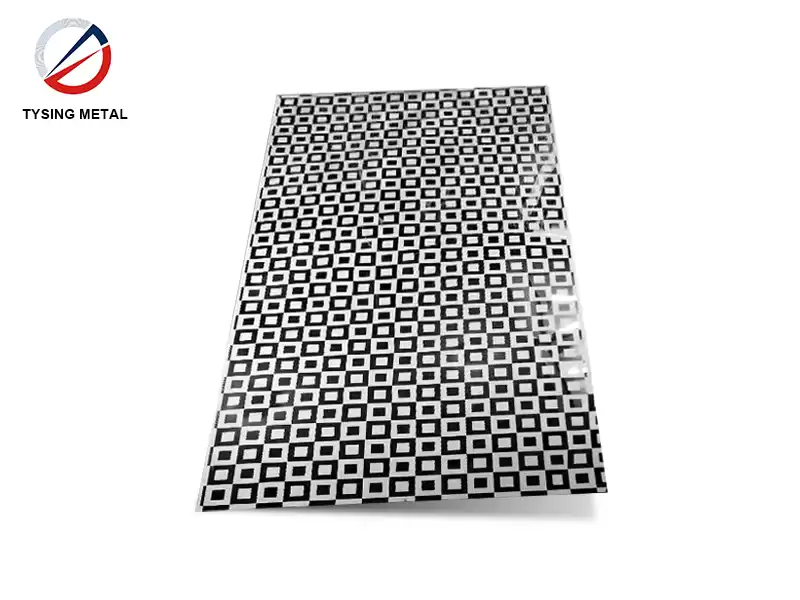

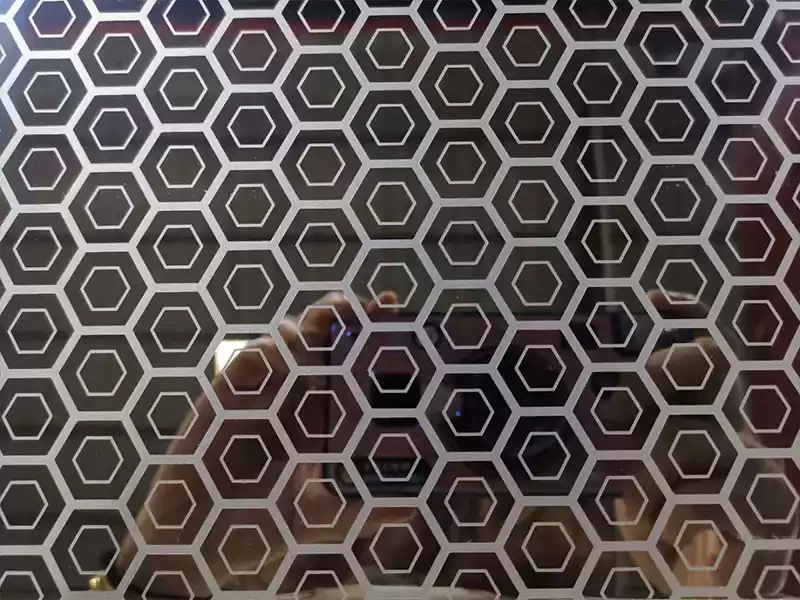

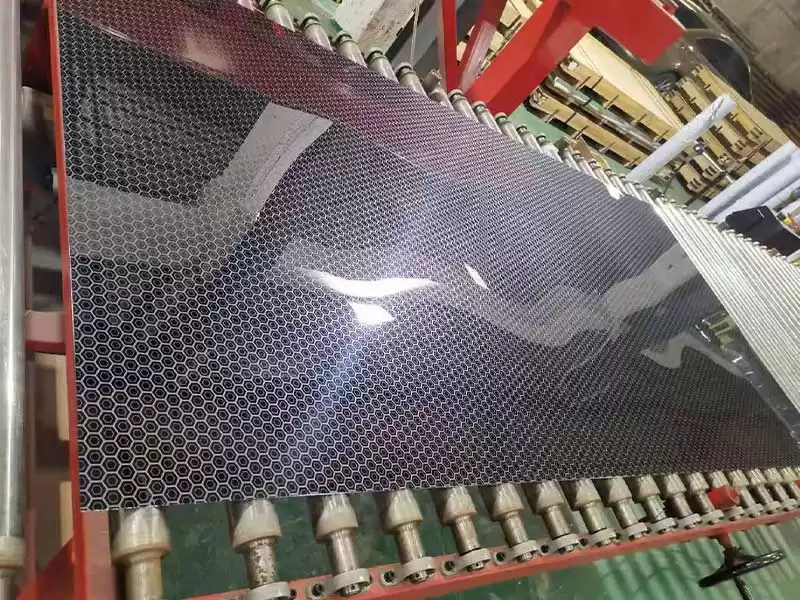

Etched Stainless Steel Sheet for Cabin and Doors
We have more than 300 kinds of etching molds for customers to choose.As long as it is the etching mold we have, there is no extra mold fee.
If the customer needs a customized etching pattern,we can make a corresponding etching mold, and then manufacture the desired pattern.
| Name |
Etched Stainless Steel Sheet for Cabin and Doors |
| Material Grade |
Stainless Steel 201/304/316 |
| Thickness |
0.5-3.0mm |
| Size |
1000*2000mm 1219*2240mm,1219*2438mm,1500*3000mm |
| Color |
Gold,Rose Gold,Bronze,Black,Champagne,White Gold,Brass,Etc |
| MOQ |
30pcs |
| Packing |
PVC+ waterproof paper + strong sea-worthy wooden package |
| Payment Term |
T/T, L/C at sight |
|
Chemical composition and mechanical properties of stainless steel coils
|
|
Grade
|
Chemical Composition (%)
|
Mechanieal Performece
|
|
C
|
Si
|
Mn
|
P
|
S
|
Ni
|
Cr
|
Mo
|
Hardness
|
|
201
|
≤0.15
|
≤1.00
|
5.5/7.5
|
≤0.060
|
≤0.030
|
3.5/5.5
|
16.0/18.0
|
-
|
HB≤241,HRB≤100, HV≤240
|
|
304
|
≤0.08
|
≤1.00
|
≤2.00
|
≤0.045
|
≤0.03
|
8.0/11.0
|
18.00/20.00
|
-
|
HB≤187,HRB≤90,HV≤200
|
|
316
|
≤0.08
|
≤1.00
|
≤2.00
|
≤0.045
|
≤0.03
|
10.00/14.00
|
16.0/18.0
|
2.00/3.00
|
HB≤187, HRB≤90 HV≤200
|
|
316L
|
≤0.03
|
≤1.00
|
≤2.00
|
≤0.045
|
≤0.03
|
10.00/14.00
|
16.0/18.0
|
2.00/3.00
|
HB≤187, HRB≤90 HV≤200
|
|
410
|
≤0.15
|
≤1.00
|
≤1.25
|
≤0.060
|
≤0.030
|
≤0.060
|
11.5/13.5
|
-
|
HB≤183, HRB≤88 HV≤200
|
|
430
|
≤0.12
|
≤1.00
|
≤1.25
|
≤0.040
|
≤0.03
|
-
|
16.00/18.00
|
-
|
HB≤183, HRB≤88 HV≤200
|

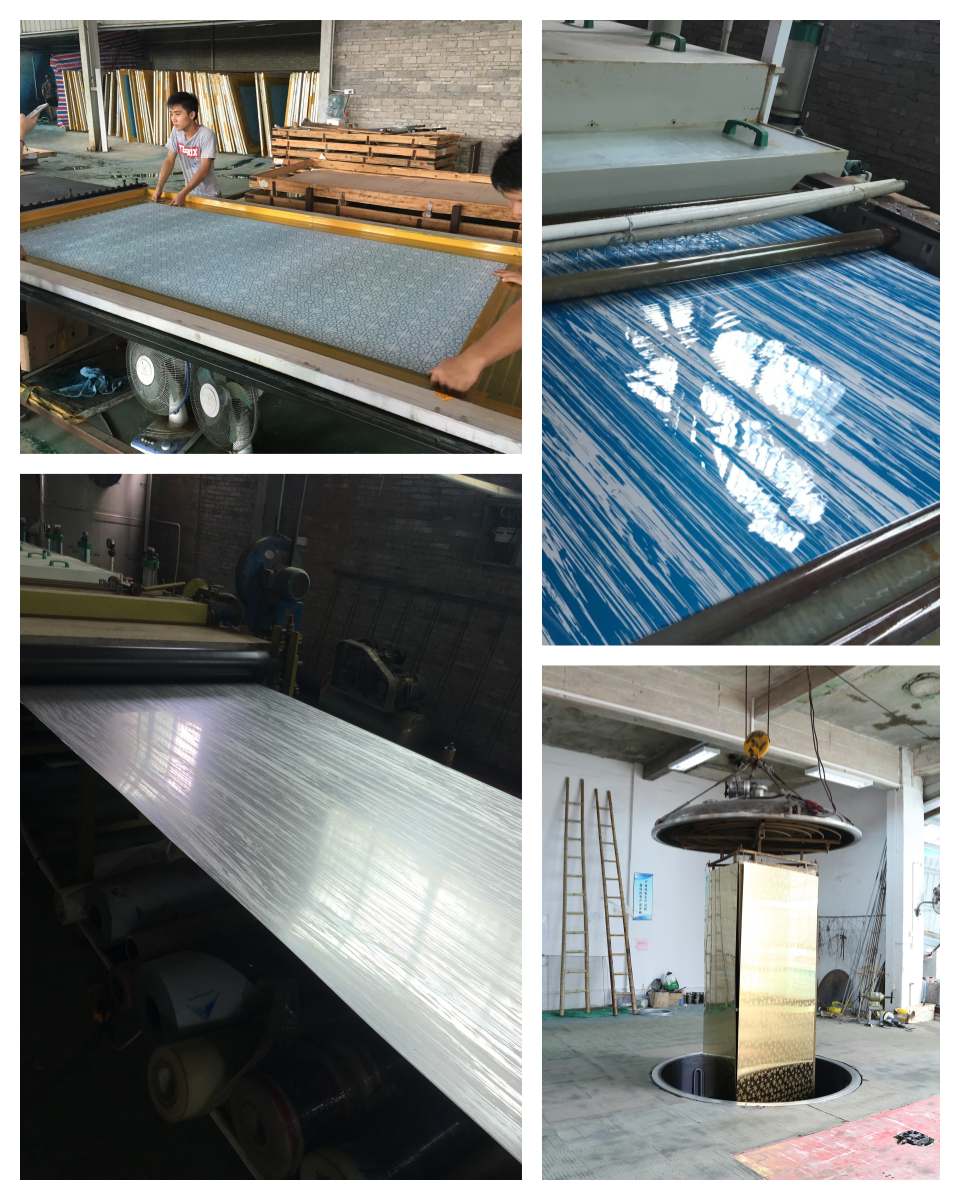

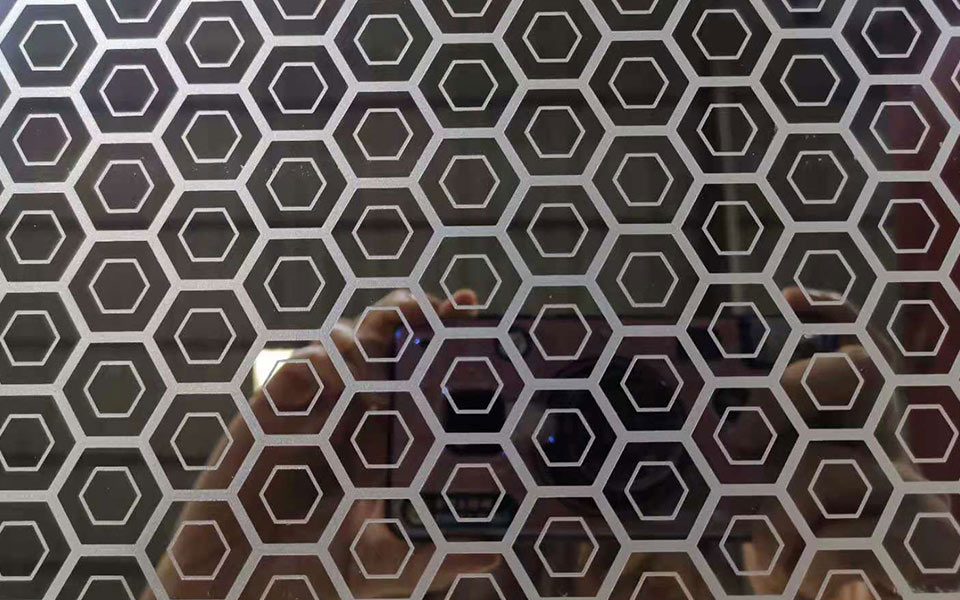

Elevator Stainless Steel Sheet etched patterns are created by selectively coating polished or brushed surfaces with an acid-resistant protective film and acid-etching the unprotected areas. The acid-resistant protective film can be pasted by hand-painting, silk screen printing or other methods. Improper etching can weaken the protective film and cause rough edges. Etching removes a thin layer of stainless steel, changing the color to a dull silvery gray and roughening the surface to create the desired pattern. The etched pattern can be left as is or made more reflective, and both custom and stock patterns are available.

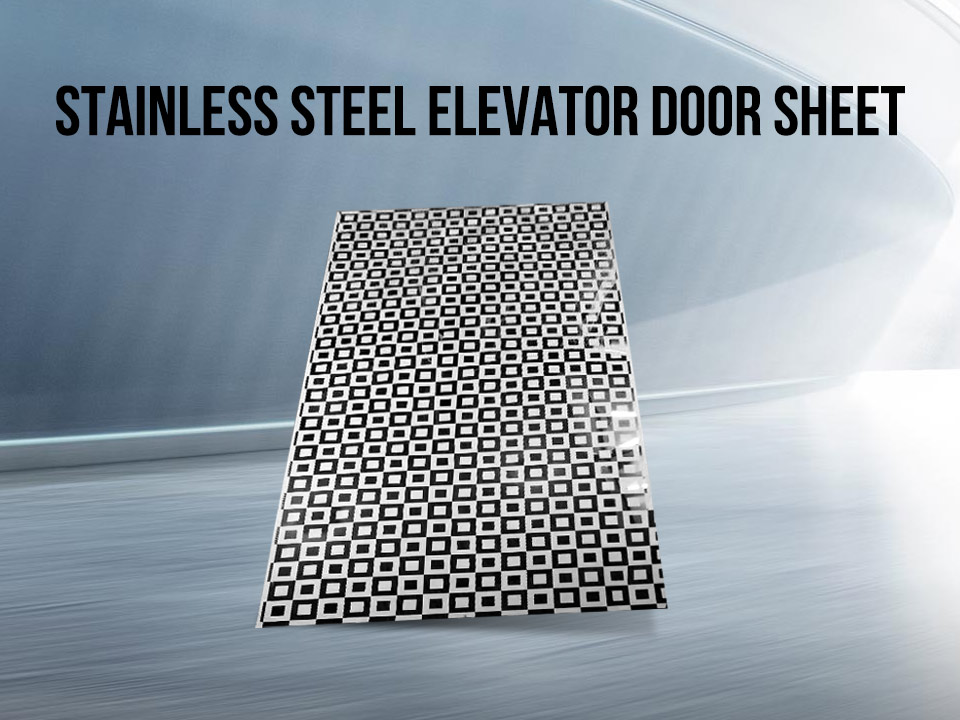

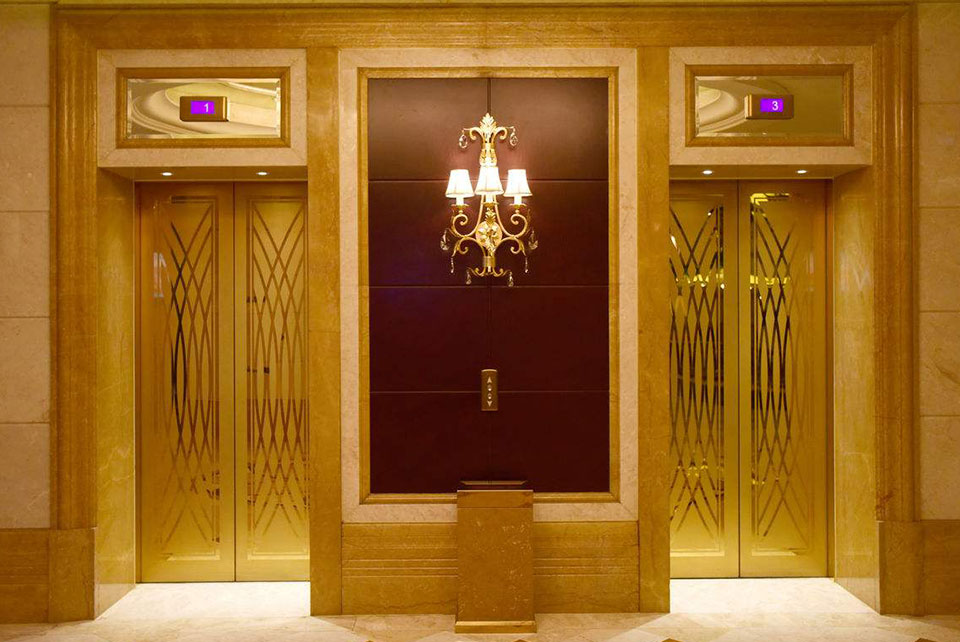

The Stainless Steel Elevator Doors etched finish is chemically etched on the surface of stainless steel to produce various required patterns.The pre-prcess sheet can be 8K mirror finish,hairline finish and sandblasting finish.After etching,the etching sheet surface can be further processed.Stainless steel etched sheets can be used for complex processes such as partial processing,brush,color coating,and partial titanium plating.The stainless steel etched sheet is light and dark patterns and brilliant colors.
Stainless Steel Appliances

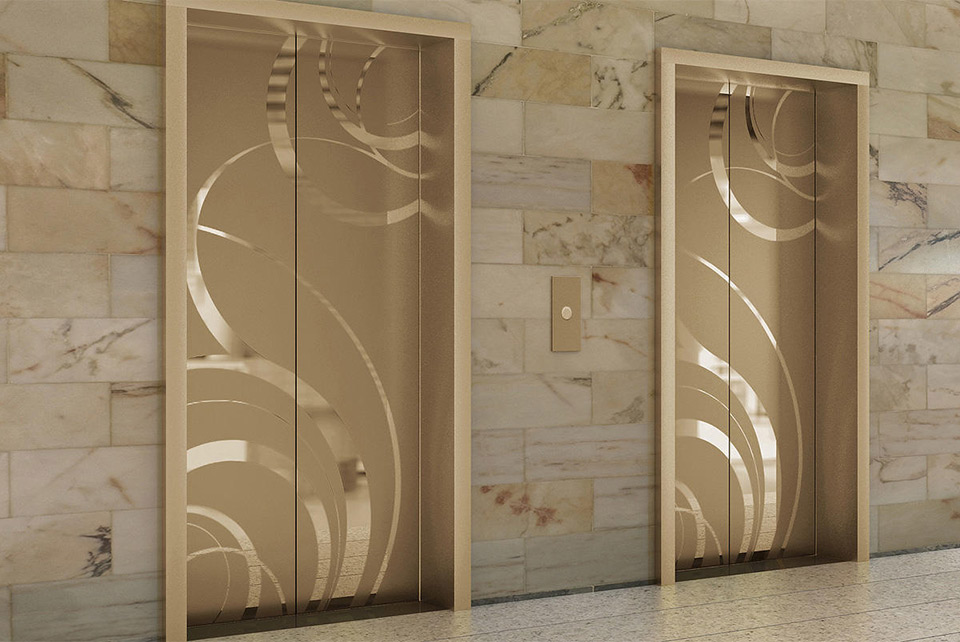

Etched stainless steel sheets have different patterns and colors,and can be customized,which enriches the choices of Stainless Steel Elevator decoration.Because of the characteristics of stainless steel,it can be corrosion-resistant and high-strength.It has a long service life when used on elevators,is easy to maintain,and reduces the cost of use.Moreover,stainless steel is easy to process,and can be bent and welded into different sizes and shapes,which is convenient for the production of Stainless Steel Elevator Cabin.
Characteristics of Chemical Stainless Steel Etching Stainless Steel Etching Technology
1.There is no need for tools such as electrodes,masters, etc.,so there is no maintenance fee for these tools.
2.The time required from planning to production is short and can be used for short-term processing.
3.The physical and mechanical properties of the material are not affected by processing.
4.The Processing is not restricted by shape,area and weight.The processing is not limited by hardness and brittleness.
5.All metals (iron, stainless steel, aluminum alloys,copper alloys,nickel alloys,titanium.
6.Can be processed with high precision.The complicated,irregular and discontinuous design and processing can be implemented.
7.When the area is large,the processing efficiency is good like 4'x8' Stainless Steel Sheet,but when the area is small,the efficiency is worse than that of mechanical processing.
8.It is easy to obtain high precision in horizontal cutting,but it is difficult to obtain the precision of machining on the same machine in the depth and vertical directions.
FAQ:
1. How to get quotation?
Confirm the stainless steel grade 201/304/316/43.
The stainless steel sheet size,standard size is 1219*2438mm
The thickness 03-3.0mm
The quantity
The surface finish and color.
Better let us know what is the usage.
Then we can know quote best price for you.
2. What is the Minimal Order Quantity(MOQ)?
Usually our MOQ is 50pcs.If have special request,we can check the quantity together.
3. Can you OEM or ODM?
Yes we can.We can make stainless steel sheet following you sample.And make right package for you.
4. What is your lead time?
7 Days for sample.
25-30 Days for bulk production.
