Hot selling high frequency transformers, SMPS transformers, high current transformers, factory price and best quality, we are professional transformer factory, we have more than 10 years manufacturing experience, we also can design transformers according to customer's requirements.
Quick Details
|
Part No: Flexible SMPS-Transformer ETD29
|
Brand name: MCT
|
|
Insulation test voltage: 3750V
|
Custom made: Available
|
|
Low leakage inductance
|
Logo: Can be customized
|
|
Transformer with multi-winding
|
Packing: Carton, can custom
|
|
Operating temperature -40°C~+125°C
|
MOQ: Any quantity
|
|
Certification: ISO9001,ROHS,CE
|
OEM: Available
|
|
Lead time: 25 days after payment
|
Shipping: Air, Ship, etc
|
Part Information

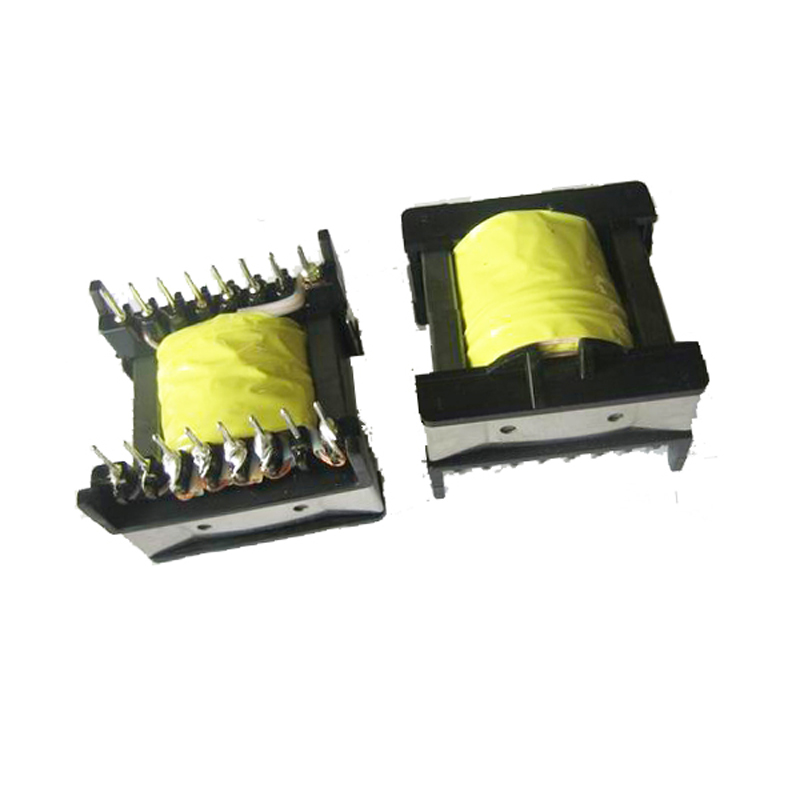

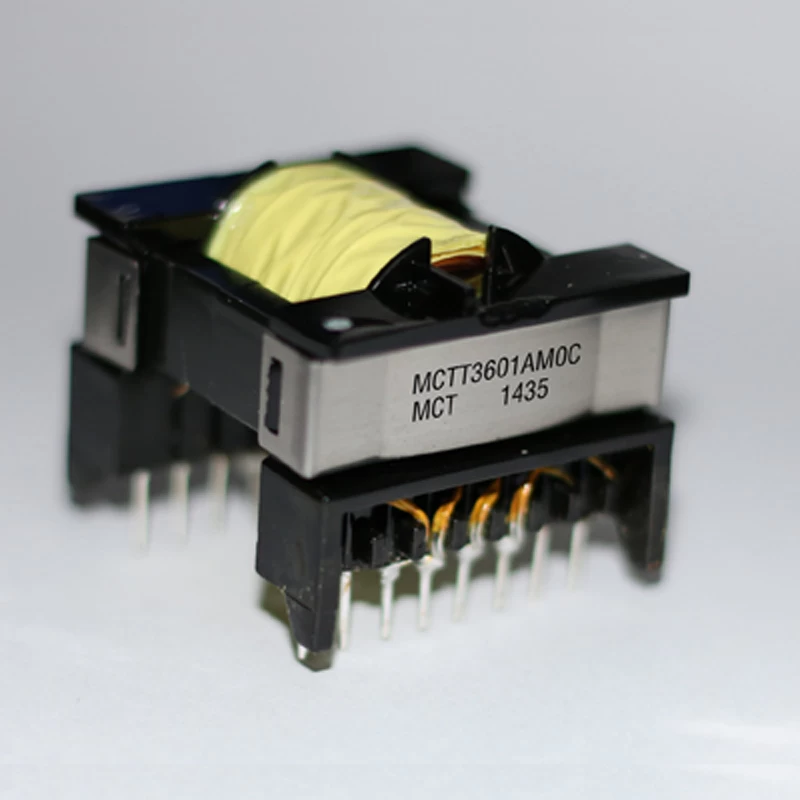

Product Name: ETD29 High Frequency Switching Mode Power Supply Transformer
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Flyback converters. Forward converters. Push-pull converters. Step-Up/Step-down converters. Sepic converters(single ended primary inductor converter)
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

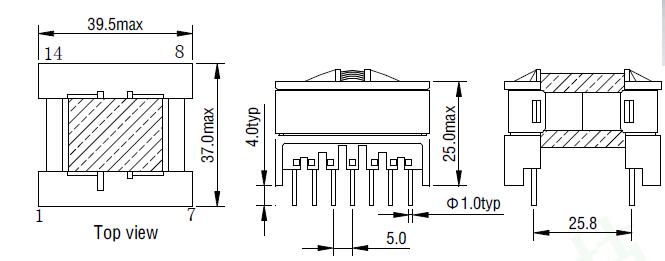

Product Specifications
Electrical Data and Part Number(PN)
|
Lp in uH
|
L1..L6 in mA
|
Lsat in mA
|
DCR/mΩ
|
MCT PN
|
|
75.0
|
2200
|
400
|
45
|
MCT-ED075
|
|
45.0
|
2200
|
820
|
45
|
MCT-ED045
|
|
25.0
|
2200
|
1850
|
45
|
MCT-ED025
|
|
15.0
|
2200
|
3050
|
45
|
MCT-ED015
|
