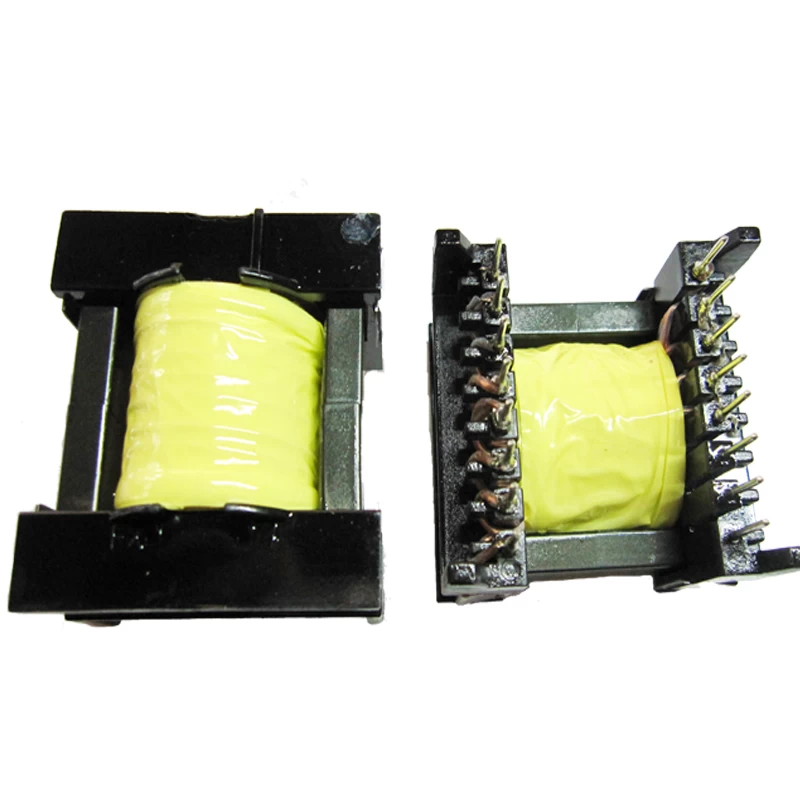

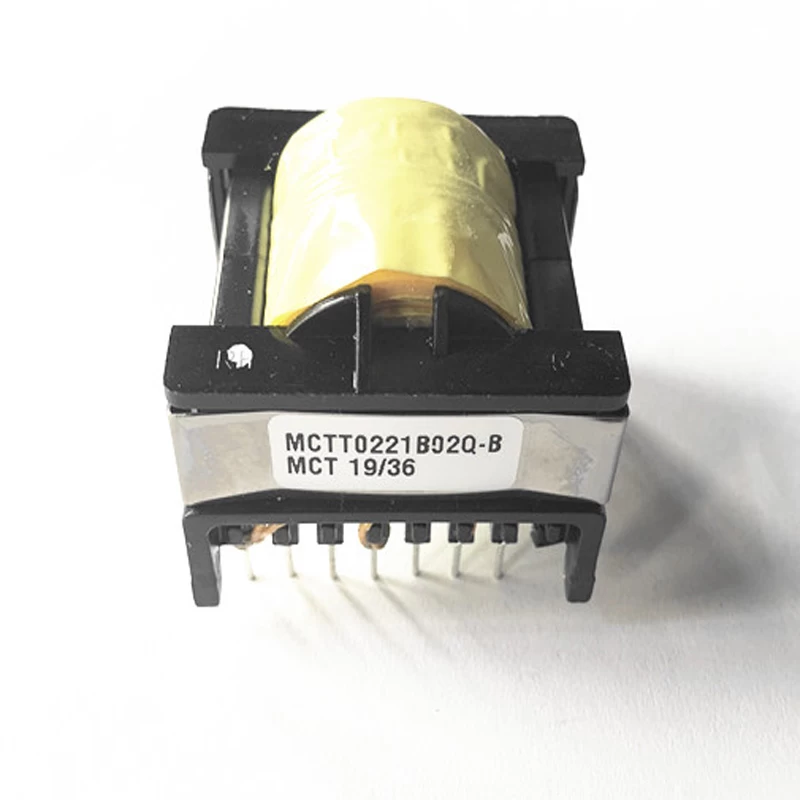

High frequency flexible SMPS transformer, transformer factory direct selling, high quality and competitive price ETD39 flyback transformers.
Quick Details
|
Part No: Flexible SMPS-Transformer ETD39
|
Brand name: MCT
|
|
Insulation test voltage: 3750V
|
Custom made: Available
|
|
Low leakage inductance
|
Logo: Can be customized
|
|
Transformer with multi-winding
|
Packing: Carton, can custom
|
|
Operating temperature -40°C~+125°C
|
MOQ: Any quantity
|
|
Certification: ISO9001,ROHS,CE
|
OEM: Available
|
|
Lead time: 25 days after payment
|
Shipping: Air, Ship, etc
|
Part Information
Product Name: ETD39 High Frequency Switch Mode Power Supply Transformer
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Flyback converters. Forward converters. Push-pull converters. Step-Up/Step-down converters. Sepic converters(single ended primary inductor converter)
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specifications
Electrical Data and Part Number(PN)
|
Lp in uH
|
L1..L6 in mA
|
Lsat in mA
|
DCR/mΩ
|
MCT PN
|
|
125.0
|
3200
|
320
|
35
|
MCT-ED125
|
|
75.0
|
3200
|
680
|
35
|
MCT-ED075
|
|
40.0
|
3200
|
1600
|
35
|
MCT-ED040
|
|
25.0
|
3200
|
3200
|
35
|
MCT-ED025
|
