ETL 12V 72w universal led driver suppliers

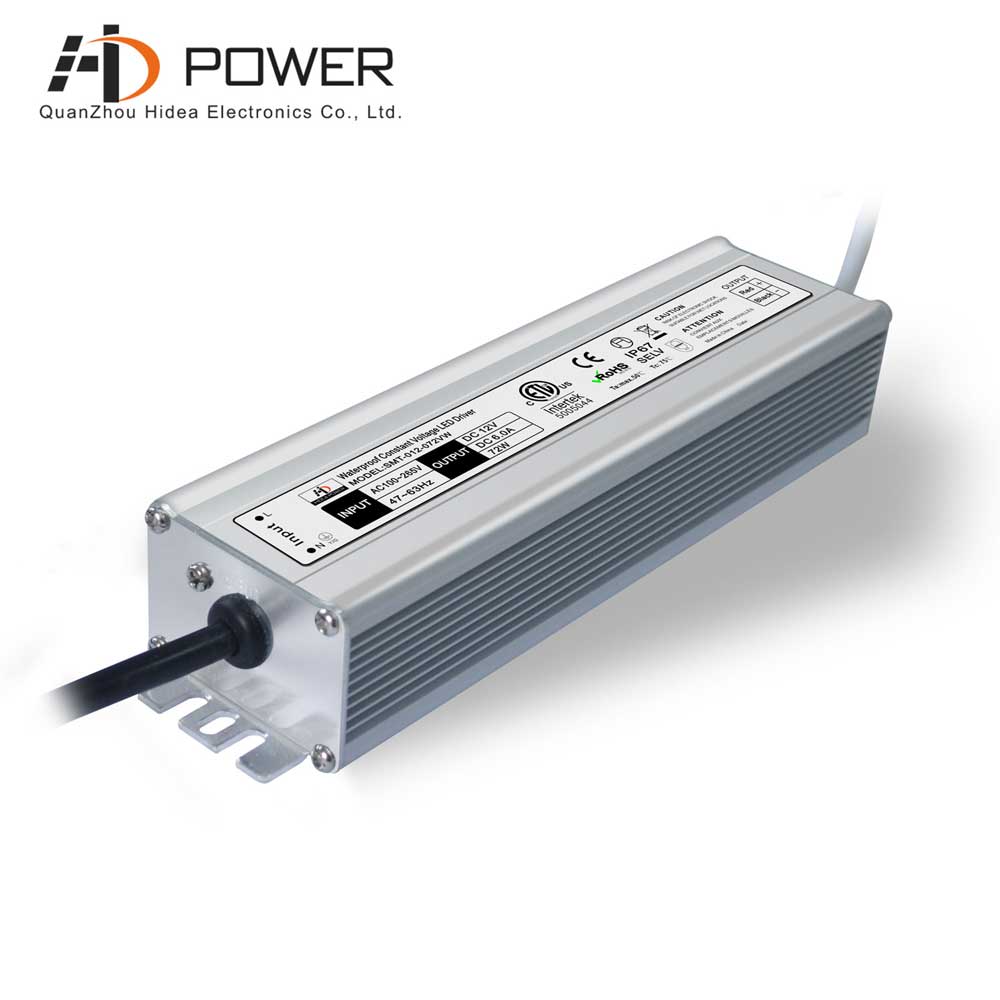

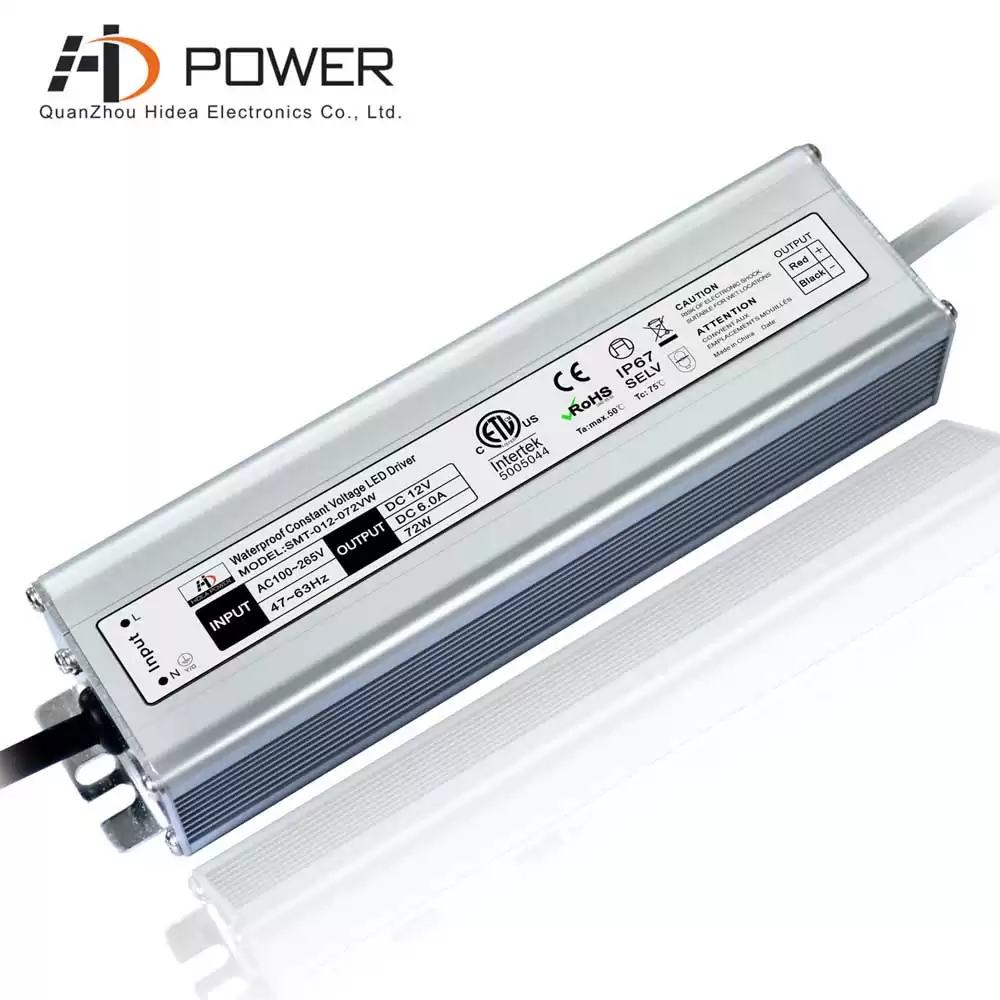

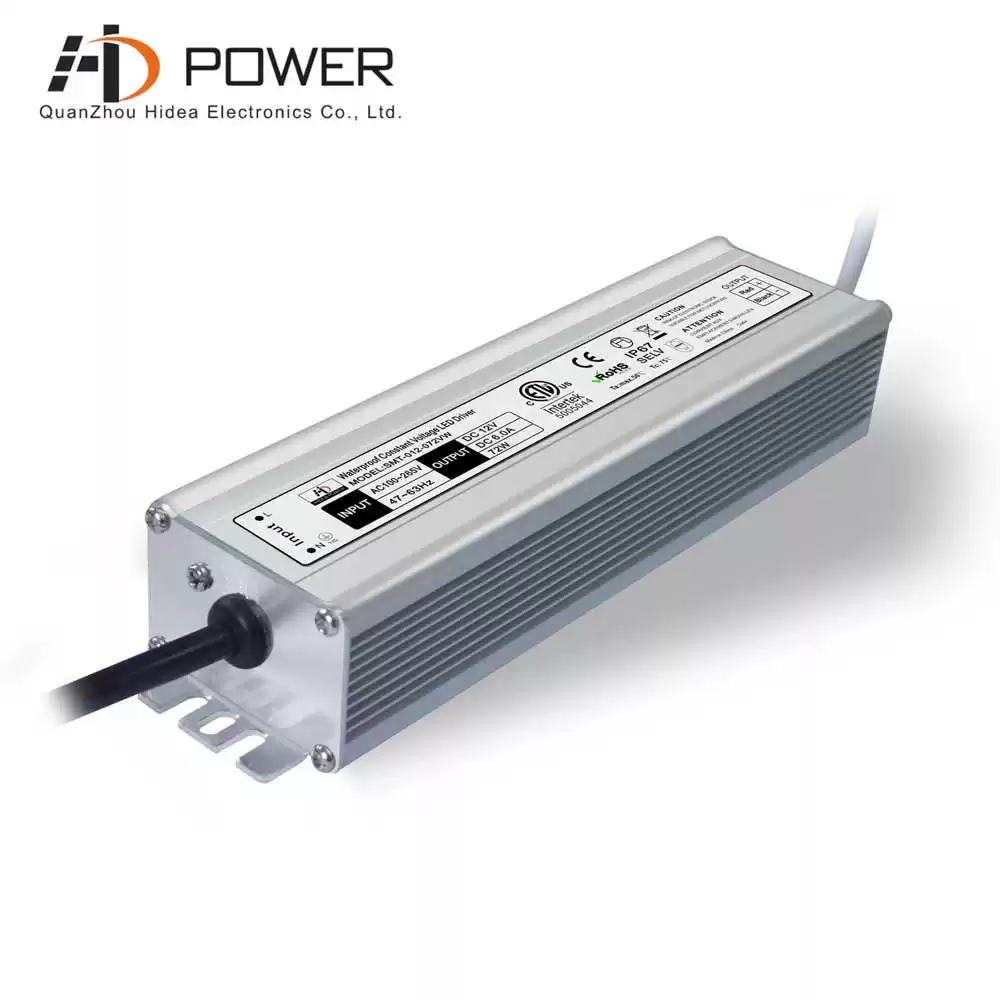

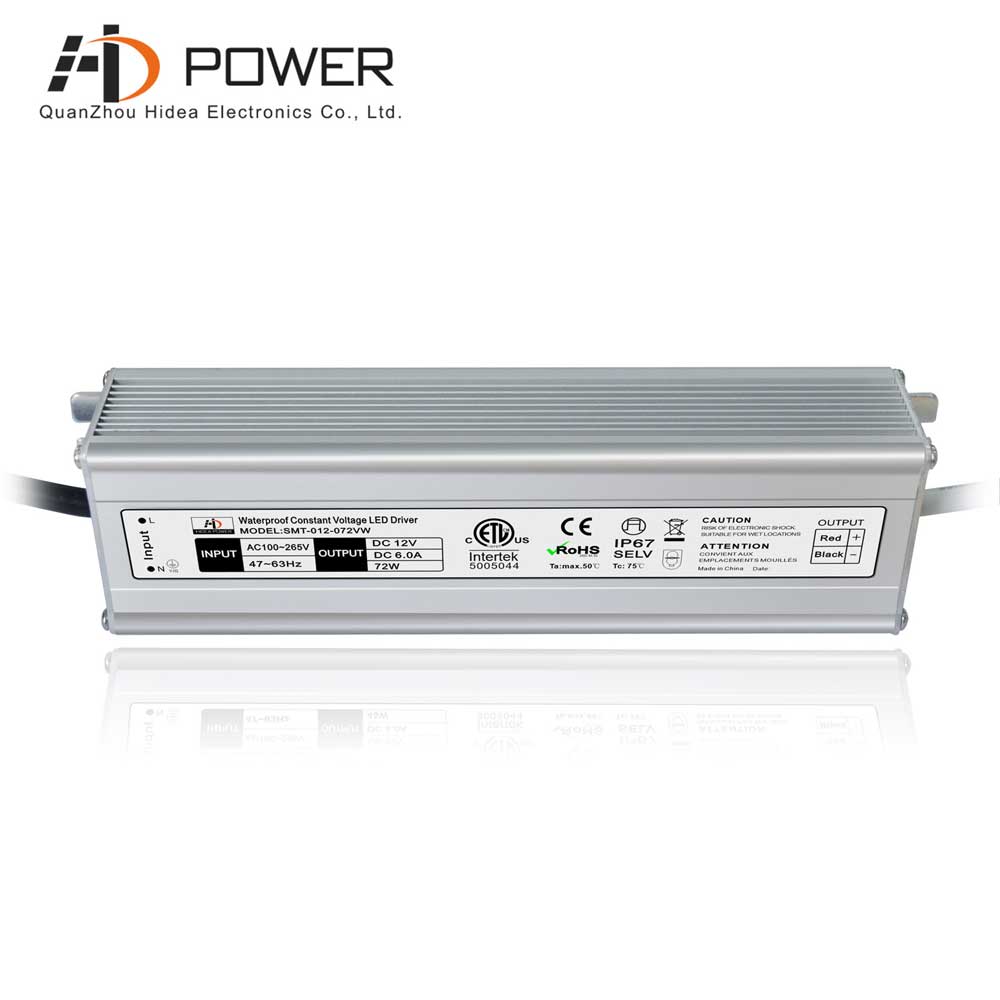

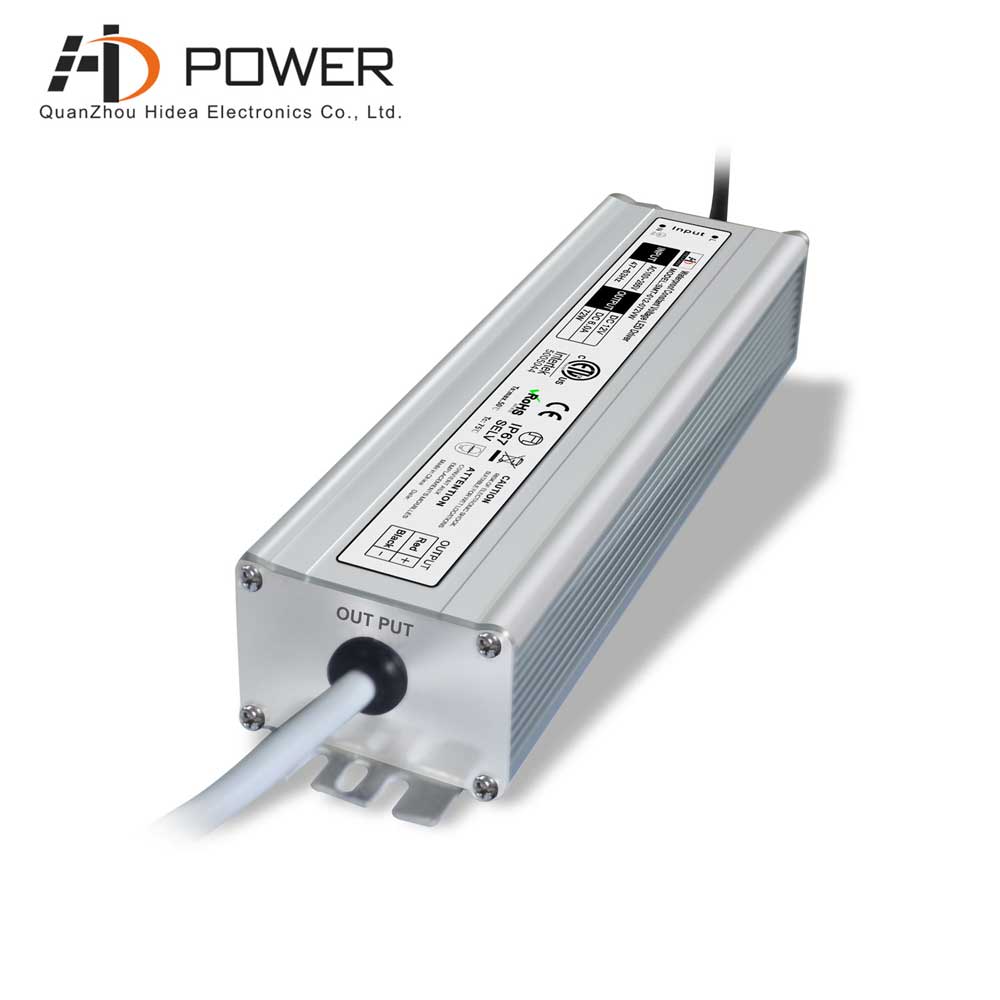

SMT-012-072VW is IP67 led driver 72w in 12vdc, output 6amp current, standard AC and DC output cord 18AWG UL listed JTSW standard, work with DELIGHT LED RBG lights 12v.
Specification
|
MODEL
|
SMT-012-072VW
|
SMT-024-072VW
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
6.0A
|
3.0A
|
|
CURRENT RANGE
|
0~6.0A
|
0~3.0A
|
|
RATED POWER
|
72W
|
72W
|
|
RIPPLE&NOISE(max)
|
1.2V
|
1.2V
|
|
voltage TOLERANCE
|
12V±5%
|
24V±5%
|
|
SETUP RISE TIME
|
80ms/110,220VAC
|
80ms/110,220VAC
|
|
HOLD UP TIME(Typ.)
|
60ms/110,220VAC
|
60ms/110,220VAC
|
|
INPUT
|
VOLTAGE RANGE
|
90~135/170~265Vac
|
90~135/170~265Vac
|
|
FREQUENCY RANGE
|
50~60Hz
|
50~60Hz
|
|
POWER FACTOR(Typ.)
|
|
|
|
EFFICIENCY(Typ.)
|
﹥84%
|
﹥84%
|
|
AC CURRENT(Typ.)
|
0.5A/110V,220VAC
|
0.5A/110V,220VAC
|
|
INRUSH CURRENT (Typ.)
|
COLD START 30A/110,220VAC
|
|
PROTECTION
|
Short circuit
|
Protection type:recovers automatically after condition is removed
|
|
Overload
|
overload protected@145-160% above peak rating
|
|
Over temperature
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing(Waterproof)
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
UL, CE Mark(LVD, EMC), IP67
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
|
|
EMC Test Standards
|
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
|
|
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 110VAC, 220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
Compatible Light Type
12v 6amp power supply 72w is aluminum case design, universal input voltage, compatible with commercial lighting and resistential lighting like Modern Style Time display Mirror LED smart bathroom mirrors.
Related Products
|

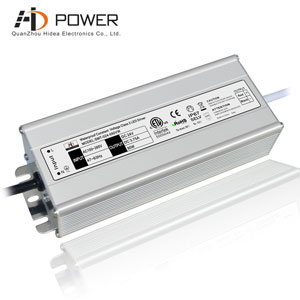

 24v 90w waterproof electronic led driver, ETL listed, high pfc 0.95, efficency 88%.
