ETL approved single output 360W 12V 30A switching power supply open frame smps
Description:
K18-UP400S series switching power supply is a highly reliable green open frame type power supply with 127*82*45mm miniature size;K18-UP400S series is equipped with complete protection functions;It got ETL certification and as a high price-to performance power supply solution for various industrial applications.
Features:
1, High efficiency 360W power supply, low temperature rise;
2, 360W 12VDC UPS built-in filters, low output noise;
3, 12V 30A switching wide range of AC input voltage;
4, This model have short circuit, overload, overvoltage protection;
5, Single output power supply,used in stage lighting and sound equipment.
| Parameter | ||||||
|
Item NO |
K18-UP400S12 | K18-UP400S24 | K18-UP400S36 | K18-UP400S48 | K18-UP400S60 | |
|
Output |
DC Output Voltage |
+12V | +24V | +36V | +48V | +60V |
| Output Rated Current | 30A | 16.7A | 11A | 8.3A | 6.7A | |
| Current Range（Natural Cooling ） | 0-25A | 0-12.5A | 0-8.3A | 0-6.3A | 0-5A | |
| Current Range（20CFM Fan） | 0-30A | 0-16.7A | 0-11A | 0-8.3A | 0-6.7A | |
| Rated Power（Natural Cooling） | 300W | 300W | 298.8W | 302.4W | 300W | |
|
Rated Power（20CFM Fan） |
360W | 400.8W | 396W | 398.4W | 402W | |
| Ripple & Niose | 240mVp-p |
240mVp-p |
360mVp-p |
480mVp-p |
600mVp-p |
|
| DC Adjustable range | 10.8~13.2V | 21.6~26.4V | 32.4~39.6V | 43.2~52.8V | 54~66V | |
| Voltage Tolerance | ±1% | |||||
| Line Regulation | ±0.5% | |||||
|
Load Regulation |
±0.5% | |||||
|
Set up,Rise,Keep up time |
500ms,50ms,20ms |
|||||
| Input | Voltage Range |
90-264V AC |
||||
| AC Current |
2.2A@220V AC |
|||||
| Input Frequency |
47-63Hz |
|||||
| Efficiency | 89% | 90% | 92% | 92% | 92% | |
| Power Factor |
＞0.99@110V;＞0.95@220V |
|||||
| Inrush Current |
Cold Start 15A/115V,30A/230V |
|||||
|
Leakage Current |
＜0.35mA@240V AC |
|||||
|
Protection |
Over Load Protection |
110~150% TYPE:Shut dowm Reset:Re-Power ON |
||||
| Over Voltage Protection | 15~18V | 28~33V | 42~46V | 55~60V | 70~80V | |
| Over Temp. Protection |
105℃. Protection type : Shut down o/p voltage, recovers automatically after temperature goes down |
|||||
| Function |
|
|
||||
|
Environment |
Working Temp., Humidity | -20~50℃，10~90% RH，No condensation | ||||
|
Storage Temp.,Humidity |
-20~85℃，10~95% RH | |||||
| Temp.,Drift | ±0.03%/℃(0~50℃) | |||||
|
Vibration |
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES | |||||
| Safety & EMC | Safety Standards | GB4943 EN60950-1:2006 | ||||
|
Withstand Voltage |
I/P-O/P:3KV AC; I/P-FG:1.5KV AC;O/P-FG:500V AC | |||||
| Insulation resistance |
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms |
|||||
| EMC Standards |
EN55103-1:2009 EN55013-2:2009，EN61000-3-2 |
|||||
|
Others |
Dimension |
127*82*45mm(L*W*H) |
||||
| Weight |
0.8KG |
|||||
| Notes |
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity; 2. Accuracy: includes set up tolerance, line regulation, load regulation and so on; 3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end; 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives;
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
|
|||||

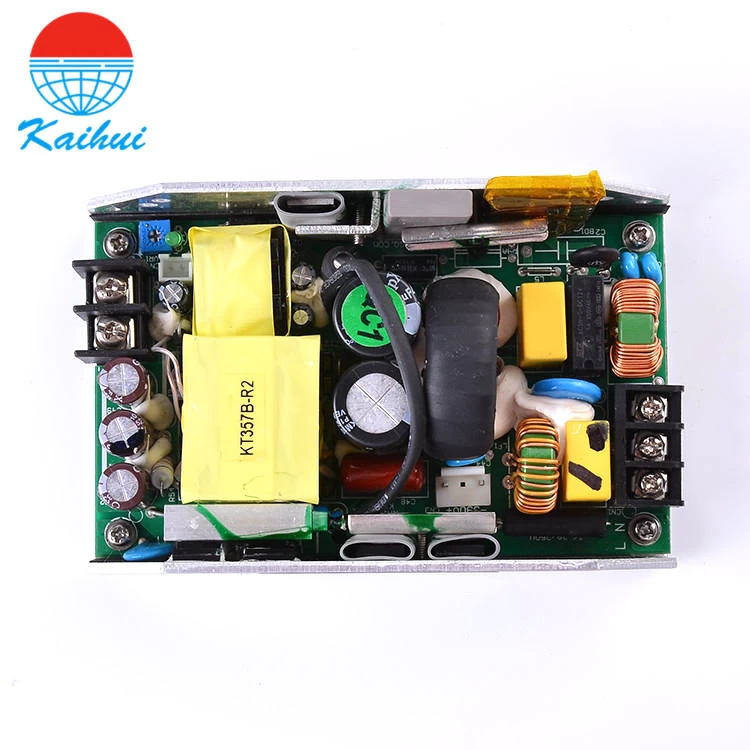

Product picture:
