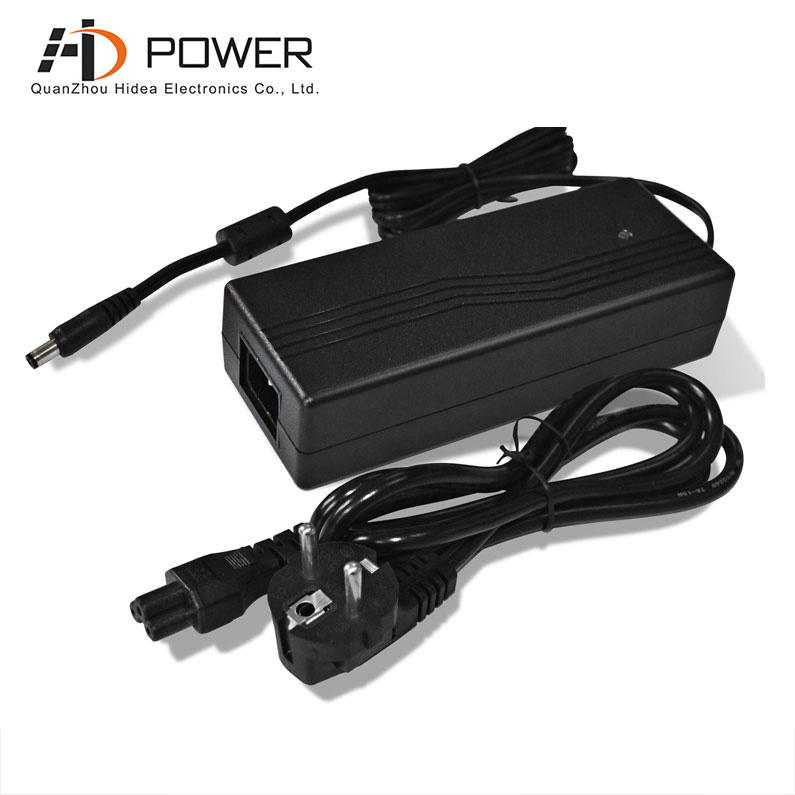

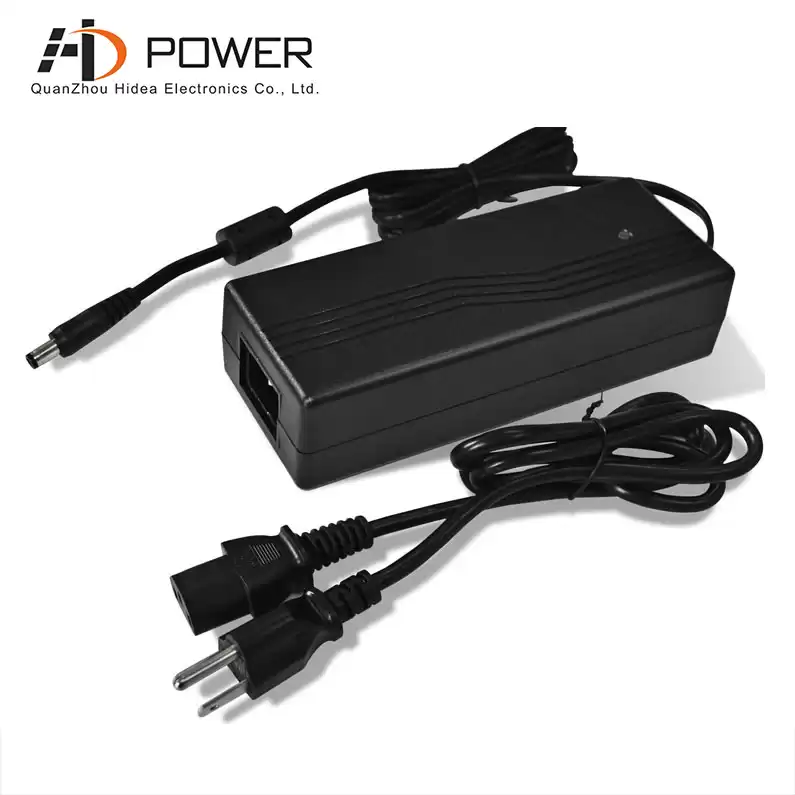

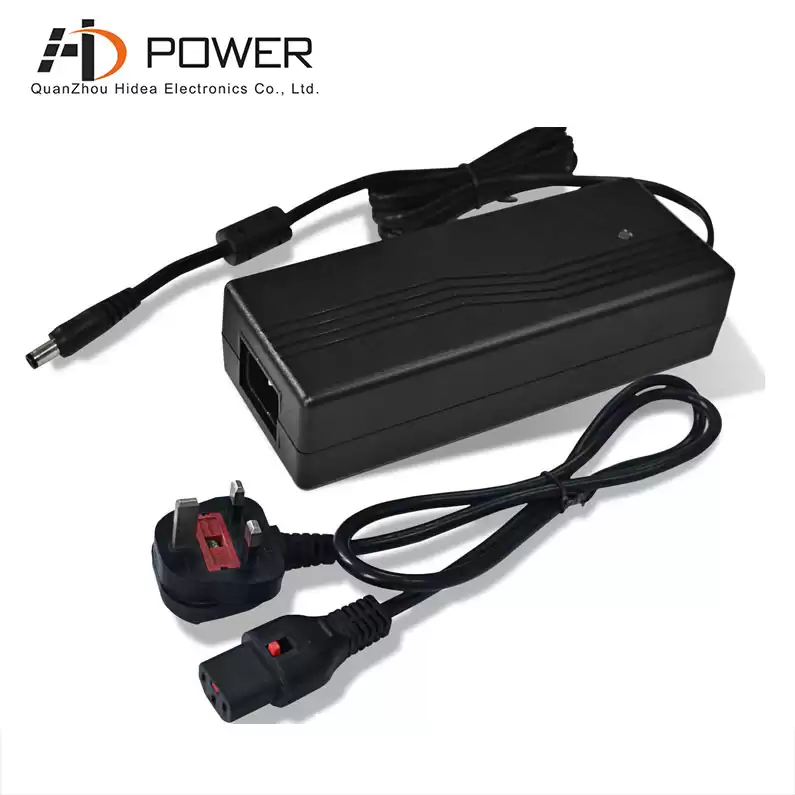

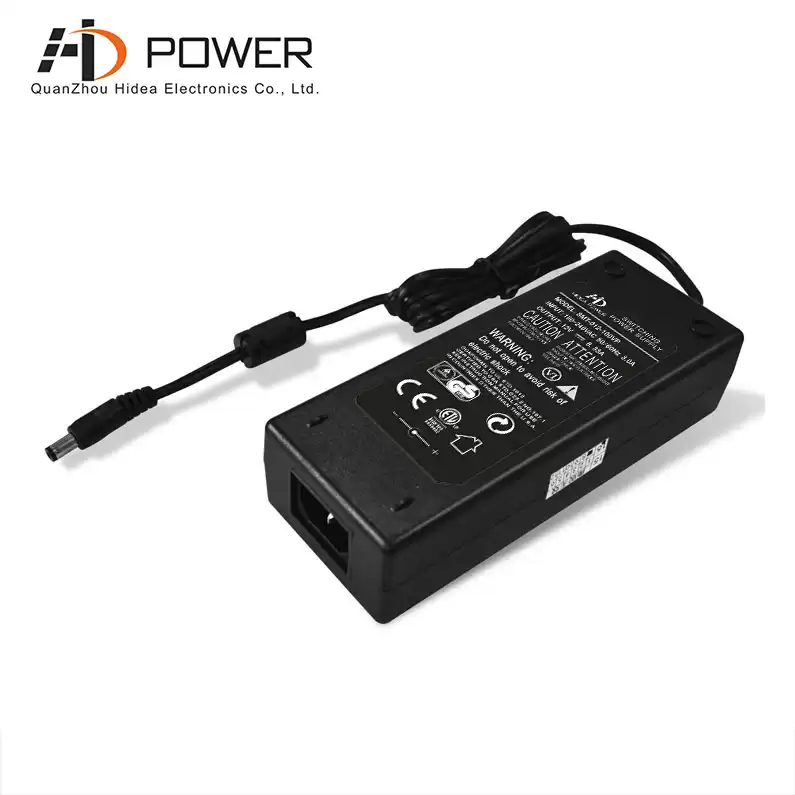

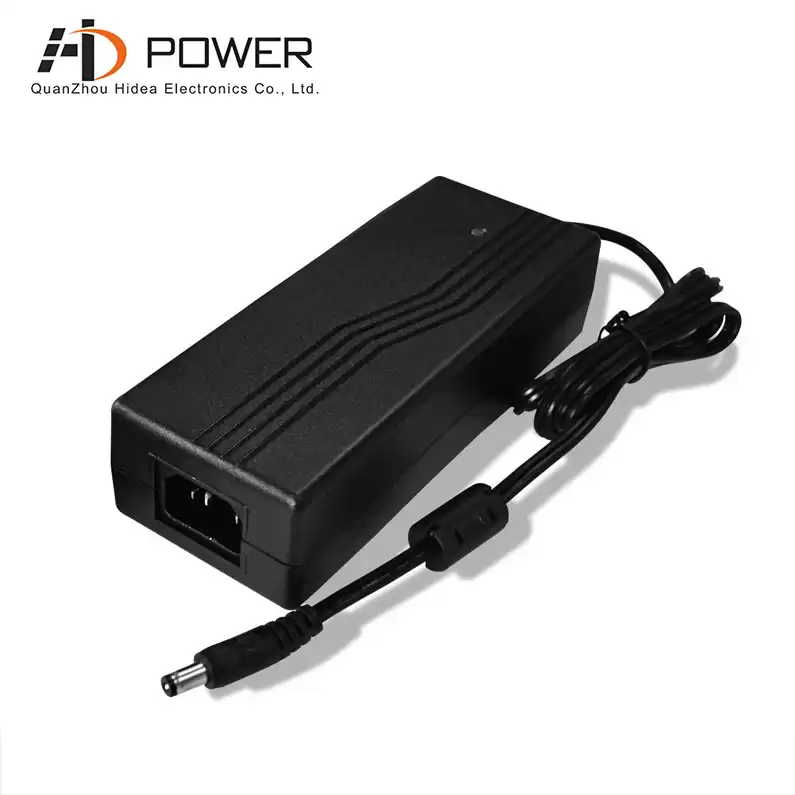

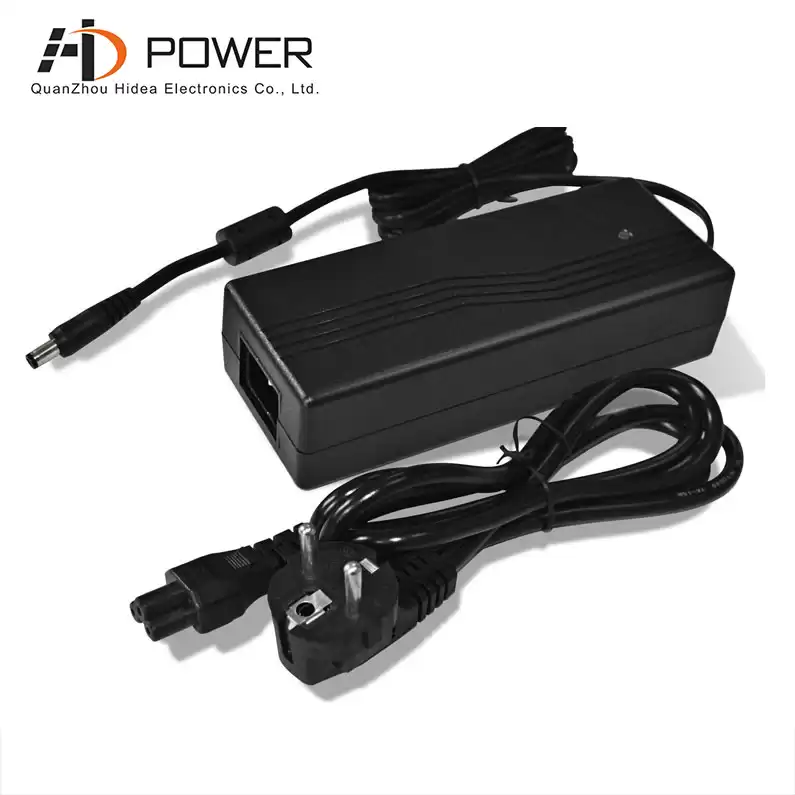

ETL CE 12v 90W led power supply light strip plug adapter factory
Hidea power 90W 12V desktop power adapter has passed ETL CE certification, the working mode is constant voltage and no dimming, mainly sold to North America and Europe
Specification
|
model
|
SMT-012-090VP
|
SMT-024-090VP
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
7.5A
|
3.75A
|
|
Load Regulation
|
±1%
|
|
Rated power
|
90W
|
90W
|
|
Input
|
Voltage Range
|
100-240V AC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
80%@120V, 80%@230V ,89%@277V
|
80%@120V,80%@230V
|
|
|
Full Load Efficiency(Typ.)
|
0.7
|
0.7
|
|
AC Current(Typ.)
|
500MA MAX.
|
|
Inrush Current (Typ.)
|
7A, 50%, 420us @120VAC;
|
|
Ripple
|
<200mV
|
|
Over temperature
|
90℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Loading
|
≤120% Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over voltage
|
≦265VAC
|
|
Environment
|
Working TEMP.
|
0~+40℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-20~+60℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL60950-1,EN60950-1,GB4943-2001
|
|
Withstand voltage
|
I/P-O/P:2KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Hi-Pot
|
AC3000Vrms/50Hz,5mA max
|
|
Others
|
Weight
|
About 0.40Kg
|
|
Size
|
152.5*60*35mm (L*W*H)
|
|
packing
|
48PCS/CTN (L*W*H)
|

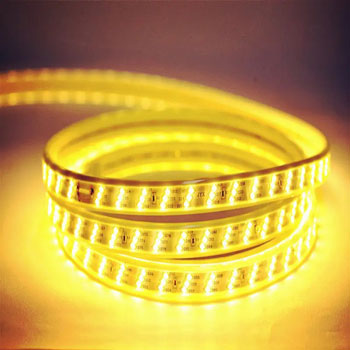

Compatible Light Type
Ip20 plastic enclosure switching power adapter 90W for monochrome led strips and some 12v devices, with North American European standard AC plug
Related Products
|

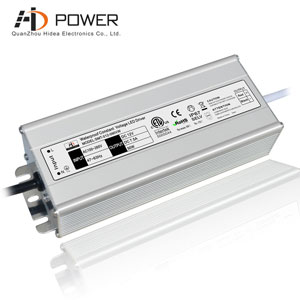

 SMT-012-090VW is a constant voltage non dimming
90W 12V led driver, mainly sold to Europe, waterproof
level ip67
Mode：SMT-012-090VW
Dimming Mode : Non-dimming
Output Power : 90w
intput voltage：100-265Vac
Size：180*69*43 MM （L*W*H）
|
