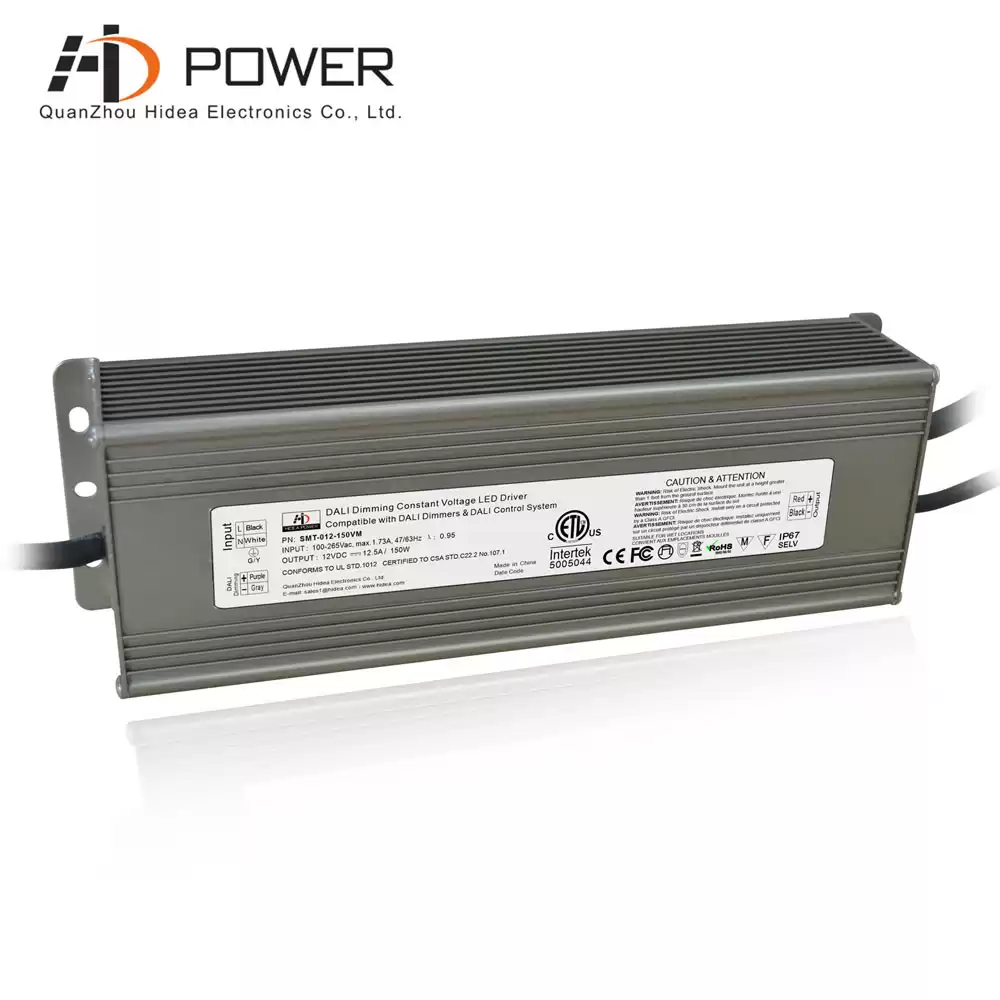

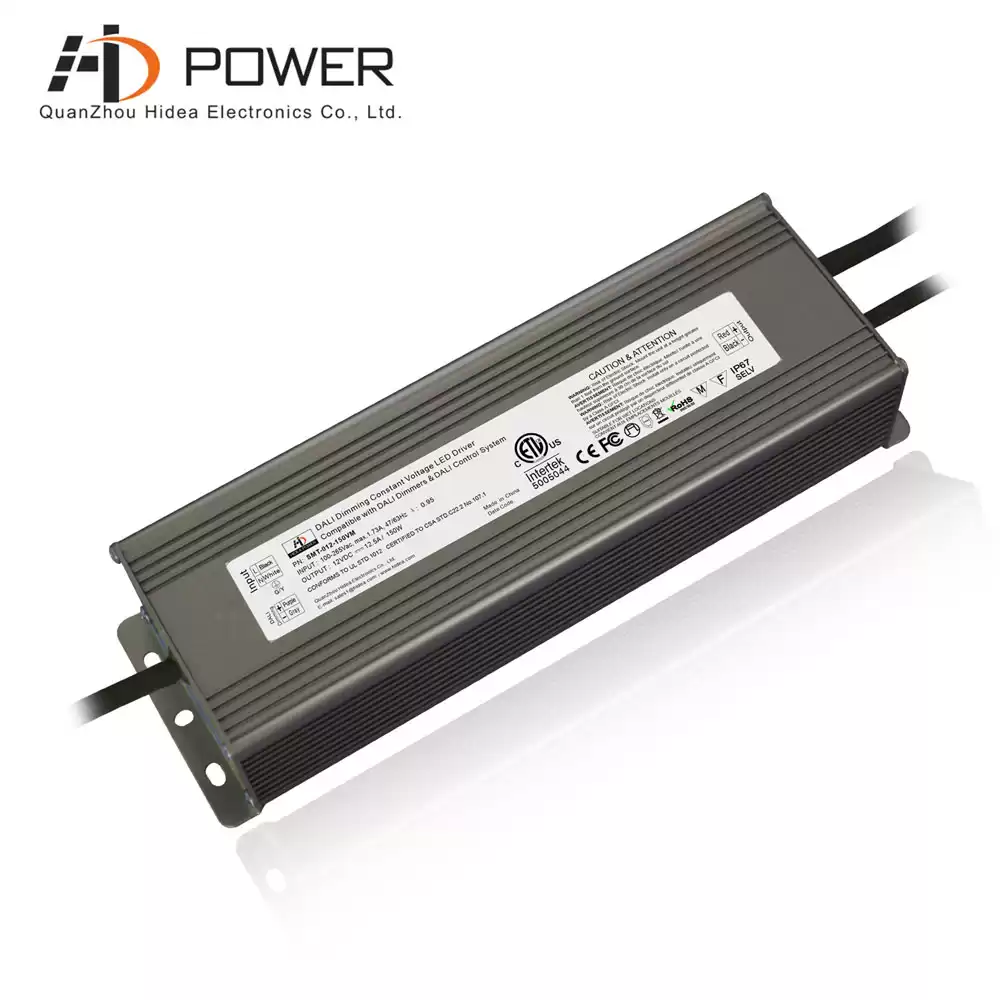

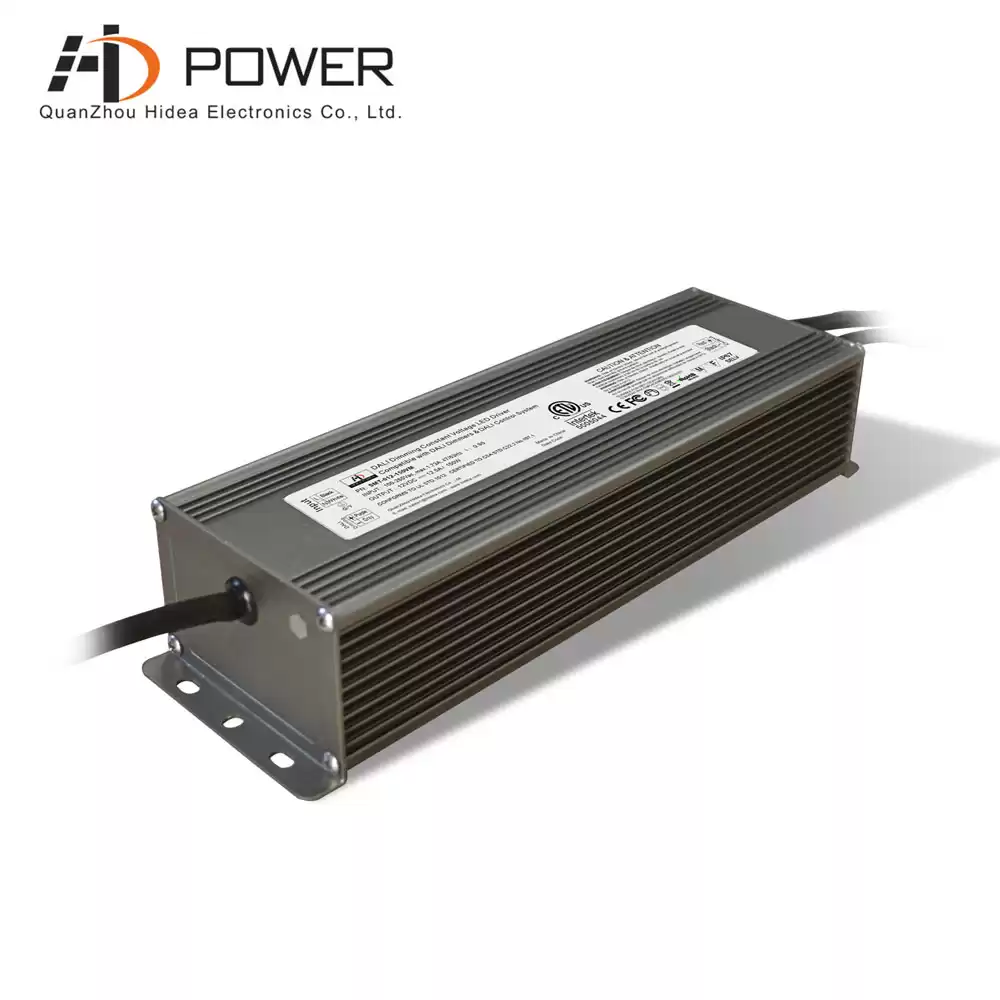

Smarts 150 watt led drivers can be attached with junction box for damp and dry locations in North American. Those Dali drivers are fully conform to ETL & CE that absolutely safe to use at 110VAC and 220VAC.
Specification
|
Model
|
SMT-012-150VM
|
SMT-024-150VM
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
0 - 12.5A
|
0 - 6.25A
|
|
Rated power
|
150W
|
150W
|
|
Input
|
Voltage Range
|
100-265VAC/10-130VAC/170-265VAC
|
|
Frequency Range
|
47 - 63HZ
|
|
Power Factor
|
PF≧0.98/120VAC PF≧0.98/230VAC PF≧0.95/265VAC(Full loading)
|
|
Full Load Efficiency(Typ.)
|
>89%
|
>90%
|
|
AC Current(Max.)
|
1.49A
|
1.47A
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Load
|
≤120%
|
|
Over Circuit
|
≤1.2*Iout
|
|
Protection Class:
|
Ⅰ
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40 - +60℃
|
|
Working Humidity
|
20 - 95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40 - +80℃,10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 - 50℃)
|
|
Vibration
|
10 - 500Hz, 5G 12min./1 cycle, period for 72min.each along X,Y,Z axes.
|
|
Safety & EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 IP66
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
|
|
EMC Emission
|
EN55015,EN61000-3-2 (≥60%load)
|
|
EMC Immunity
|
EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level (surge4KV)
|
|
Others
|
Weight
|
1.6Kg
|
|
Size
|
256*78*47mm(L*W*H)
|
|
packing
|
305*295*210mm/10pcs/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set us tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type

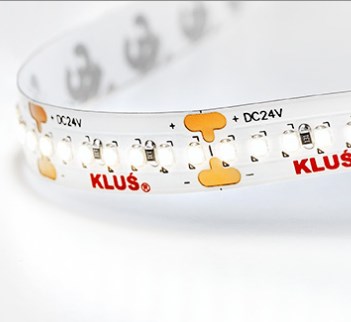

Except waterproof led power supply 150w, Smarts DALI drivers can power LED strip Lights with a range between 10w watts and 180 watts. The klusdesign LED strips is one of your best choice.
Related Products
|
 This is the led driver 150w wiith same look like Dali led driver 150W but operates in PWM 0 10V dimming mode.
Acheived ETL approval, and has 5 years warranty.
Mode：SMT-012-150VD
Dimming Mode : 0-10V Dimming
Output Power : 150W
intput voltage：100~265V AC
Size：256*78*47MM （L*W*H）
|
